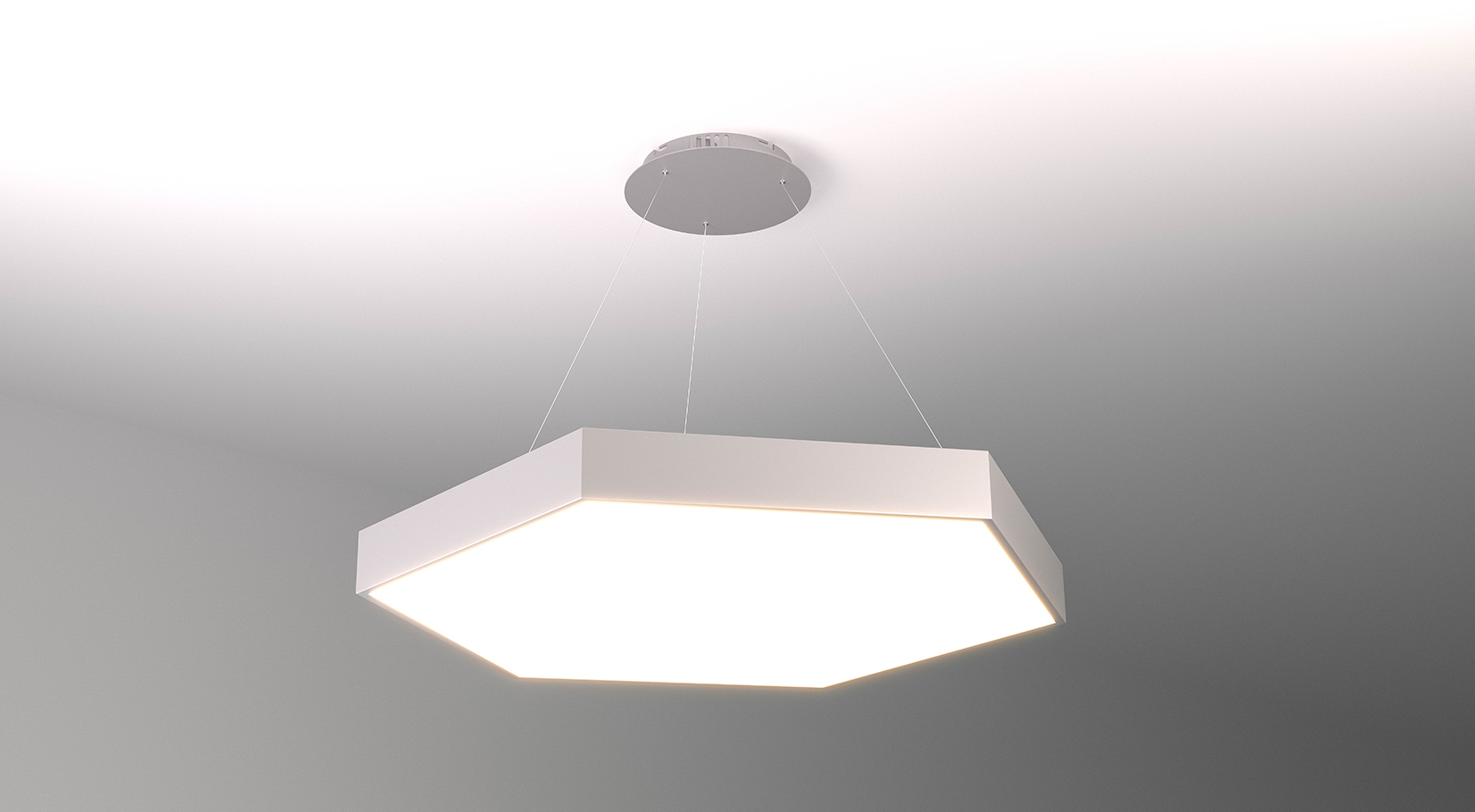

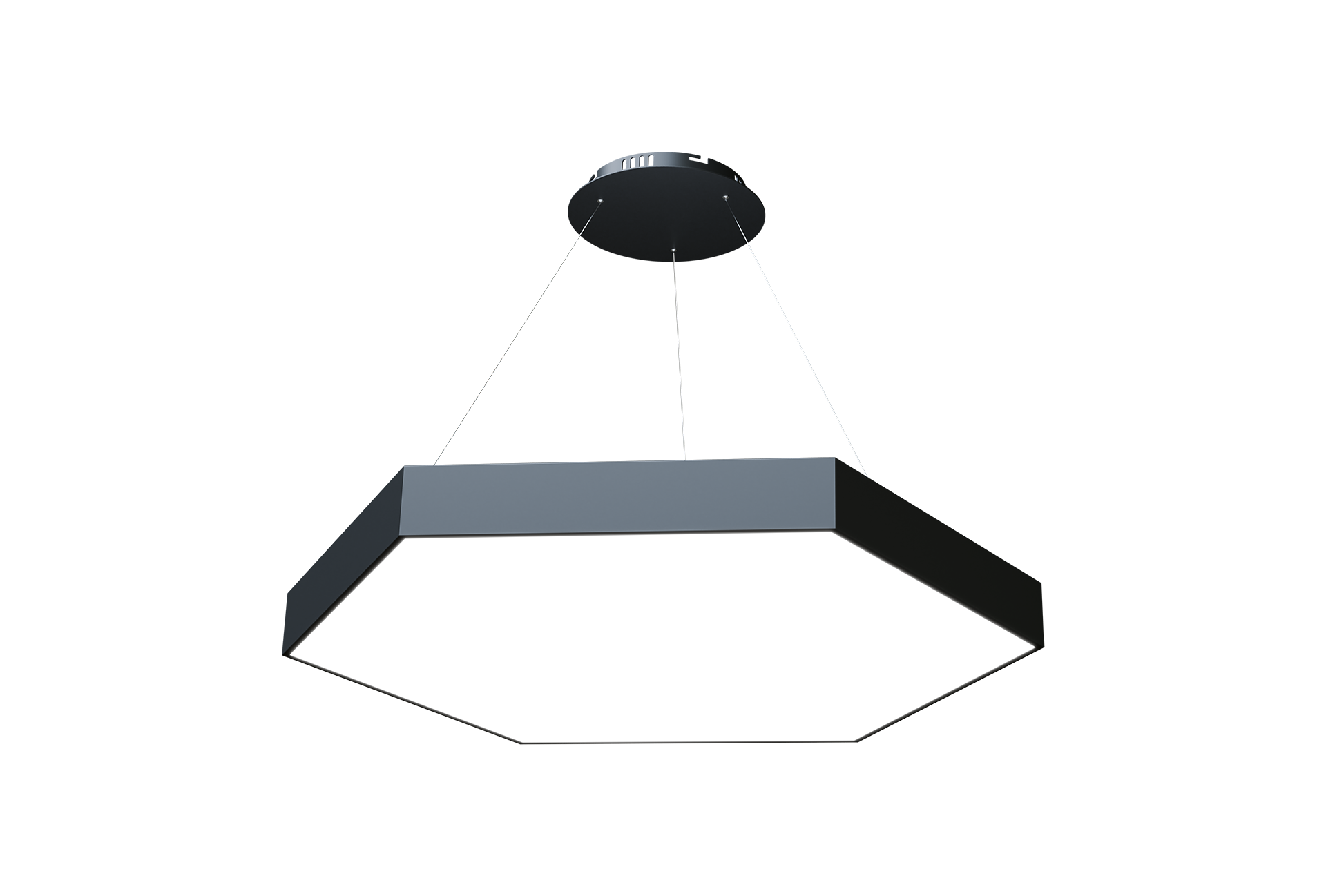

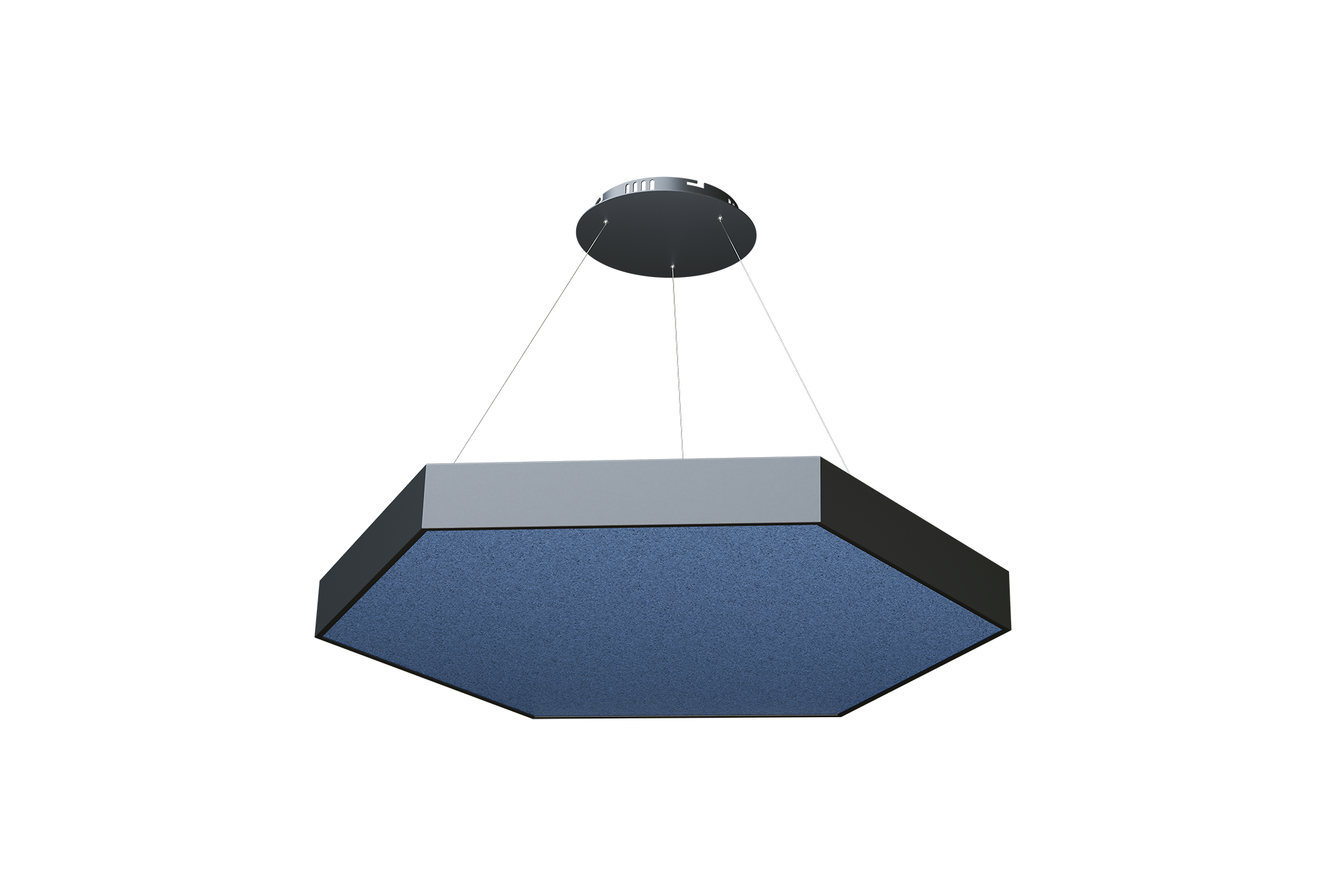

TechoLED-ACOUSTIC-SERIES-ASHP.pdfThe TechoLED Acoustic Series provides an elegant and effective solution for reducing noise and reverberation in large, open spaces. Our luminaires are crafted from high-quality, rigid, acoustically rated materials, ensuring an easy-to-specify and install integrated solution. With a wide range og sizes, form factors and finishes – form standard colors to faux wood – we offer an acoustic solution to complement every modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W available, 90CRI
Optical: Direct, Indirect and Direct/Indirect ilumination, 115° Beam angle
Construction: High grade aluminum extrusion, acoustic rated material, PMMA diffuser, acoustic material available in multiple colors/finishes
| MODEL | Diameter | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-ASHP-D-18-LO-30 | 18.9"x16.4" | Low | 3000K | 20W | 1700Lm |
| TECHOLED-ASHP-D-18-ME-30 | 18.9"x16.4" | Medium | 3000K | 25W | 2125Lm |
| TECHOLED-ASHP-D-18-HI-30 | 18.9"x16.4" | High | 3000K | 40W | 3400Lm |
| TECHOLED-ASHP-D-23-LO-30 | 23.6"x20.5" | Low | 3000K | 25W | 2125Lm |
| TECHOLED-ASHP-D-23-ME-30 | 23.6"x20.5" | Medium | 3000K | 40W | 3400Lm |
| TECHOLED-ASHP-D-23-HI-30 | 23.6"x20.5" | High | 3000K | 60W | 5100Lm |
| TECHOLED-ASHP-D-35-LO-30 | 35.4"x30.7" | Low | 3000K | 60W | 5100Lm |
| TECHOLED-ASHP-D-35-ME-30 | 35.4"x30.7" | Medium | 3000K | 90W | 7650Lm |
| TECHOLED-ASHP-D-35-HI-30 | 35.4"x30.7" | High | 3000K | 120W | 10200Lm |
| TECHOLED-ASHP-D-47-LO-30 | 47.2"x40.9" | Low | 3000K | 120W | 10200Lm |
| TECHOLED-ASHP-D-47-ME-30 | 47.2"x40.9" | Medium | 3000K | 180W | 15300Lm |
| TECHOLED-ASHP-D-47-HI-30 | 47.2"x40.9" | High | 3000K | 240W | 20400Lm |
| MODEL | Diameter | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-ASHP-DI-18-LO-30 | 18.9"x16.4" | Low | 3000K | 40W | 2380Lm | 1020Lm |
| TECHOLED-ASHP-DI-18-ME-30 | 18.9"x16.4" | Medium | 3000K | 50W | 2975Lm | 1275Lm |
| TECHOLED-ASHP-DI-18-HI-30 | 18.9"x16.4" | High | 3000K | 80W | 4760Lm | 2040Lm |
| TECHOLED-ASHP-DI-23-LO-30 | 23.6"x20.5" | Low | 3000K | 50W | 2975Lm | 1275Lm |
| TECHOLED-ASHP-DI-23-ME-30 | 23.6"x20.5" | Medium | 3000K | 80W | 4760Lm | 2040Lm |
| TECHOLED-ASHP-DI-23-HI-30 | 23.6"x20.5" | High | 3000K | 120W | 7140Lm | 3060Lm |
| TECHOLED-ASHP-DI-35-LO-30 | 35.4"x30.7" | Low | 3000K | 80W | 4760Lm | 2040Lm |
| TECHOLED-ASHP-DI-35-ME-30 | 35.4"x30.7" | Medium | 3000K | 120W | 7140Lm | 3060Lm |
| TECHOLED-ASHP-DI-35-HI-30 | 35.4"x30.7" | High | 3000K | 180W | 10710Lm | 4590Lm |
| TECHOLED-ASHP-DI-47-LO-30 | 47.2"x40.9" | Low | 3000K | 180W | 10710Lm | 4590Lm |
| TECHOLED-ASHP-DI-47-ME-30 | 47.2"x40.9" | Medium | 3000K | 220W | 13090Lm | 5610Lm |
| TECHOLED-ASHP-DI-47-HI-30 | 47.2"x40.9" | High | 3000K | 240W | 14280Lm | 6120Lm |
| MODEL | Diameter | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-ASHP-ID-18-LO-30 | 18.9"x16.4" | Low | 3000K | 20W | 1700Lm |
| TECHOLED-ASHP-ID-18-ME-30 | 18.9"x16.4" | Medium | 3000K | 25W | 2125Lm |
| TECHOLED-ASHP-ID-18-HI-30 | 18.9"x16.4" | High | 3000K | 40W | 3400Lm |
| TECHOLED-ASHP-ID-23-LO-30 | 23.6"x20.5" | Low | 3000K | 25W | 2125Lm |
| TECHOLED-ASHP-ID-23-ME-30 | 23.6"x20.5" | Medium | 3000K | 40W | 3400Lm |
| TECHOLED-ASHP-ID-23-HI-30 | 23.6"x20.5" | High | 3000K | 60W | 5100Lm |
| TECHOLED-ASHP-ID-35-LO-30 | 35.4"x30.7" | Low | 3000K | 60W | 5100Lm |
| TECHOLED-ASHP-ID-35-ME-30 | 35.4"x30.7" | Medium | 3000K | 90W | 7650Lm |
| TECHOLED-ASHP-ID-35-HI-30 | 35.4"x30.7" | High | 3000K | 120W | 10200Lm |
| TECHOLED-ASHP-ID-47-LO-30 | 47.2"x40.9" | Low | 3000K | 120W | 10200Lm |
| TECHOLED-ASHP-ID-47-ME-30 | 47.2"x40.9" | Medium | 3000K | 180W | 15300Lm |
| TECHOLED-ASHP-ID-47-HI-30 | 47.2"x40.9" | High | 3000K | 240W | 20400Lm |
