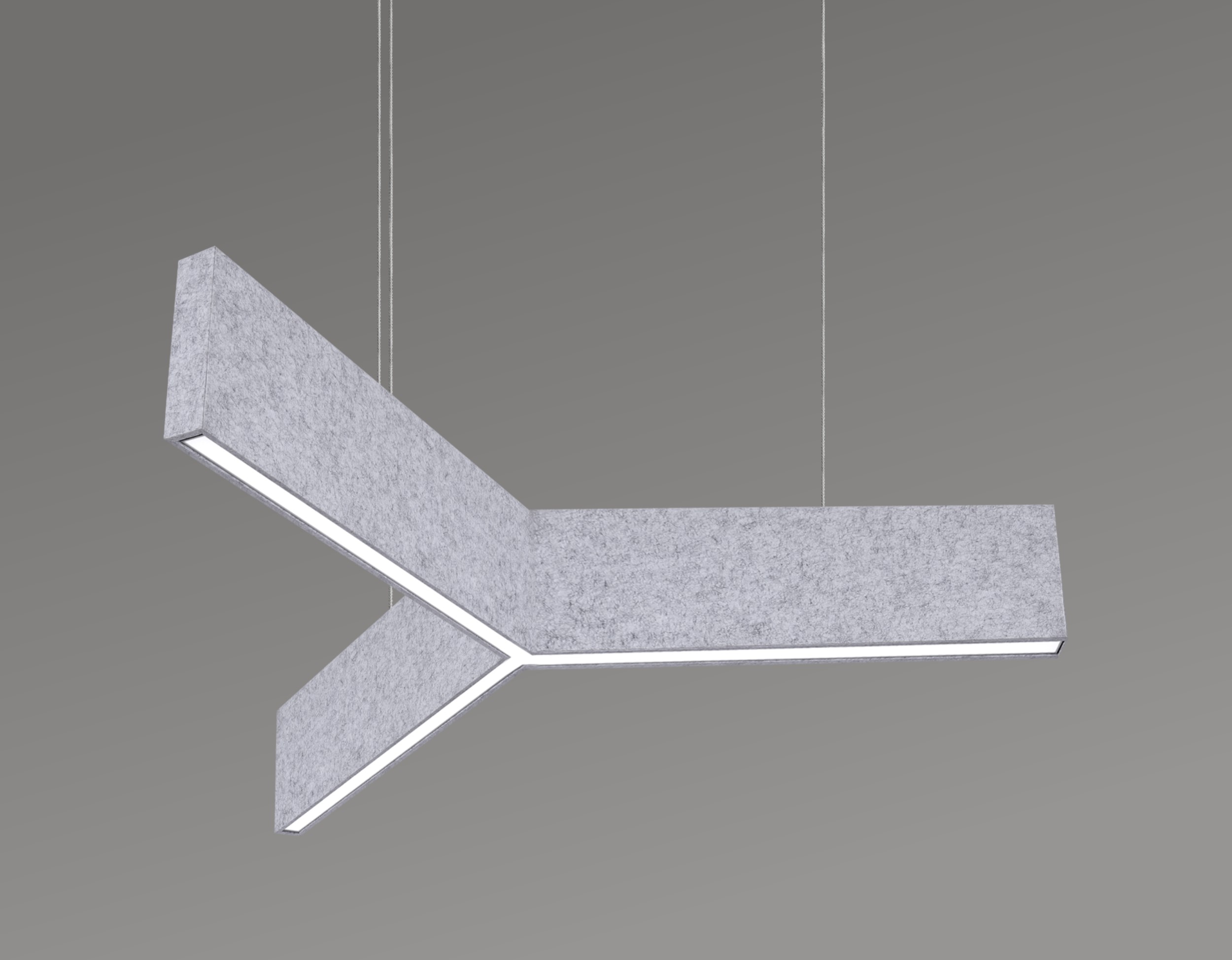

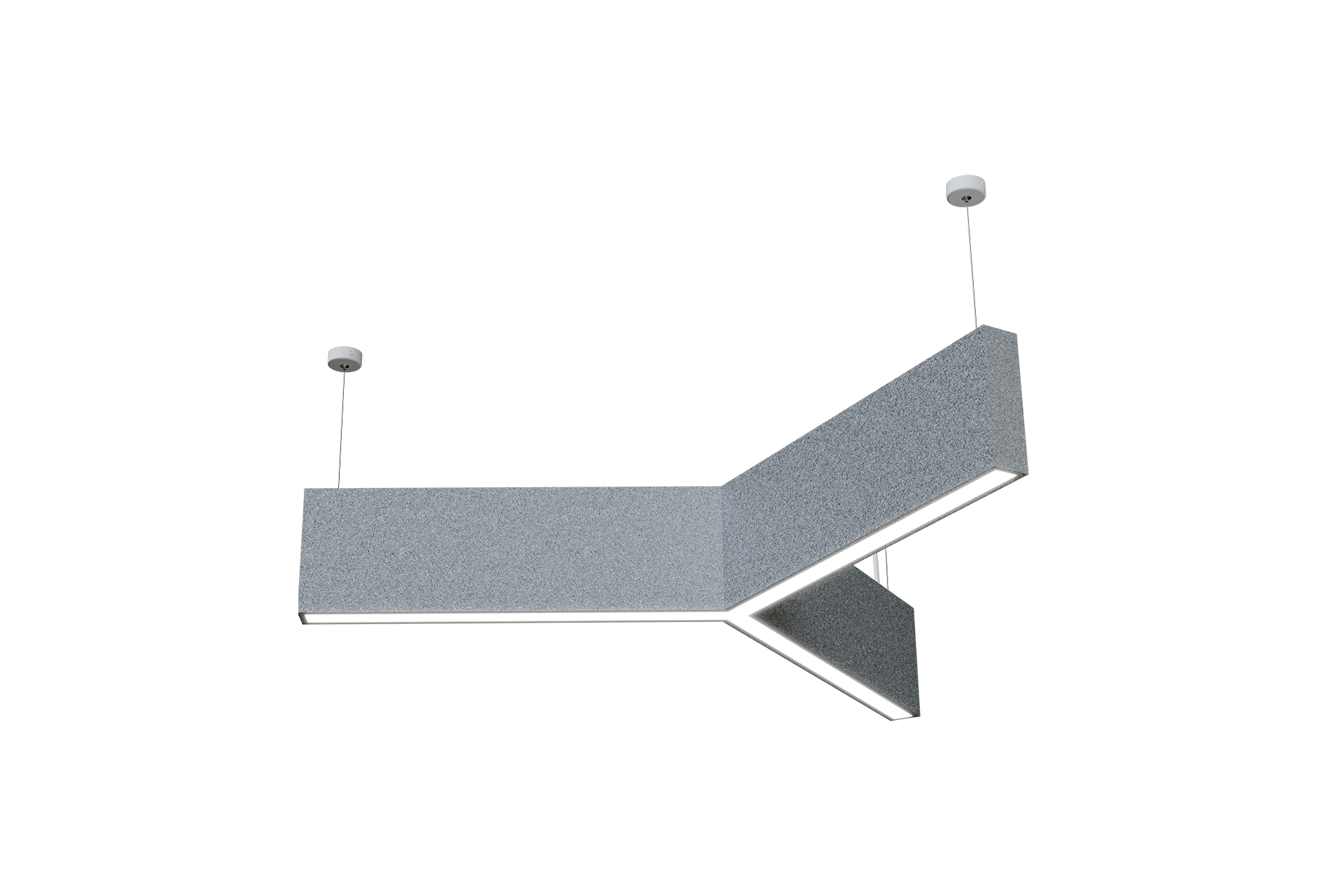

ACOUSTIC SERIES - ASY
The TechoLED Acoustic Series provides an elegant and effective solution for reducing noise and reverberation in large, open spaces. Our luminaires are crafted from high-quality, rigid, acoustically rated materials, ensuring an easy-to-specify and install integrated solution. With a wide range of sizes, form factors, and finishes – from standard colors to faux wood – we offer an acoustic solution to complement every modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W, 90CRI
Optical: Direct & direct/indirect illumination, 115° Beam Angle
Construction: Rigid acoustic material structure, aluminum extrusion mounted inside, PMMA diffuser, acoustic material available in multiple colors/finishes
| MODEL | Size | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-ASY-D-22-LO-30 | 22.2"x19.7" | Low | 3000K | 25W | 2625Lm |
| TECHOLED-ASY-D-22-ME-30 | 22.2"x19.7" | Medium | 3000K | 40W | 4200Lm |
| TECHOLED-ASY-D-22-HI-30 | 22.2"x19.7" | High | 3000K | 60W | 6300Lm |
| TECHOLED-ASY-D-42-LO-30 | 42.6"x37.9" | Low | 3000K | 50W | 5250Lm |
| TECHOLED-ASY-D-42-ME-30 | 42.6"x37.9" | Medium | 3000K | 80W | 8400Lm |
| TECHOLED-ASY-D-42-HI-30 | 42.6"x37.9" | High | 3000K | 120W | 12600Lm |
| TECHOLED-ASY-D-63-LO-30 | 63"x56.1" | Low | 3000K | 90W | 9450Lm |
| TECHOLED-ASY-D-63-ME-30 | 63"x56.1" | Medium | 3000K | 120W | 12600Lm |
| TECHOLED-ASY-D-63-HI-30 | 63"x56.1" | High | 3000K | 180W | 18900Lm |
| MODEL | Size | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-ASY-DI-22-LO-30 | 22.2"x19.7" | Low | 3000K | 30W | 2205Lm | 945Lm |
| TECHOLED-ASY-DI-22-ME-30 | 22.2"x19.7" | Medium | 3000K | 50W | 3675Lm | 1575Lm |
| TECHOLED-ASY-DI-22-HI-30 | 22.2"x19.7" | High | 3000K | 80W | 5880Lm | 2520Lm |
| TECHOLED-ASY-DI-42-LO-30 | 42.6"x37.9" | Low | 3000K | 60W | 4410Lm | 1890Lm |
| TECHOLED-ASY-DI-42-ME-30 | 42.6"x37.9" | Medium | 3000K | 100W | 7350Lm | 3150Lm |
| TECHOLED-ASY-DI-42-HI-30 | 42.6"x37.9" | High | 3000K | 150W | 11025Lm | 4725Lm |
| TECHOLED-ASY-DI-63-LO-30 | 63"x56.1" | Low | 3000K | 90W | 6615Lm | 2835Lm |
| TECHOLED-ASY-DI-63-ME-30 | 63"x56.1" | Medium | 3000K | 140W | 10290Lm | 4410Lm |
| TECHOLED-ASY-DI-63-HI-30 | 63"x56.1" | High | 3000K | 180W | 13230Lm | 5670Lm |
