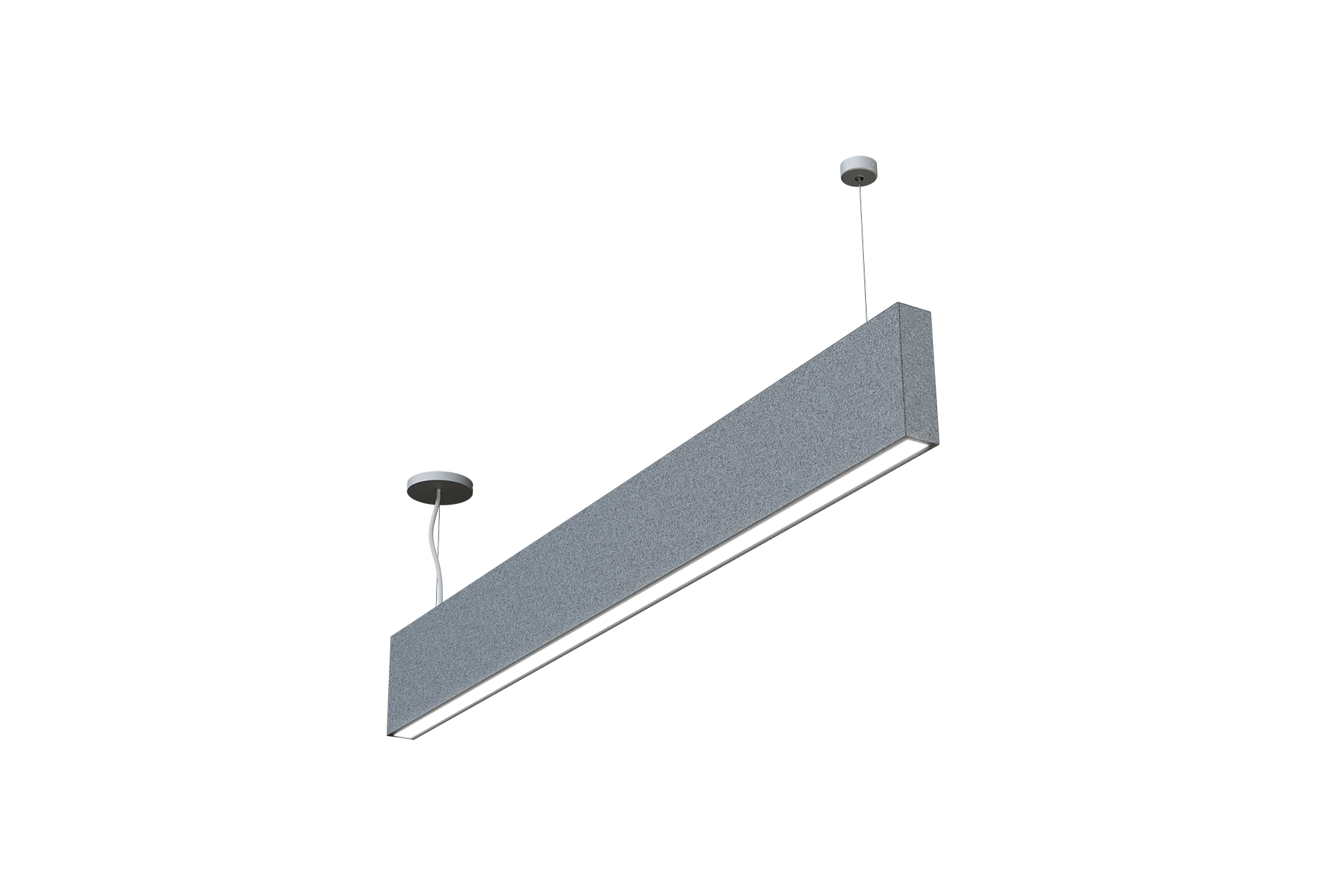

ACOUSTIC SERIES - ASL
Download
IES files
TECHOLED-ASL.zipCut sheets
TechoLED-ACOUSTIC-SERIES-ASL.pdfRevit file(s)

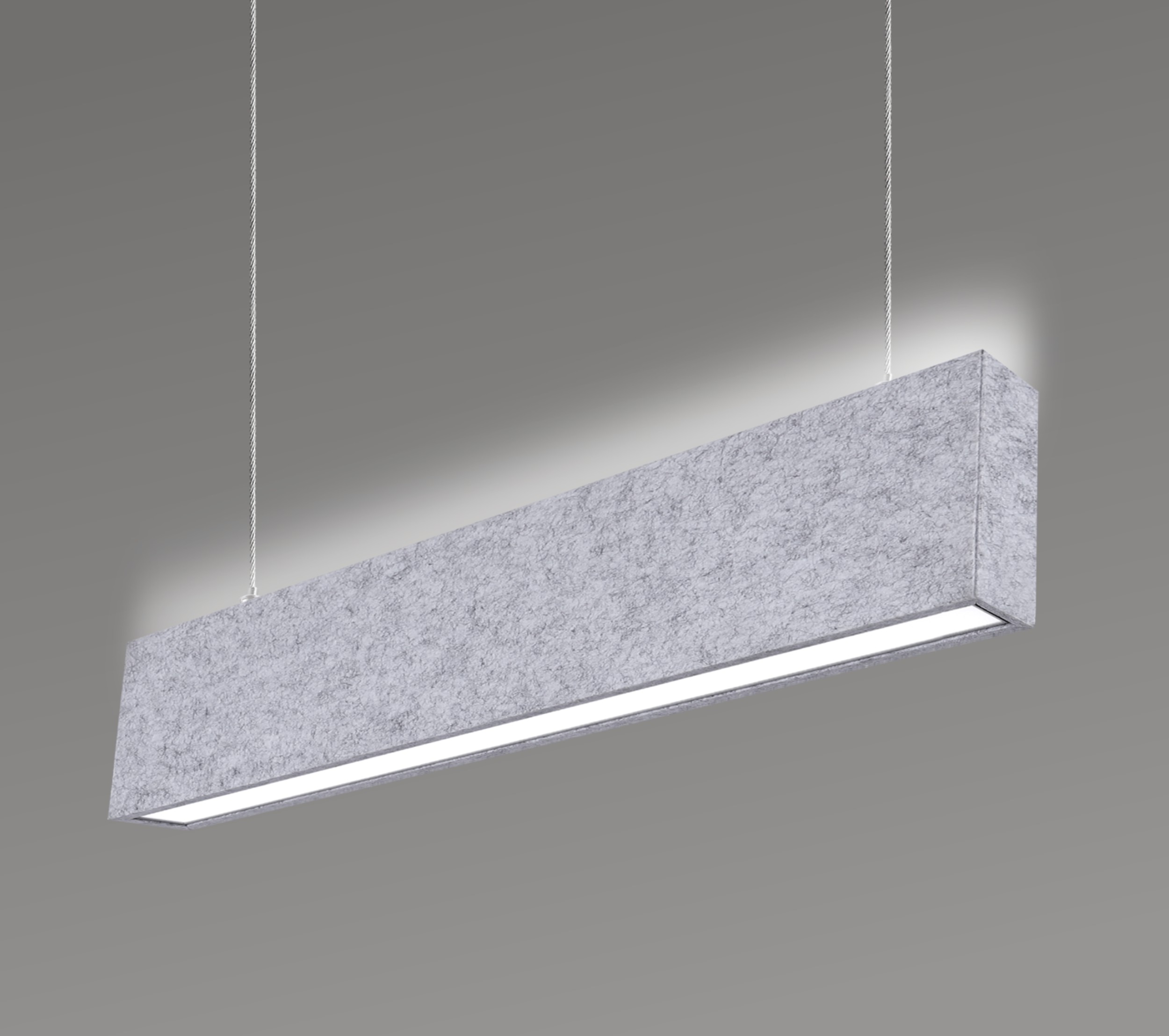

ACOUSTIC SERIES - ASL.rfaThe TechoLED Acoustic Series provides an elegant and effective solution for reducing noise and reverberation in large, open spaces. Our luminaires are crafted from high-quality, rigid, acoustically rated materials, ensuring an easy-to-specify and install integrated solution. With a wide range of sizes, form factors, and finishes – from standard colors to faux wood – we offer an acoustic solution to complement every modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W, 90CRI
Optical: Direct & Direct/Indirect illumination, 115° Beam Angle
Construction: Rigid acoustic material structure, aluminum extrusion mounted inside, PMMA diffuser, acoustic material available in multiple colors/finishes
| MODEL | Size | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-ASL-D-7-LO-30 | 7.4"x47.2" | Low | 3000K | 25W | 2625Lm |
| TECHOLED-ASL-D-7-ME-30 | 7.4"x47.2" | Medium | 3000K | 40W | 4200Lm |
| TECHOLED-ASL-D-7-HI-30 | 7.4"x47.2" | High | 3000K | 60W | 6300Lm |
| TECHOLED-ASL-D-11-LO-30 | 11.4"x47.2" | Low | 3000K | 25W | 2625Lm |
| TECHOLED-ASL-D-11-ME-30 | 11.4"x47.2" | Medium | 3000K | 40W | 4200Lm |
| TECHOLED-ASL-D-11-HI-30 | 11.4"x47.2" | High | 3000K | 60W | 6300Lm |
| TECHOLED-ASL-D-15-LO-30 | 15.3"x47.2" | Low | 3000K | 25W | 2625Lm |
| TECHOLED-ASL-D-15-ME-30 | 15.3"x47.2" | Medium | 3000K | 40W | 4200Lm |
| TECHOLED-ASL-D-15-HI-30 | 15.3"x47.2" | High | 3000K | 60W | 6300Lm |
| MODEL | Size | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Out |
|---|---|---|---|---|---|---|
| TECHOLED-ASL-DI-7-LO-30 | 7.4"x47.2" | Low | 3000K | 30W | 2268Lm | 882Lm |
| TECHOLED-ASL-DI-7-ME-30 | 7.4"x47.2" | Medium | 3000K | 50W | 3780Lm | 1470Lm |
| TECHOLED-ASL-DI-7-HI-30 | 7.4"x47.2" | High | 3000K | 80W | 6048Lm | 2352Lm |
| TECHOLED-ASL-DI-11-LO-30 | 11.4"x47.2" | Low | 3000K | 30W | 2268Lm | 882Lm |
| TECHOLED-ASL-DI-11-ME-30 | 11.4"x47.2" | Medium | 3000K | 50W | 3780Lm | 1470Lm |
| TECHOLED-ASL-DI-11-HI-30 | 11.4"x47.2" | High | 3000K | 80W | 6048Lm | 2352Lm |
| TECHOLED-ASL-DI-15-LO-30 | 15.3"x47.2" | Low | 3000K | 30W | 2268Lm | 882Lm |
| TECHOLED-ASL-DI-15-ME-30 | 15.3"x47.2" | Medium | 3000K | 50W | 3780Lm | 1470Lm |
| TECHOLED-ASL-DI-15-HI-30 | 15.3"x47.2" | High | 3000K | 80W | 6048Lm | 2352Lm |
