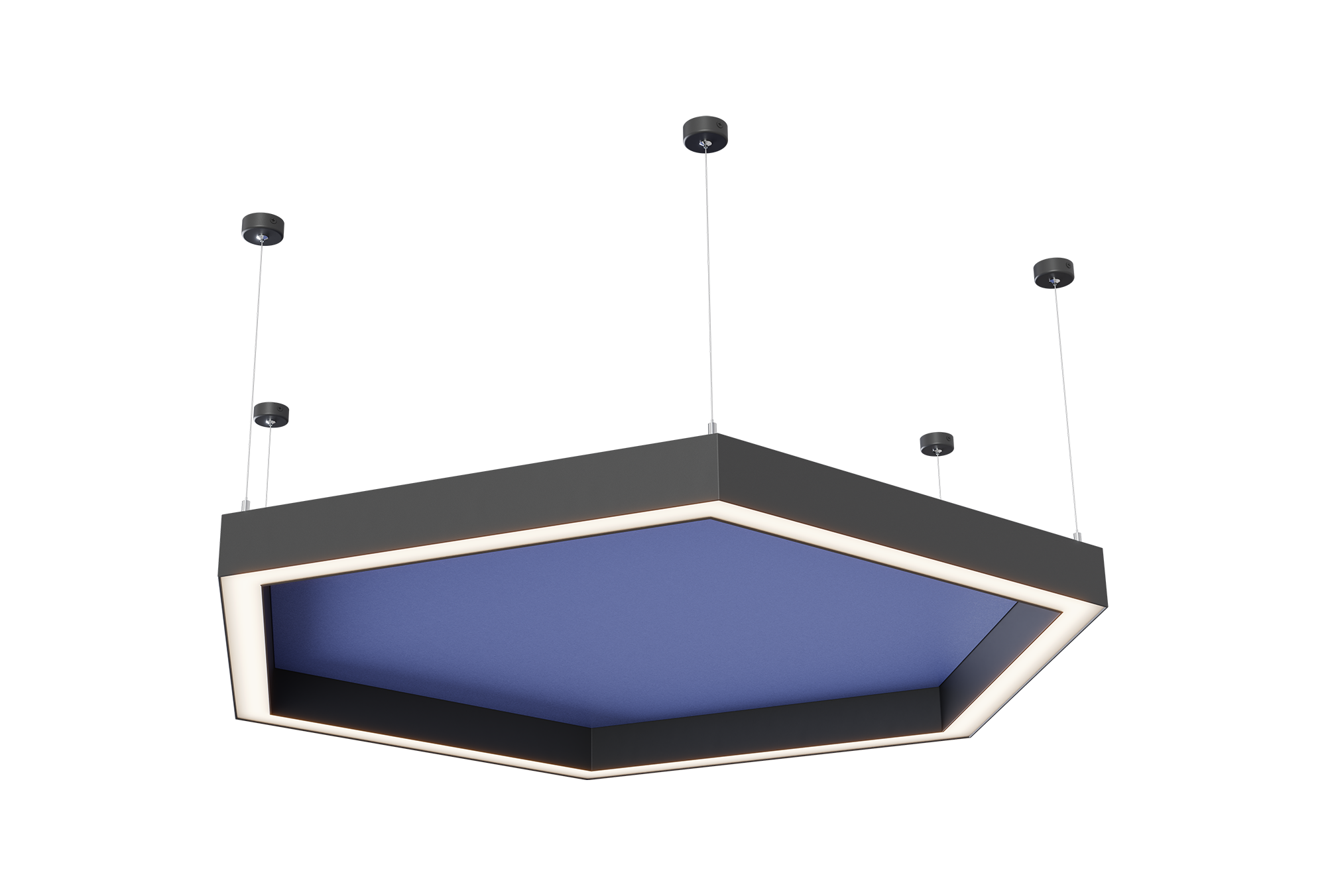

Acoustic Series - ASH
ACOUSTIC SERIES - ASH
Download
IES files
TECHOLED-ASH.zipCut sheets
TechoLED-ACOUSTIC-SERIES-ASH.pdfRevit file(s)

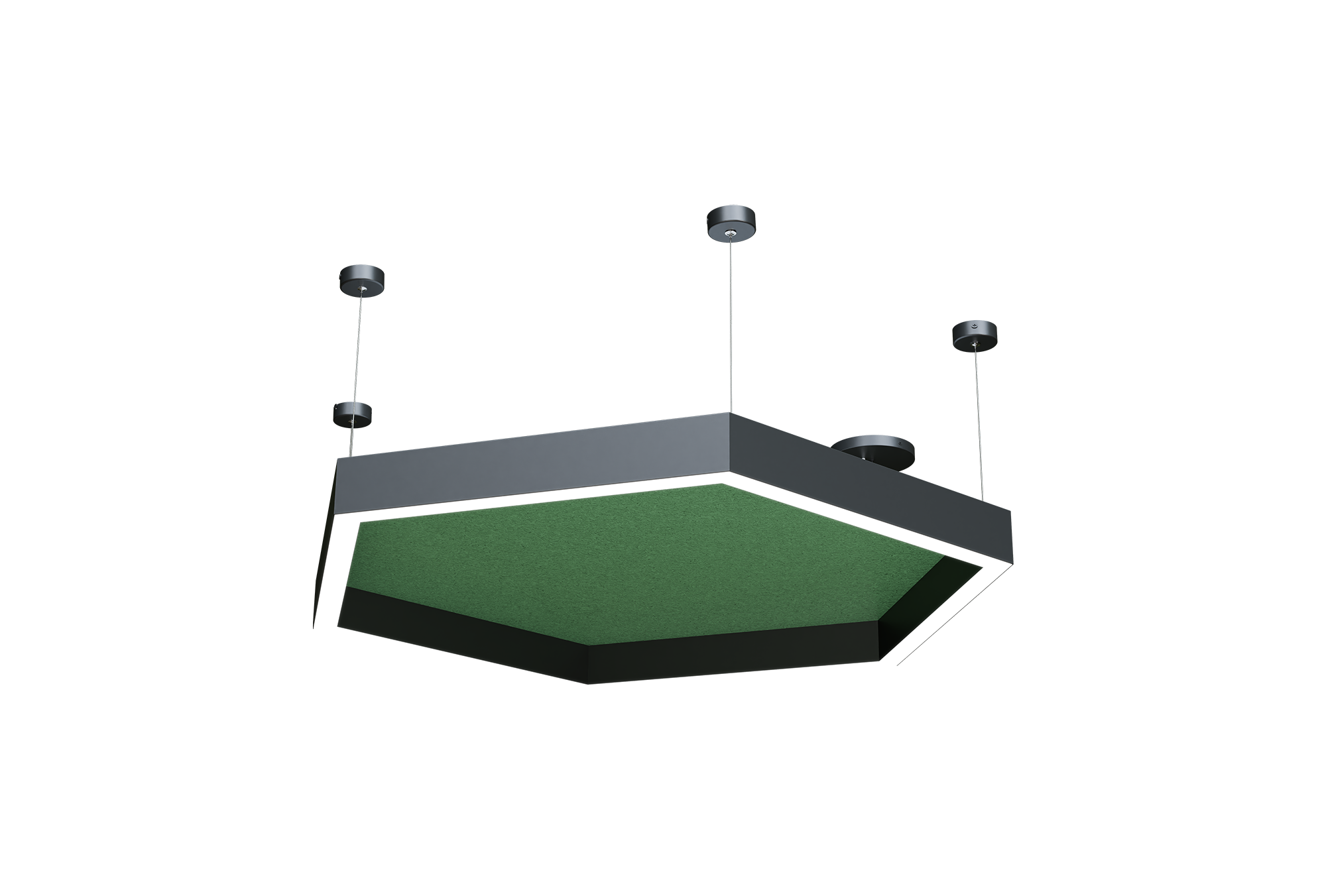

ACOUSTIC SERIES - ASH.rfaThe TechoLED Acoustic Series provides an elegant and effective solution for reducing noise and reverberation in large, open spaces. Our luminaires are crafted from high-quality, rigid, acoustically rated materials, ensuring an easy-to-specify and install integrated solution. With a wide range of sizes, form factors, and finishes – from standard colors to faux wood – we offer an acoustic solution to complement every modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W, 90CRI
Optical: Direct illumination, 115° Beam Angle
Construction: High grade aluminum extrusion, acoustic rated material, PMMA diffuser, acoustic material available in multiple colors/finishes
| MODEL | Diameter | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-ASH-D-18-LO-30 | 18.9"x16.4" | Low | 3000K | 20W | 2100Lm |
| TECHOLED-ASH-D-18-ME-30 | 18.9"x16.4" | Medium | 3000K | 25W | 2625Lm |
| TECHOLED-ASH-D-18-HI-30 | 18.9"x16.4" | High | 3000K | 40W | 4200Lm |
| TECHOLED-ASH-D-23-LO-30 | 23.6"x20.5" | Low | 3000K | 25W | 2625Lm |
| TECHOLED-ASH-D-23-ME-30 | 23.6"x20.5" | Medium | 3000K | 40W | 4200Lm |
| TECHOLED-ASH-D-23-HI-30 | 23.6"x20.5" | High | 3000K | 60W | 6300Lm |
| TECHOLED-ASH-D-35-LO-30 | 35.4"x30.7" | Low | 3000K | 60W | 6300Lm |
| TECHOLED-ASH-D-35-ME-30 | 35.4"x30.7" | Medium | 3000K | 90W | 9450Lm |
| TECHOLED-ASH-D-35-HI-30 | 35.4"x30.7" | High | 3000K | 120W | 12600Lm |
| TECHOLED-ASH-D-47-LO-30 | 47.2"x40.9" | Low | 3000K | 120W | 12600Lm |
| TECHOLED-ASH-D-47-ME-30 | 47.2"x40.9" | Medium | 3000K | 180W | 18900Lm |
| TECHOLED-ASH-D-47-HI-30 | 47.2"x40.9" | High | 3000K | 240W | 25200Lm |
