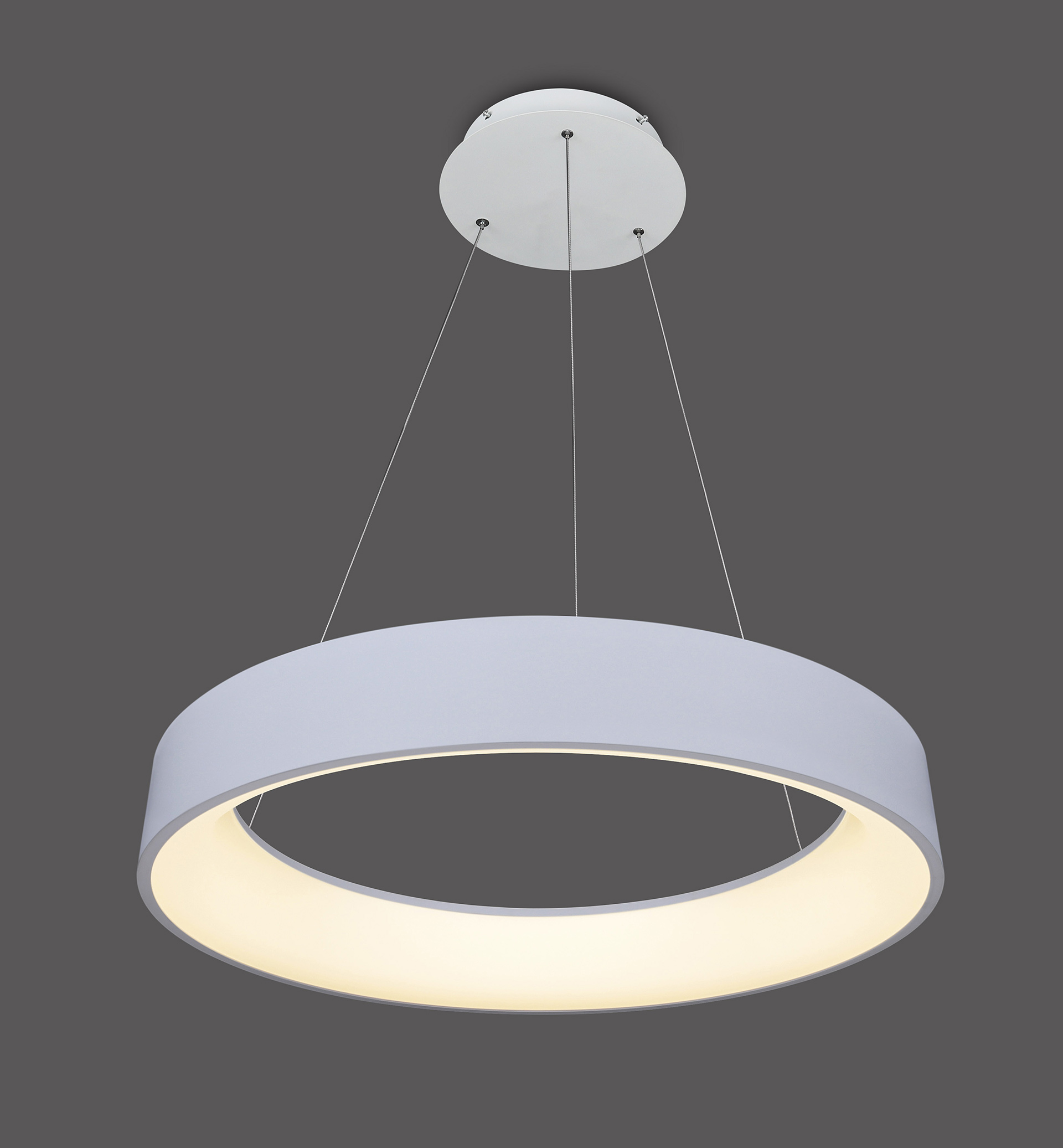

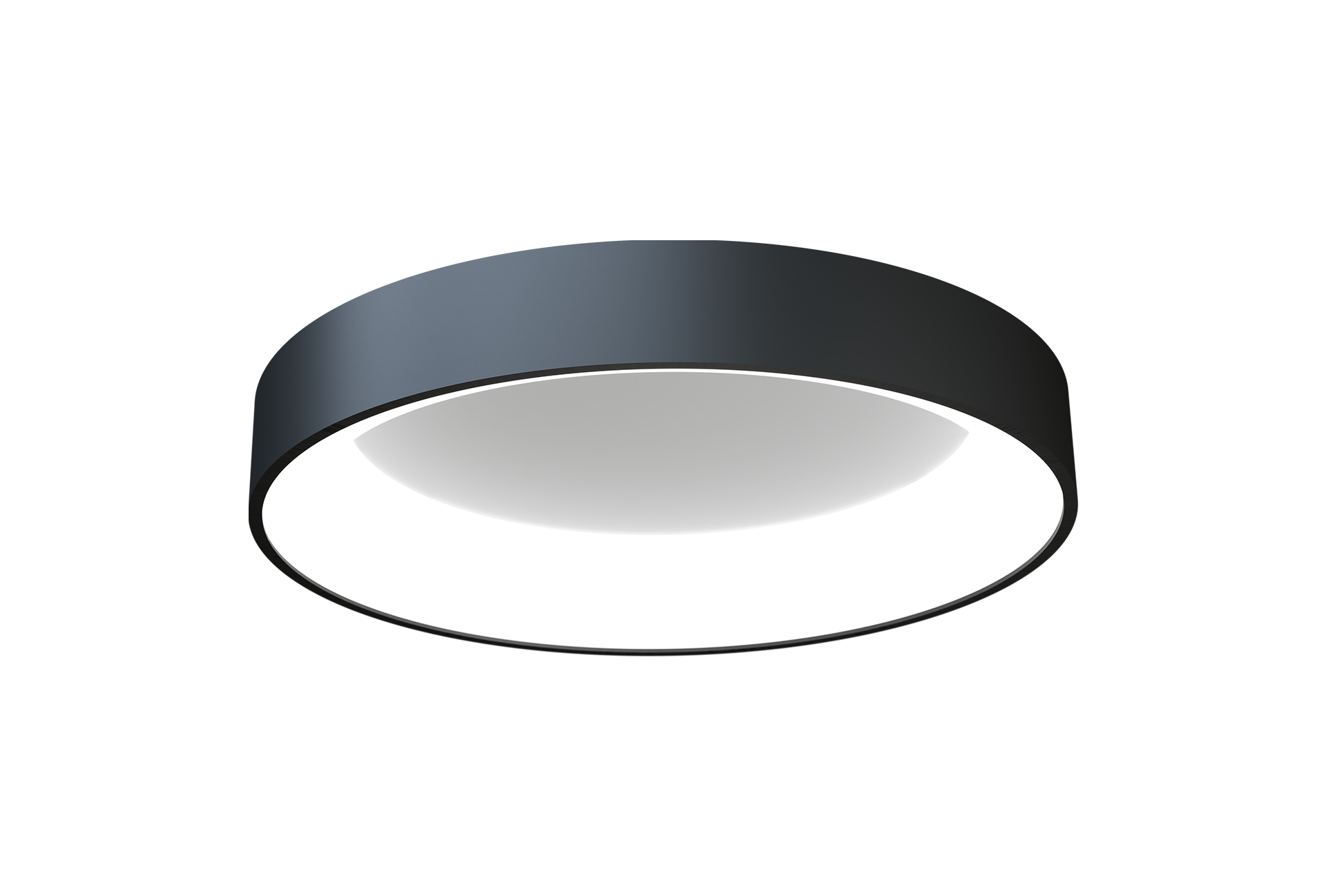

ACOUSTIC SERIES - ASC
Download
IES files
TECHOLED-ASC.zipCut sheets
TechoLED-ACOUSTIC-SERIES-ASC.pdfRevit file(s)
ACOUSTIC SERIES - ASC.rfaThe TechoLED Acoustic Series provides an elegant and effective solution for reducing noise and reverberation in large, open spaces. Our luminaires are crafted from high-quality, rigid, acoustically rated materials, ensuring an easyto-specify and install integrated solution. With a wide range of sizes, form factors, and finishes – from standard colors to faux wood – we offer an acoustic solution to complement every modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W, 90CRI
Optical: Direct illumination, 152° Beam Angle
Construction: High grade aluminum extrusion, acoustic rated material, curved PC diffuser, acoustic material available in multiple colors/finishes
| MODEL | Diameter | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-ASC-D-14-LO-30 | 14.2" | Low | 3000K | 12W | 1020Lm |
| TECHOLED-ASC-D-14-ME-30 | 14.2" | Medium | 3000K | 15W | 1275Lm |
| TECHOLED-ASC-D-14-HI-30 | 14.2" | High | 3000K | 20W | 1700Lm |
| TECHOLED-ASC-D-17-LO-30 | 17.7" | Low | 3000K | 20W | 1700Lm |
| TECHOLED-ASC-D-17-ME-30 | 17.7" | Medium | 3000K | 25W | 2125Lm |
| TECHOLED-ASC-D-17-HI-30 | 17.7" | High | 3000K | 30W | 2550Lm |
| TECHOLED-ASC-D-23-LO-30 | 23.6" | Low | 3000K | 25W | 2125Lm |
| TECHOLED-ASC-D-23-ME-30 | 23.6" | Medium | 3000K | 36W | 3060Lm |
| TECHOLED-ASC-D-23-HI-30 | 23.6" | High | 3000K | 50W | 4250Lm |
| TECHOLED-ASC-D-31-LO-30 | 31.5" | Low | 3000K | 40W | 3400Lm |
| TECHOLED-ASC-D-31-ME-30 | 31.5" | Medium | 3000K | 50W | 4250Lm |
| TECHOLED-ASC-D-31-HI-30 | 31.5" | High | 3000K | 60W | 5100Lm |
