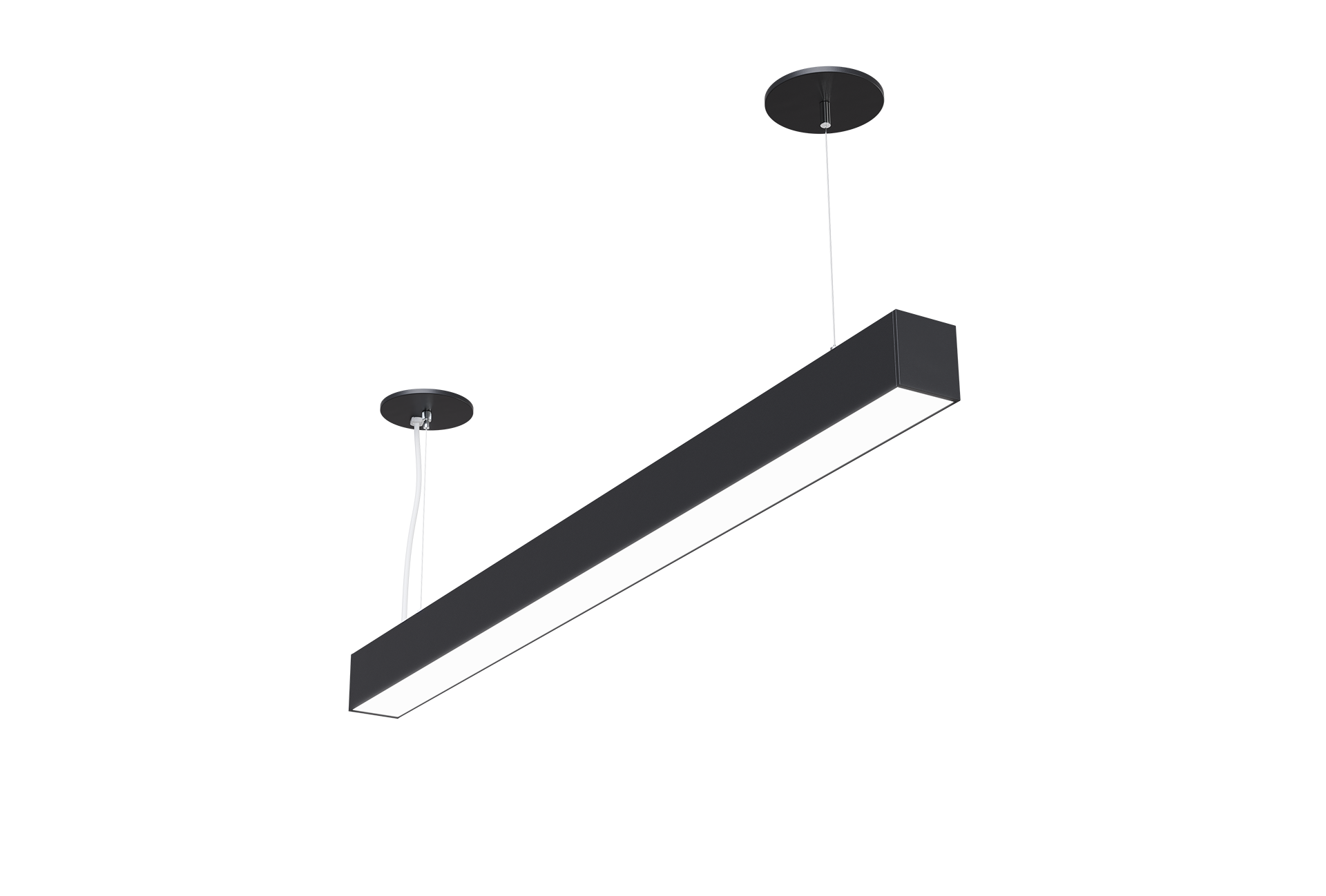

BX 3 Series
BX-3 SERIES
Download

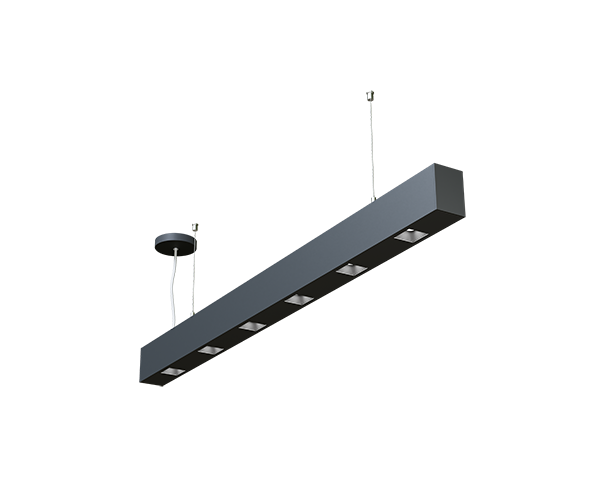

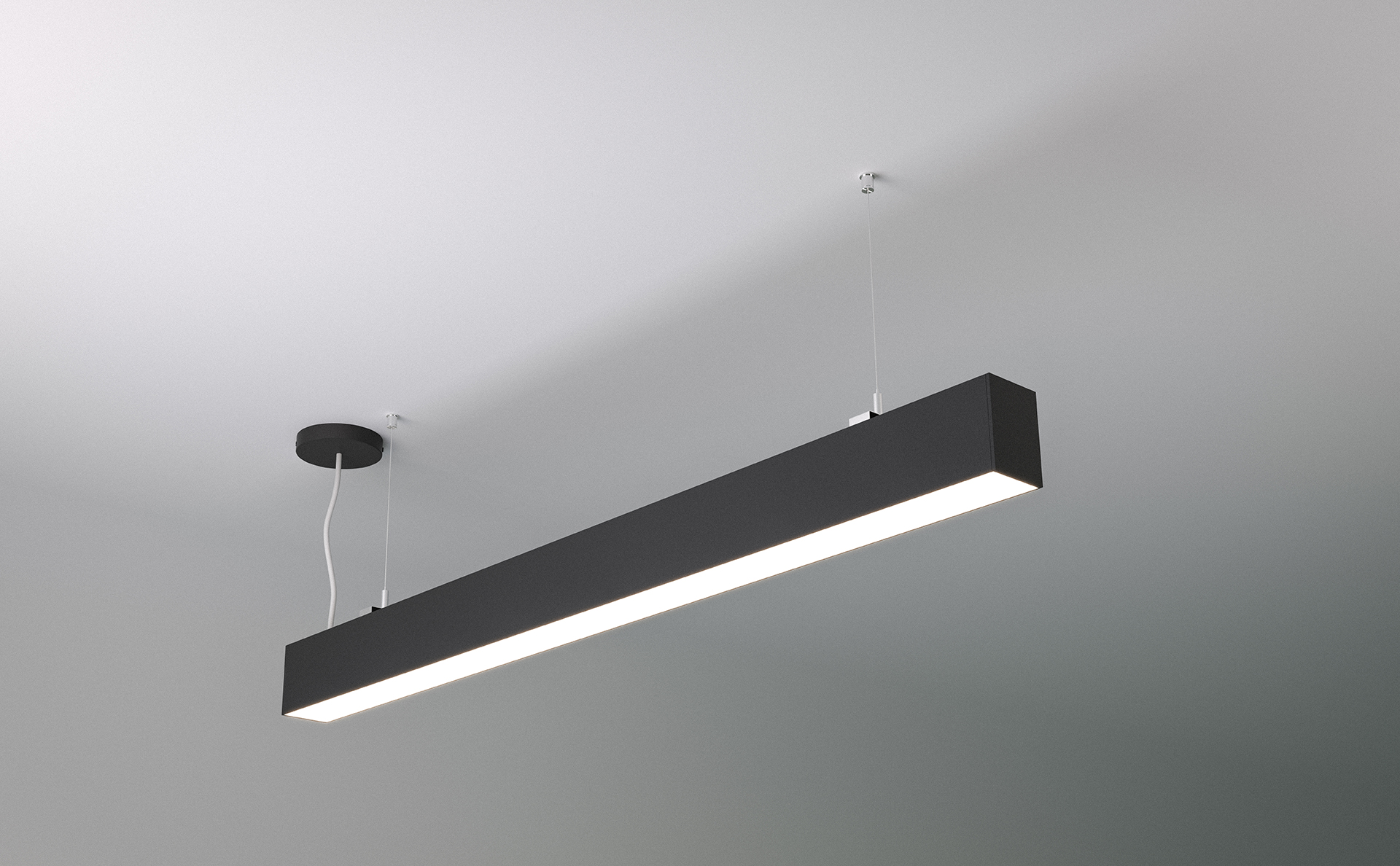

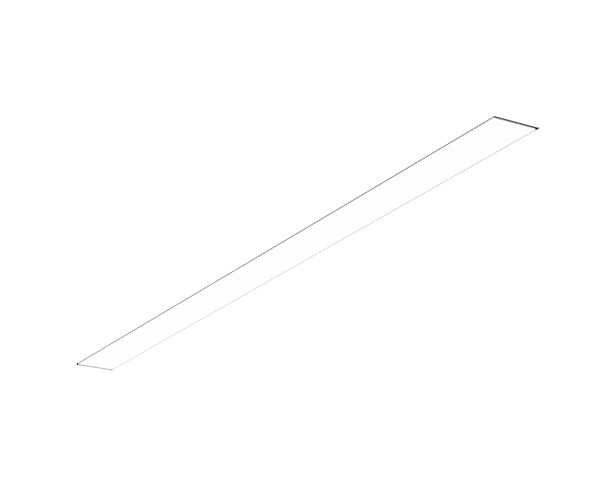

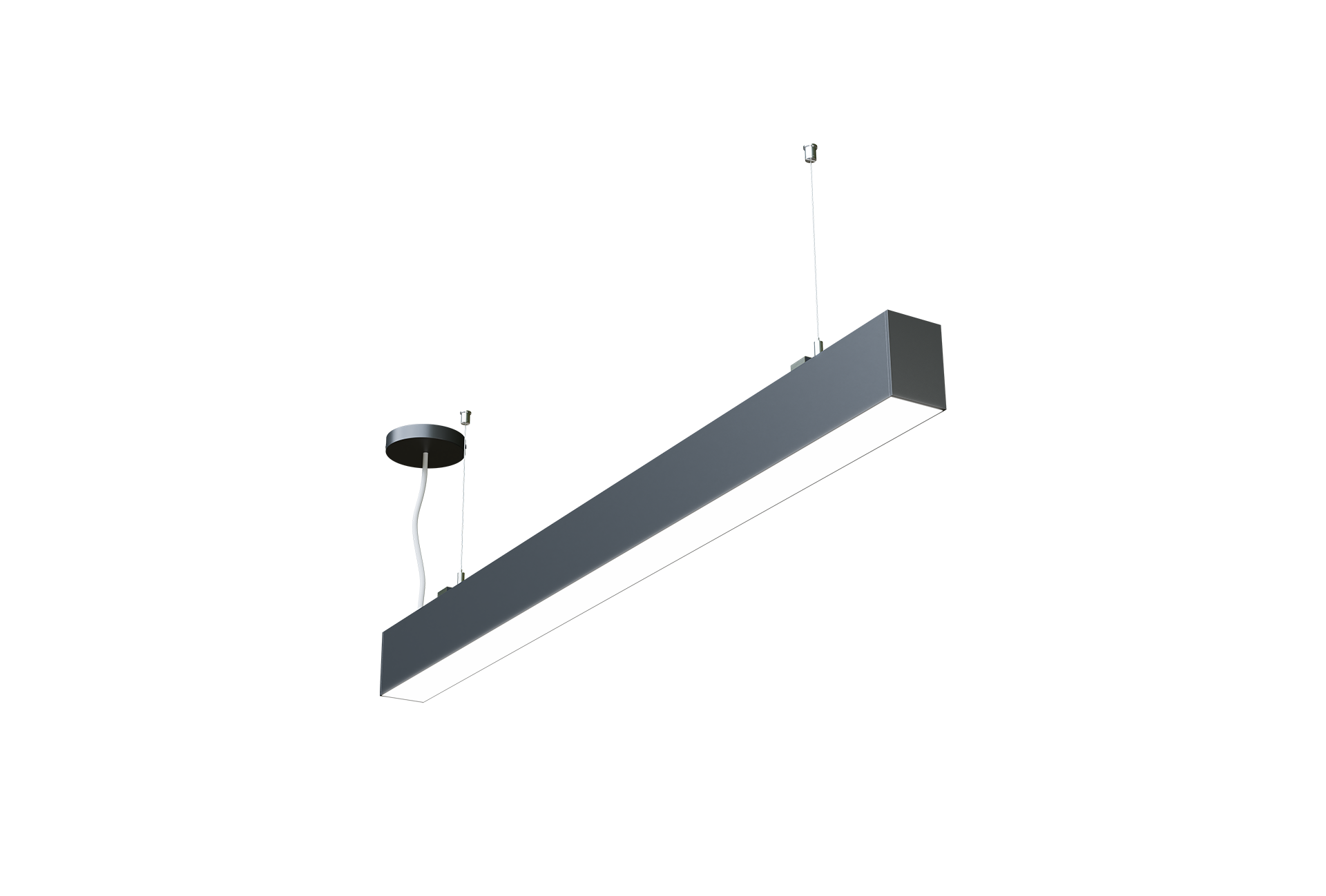

The TechoLED BX series features specification-grade linear LED fixtures made from high-grade aluminum extrusions. Available in standard sizes from 2 to 8 feet, as well as custom lengths, these fixtures can be pendant, surface, or wall-mounted. With virtually limitless options for creating patterns and shapes, the BX series provides a versatile, cost-effective, and modern lighting solution.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct and direct/indirect illumination, 110° beam angle, UGR<19
Construction: Damp location listed, high grade aluminum extrusion, die cast end caps, PMMA diffuser, powder coat finish. X, T, L lit corners, wall to ceiling transitions, for smooth seamless patterns.
| Model | Size | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-BX-3-D-2-LO-30 | 2' | Low | 3000K | 12W | 1160Lm |
| TECHOLED-BX-3-D-2-ME-30 | 2' | Medium | 3000K | 18W | 1800Lm |
| TECHOLED-BX-3-D-2-HI-30 | 2' | High | 3000K | 23W | 2300Lm |
| TECHOLED-BX-3-D-4-LO-30 | 4' | Low | 3000K | 23W | 2320Lm |
| TECHOLED-BX-3-D-4-ME-30 | 4' | Medium | 3000K | 36W | 3600Lm |
| TECHOLED-BX-3-D-4-HI-30 | 4' | High | 3000K | 46W | 4600Lm |
| TECHOLED-BX-3-D-6-LO-30 | 6' | Low | 3000K | 35W | 3480Lm |
| TECHOLED-BX-3-D-6-ME-30 | 6' | Medium | 3000K | 54W | 5400Lm |
| TECHOLED-BX-3-D-6-HI-30 | 6' | High | 3000K | 69W | 6900Lm |
| TECHOLED-BX-3-D-8-LO-30 | 8' | Low | 3000K | 46W | 4640Lm |
| TECHOLED-BX-3-D-8-ME-30 | 8' | Medium | 3000K | 72W | 7200Lm |
| TECHOLED-BX-3-D-8-HI-30 | 8' | High | 3000K | 92W | 9200Lm |
| Model | Size | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-BX-3-DI-2-LO-30 | 2' | Low | 3000K | 17W | 1160Lm | 570Lm |
| TECHOLED-BX-3-DI-2-ME-30 | 2' | Medium | 3000K | 23W | 1800Lm | 900Lm |
| TECHOLED-BX-3-DI-2-HI-30 | 2' | High | 3000K | 30W | 2300Lm | 1150Lm |
| TECHOLED-BX-3-DI-2-ME-30 | 4' | Low | 3000K | 34W | 2320Lm | 1160Lm |
| TECHOLED-BX-3-DI-2-HI-30 | 4' | Medium | 3000K | 46W | 3600Lm | 1800Lm |
| TECHOLED-BX-3-DI-4-HI-30 | 4' | High | 3000K | 60W | 4600Lm | 2300Lm |
| TECHOLED-BX-3-DI-6-LO-30 | 6' | Low | 3000K | 51W | 3480Lm | 1740Lm |
| TECHOLED-BX-3-DI-6-ME-30 | 6' | Medium | 3000K | 68W | 5400Lm | 2700Lm |
| TECHOLED-BX-3-DI-6-HI-30 | 6' | High | 3000K | 90W | 6900Lm | 3450Lm |
| TECHOLED-BX-3-DI-8-LO-30 | 8' | Low | 3000K | 68W | 4640Lm | 2320Lm |
| TECHOLED-BX-3-DI-8-ME-30 | 8' | Medium | 3000K | 91W | 7200Lm | 3600Lm |
| TECHOLED-BX-3-DI-8-HI-30 | 8' | High | 3000K | 120W | 9200Lm | 4600Lm |
