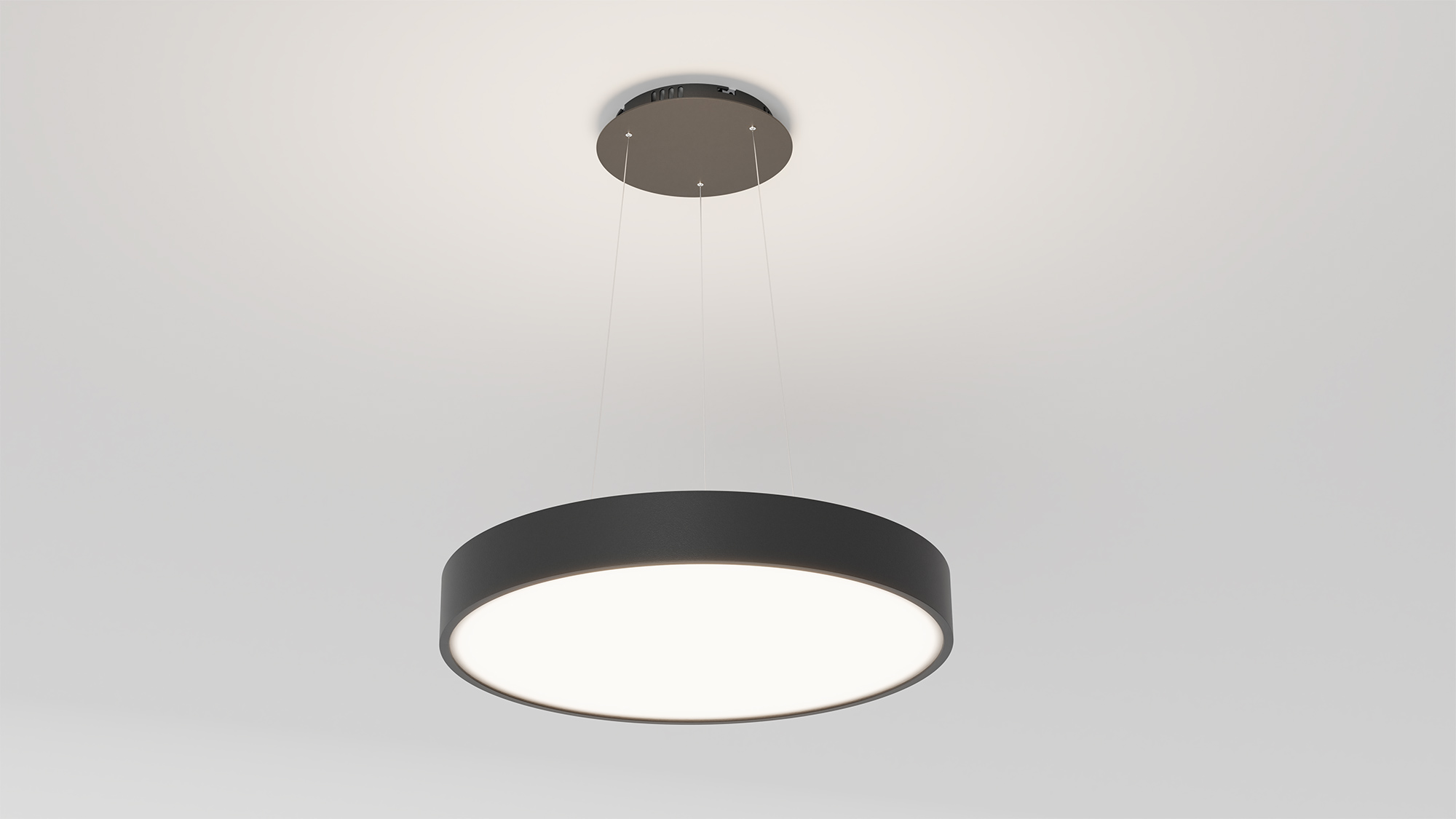

MOON SERIES - DIRECT/INDIRECT
The TechoLED Moon series features smooth, round LED luminaires made with high-end aluminum extrusion and a PMMA diffuser. With diameters ranging from 11.8” to 47.2” (or a custom size of your choice), direct and direct/indirect illumination, and surface-mounted or pendant installation, it offers a simple yet sleek lighting solution for any modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct/Indirect configuration, 115° Beam angle
Construction: Damp location listed. High grade aluminum extrusion, PMMA diffuser, integral driver (inside canopy in pendant version), powder coat finish, custom finishes available.
| Model | Diameter | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-MS-DI-18-LO-30-U-S | 18.9" | Low | 3000K | 40W | 2125Lm | 1275Lm |
| TECHOLED-MS-DI-18-ME-30-U-S | 18.9" | Medium | 3000K | 50W | 2550Lm | 1700Lm |
| TECHOLED-MS-DI-18-HI-30-U-S | 18.9" | High | 3000K | 80W | 4675Lm | 2125Lm |
| TECHOLED-MS-DI-23-LO-30-U-S | 23.6'' | Low | 3000K | 40W | 2125Lm | 1275Lm |
| TECHOLED-MS-DI-23-ME-30-U-S | 23.6'' | Medium | 3000K | 80W | 4250Lm | 2550Lm |
| TECHOLED-MS-DI-23-HI-30-U-S | 23.6'' | High | 3000K | 120W | 6800Lm | 3400Lm |
| TECHOLED-MS-DI-35-LO-30-U-S | 35.4'' | Low | 3000K | 65W | 3400Lm | 2125Lm |
| TECHOLED-MS-DI-35-ME-30-U-S | 35.4'' | Medium | 3000K | 120W | 6800Lm | 3400Lm |
| TECHOLED-MS-DI-35-HI-30-U-S | 35.4'' | High | 3000K | 150W | 8500Lm | 4250Lm |
| TECHOLED-MS-DI-47-LO-30-U-S | 47.2'' | Low | 3000K | 105W | 5950Lm | 2975Lm |
| TECHOLED-MS-DI-47-ME-30-U-S | 47.2'' | Medium | 3000K | 150W | 8500Lm | 4250Lm |
| TECHOLED-MS-DI-47-HI-30-U-S | 47.2'' | High | 3000K | 200W | 11050Lm | 5950Lm |
