Magnetic Curved Track Series

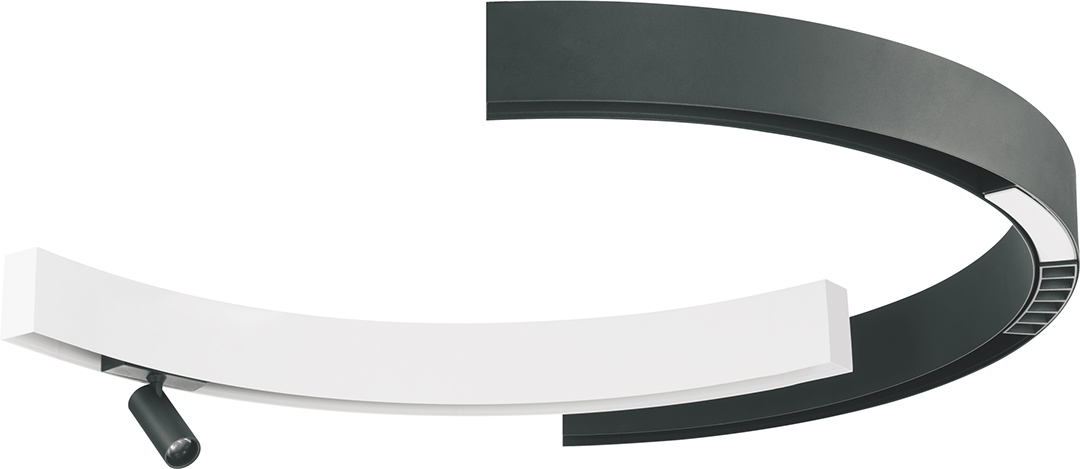

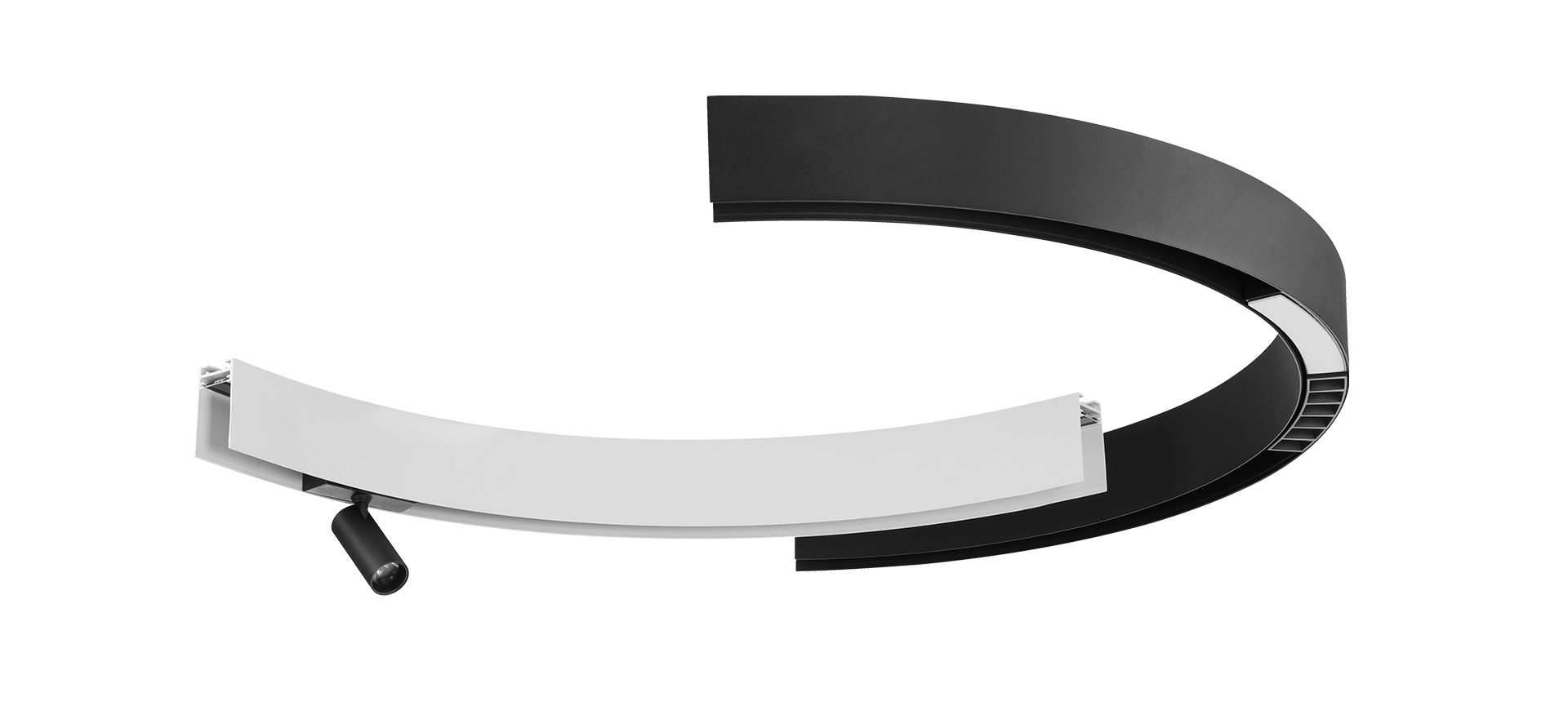

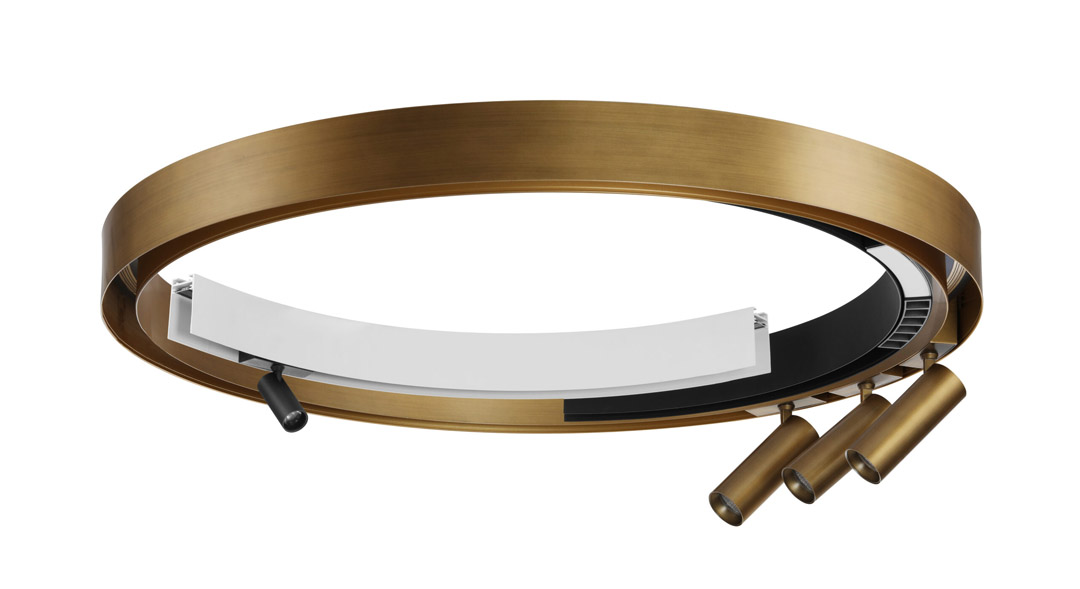

MAGNETIC CURVED TRACK SYSTEM - MAGNETIC TRACK

Download
The TechoLED Magnetic Curved Track System is a creative and flexible architectural lighting solution. The track has virtually unlimited capability to create shapes and patterns, from simple rectangles to complex curves and circles, including custom radii with both the track and the illuminated modules. Light components, ranging from solid linear, louvre, and wall washer to adjustable spotlights and pendant cylinders, snap into the track magnetically and can be repositioned by hand without tools. It is a superb and creative lighting solution for any modern interior.
LED: Osram & Cree LED Chips, 2700-5000K, dim-to-warm and tunable white available, 90+ CRI
Optical: Direct illumination, variety of beam angles available on all spotlight and louvered modules
Construction: High-grade aluminum extrusions, 24V remote driver, powder coat finish, curves – standard and custom, continuous linear runs, X, T, L as well as wall-to-ceiling and inner/outer corners available for virtually unlimited patterns

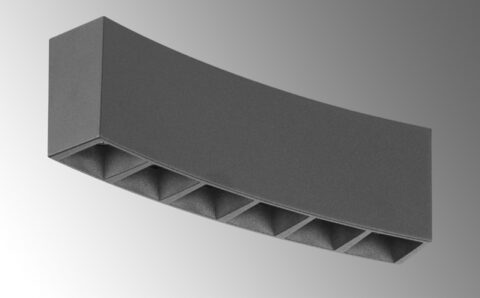

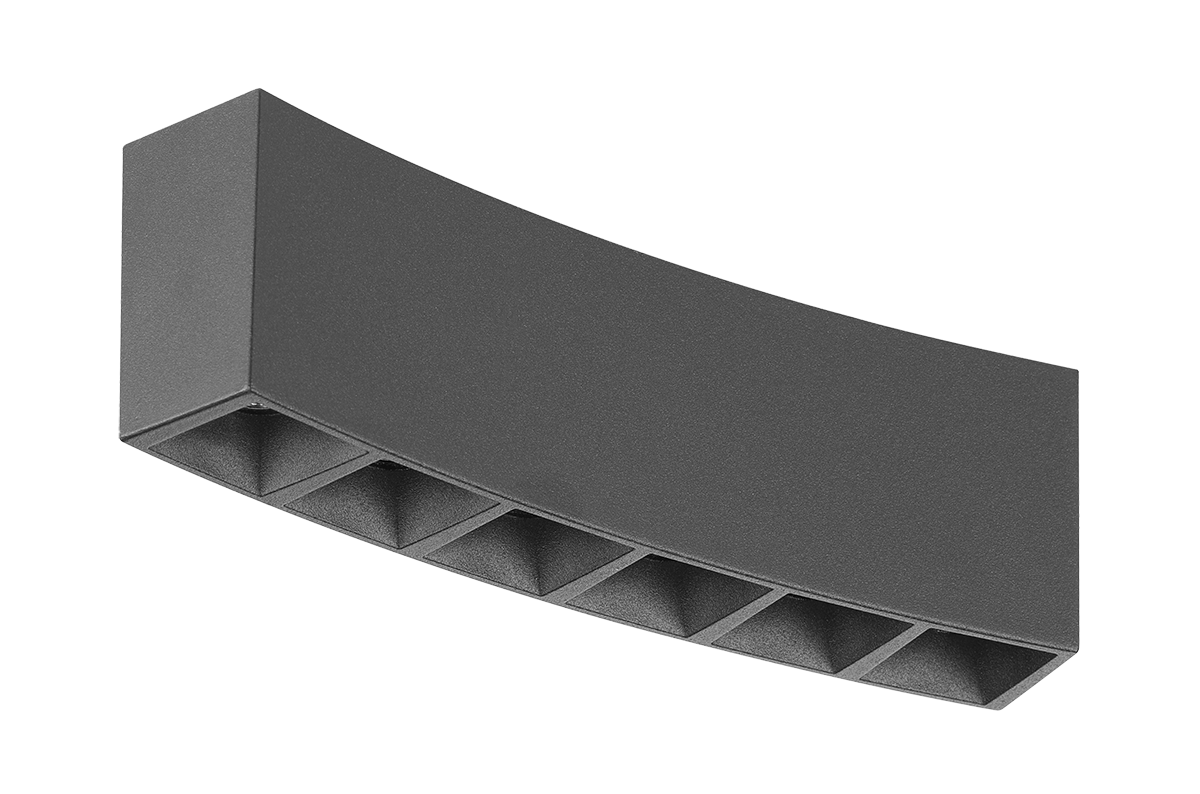

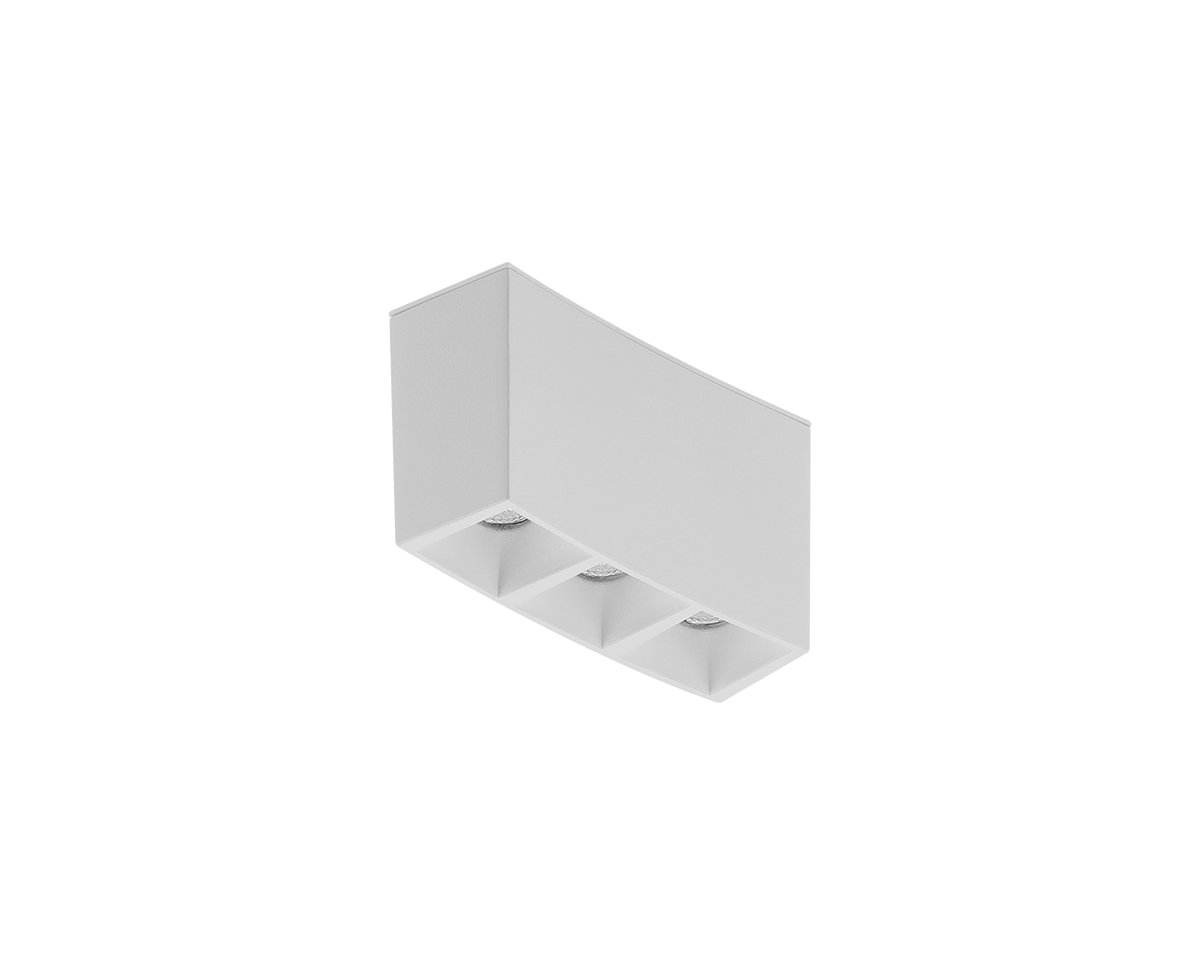

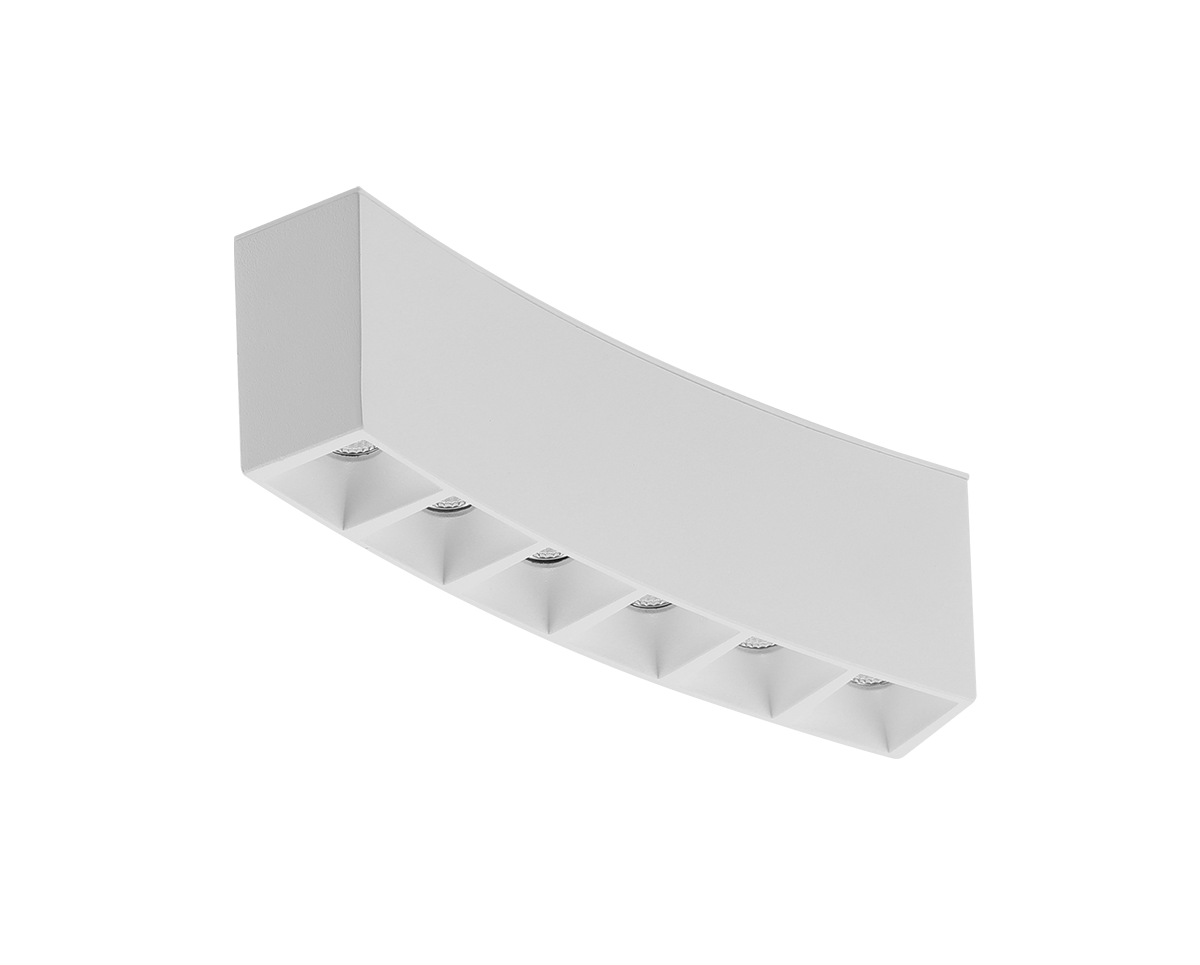

MAGNETIC CURVED TRACK SYSTEM - CURVED LOUVRE LINEAR MODULE

Download
The TechoLED Magnetic Track System is a creative and flexible architectural lighting solution. The track has virtually unlimited capability to create shapes and patterns, from simple rectangles to complex curves and circles, including custom radii with both the track and the illuminated modules. Light components, ranging from solid linear, louvre, and wall washer to adjustable spotlights and pendant cylinders, snap into the track magnetically and can be repositioned by hand without tools. It is a superb and creative lighting solution for any modern interior.
LED: Osram & Cree LED Chips, 2700-5000K, dim-to-warm and tunable white available, 90+ CRI
Optical: Direct illumination, 12° – 48° beam angles available
Construction: High grade aluminum extrusion, powder coat finish, custom finishes available, 24V remote driver


Model | Output | Beam Angle | Color Temp | Wattage | Lumen Output |
---|---|---|---|---|---|
TECHOLED-MCT-LL-4-ME-34-30-W-X | Medium | 34° | 3000K | 4W | 320Lm |
TECHOLED-MCT-LL-8-ME-34-30-W-X | Medium | 34° | 3000K | 8W | 640Lm |

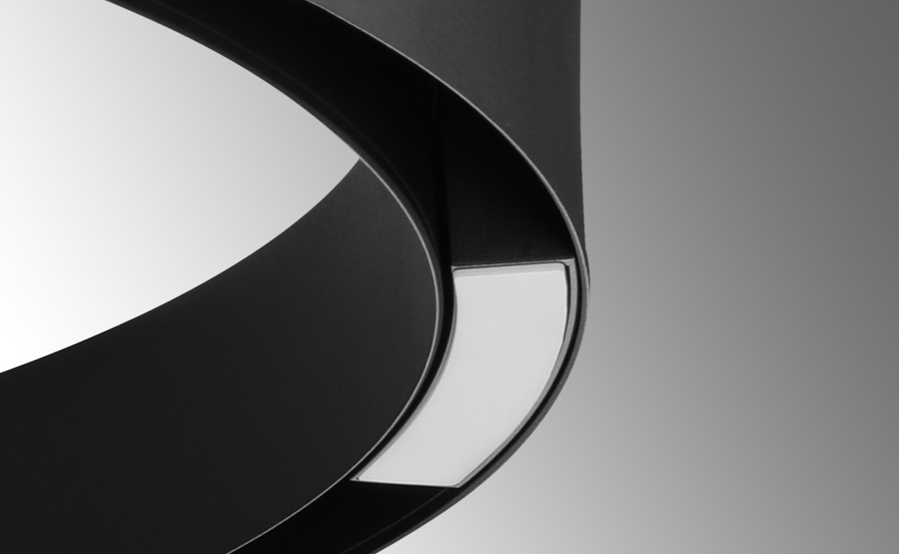

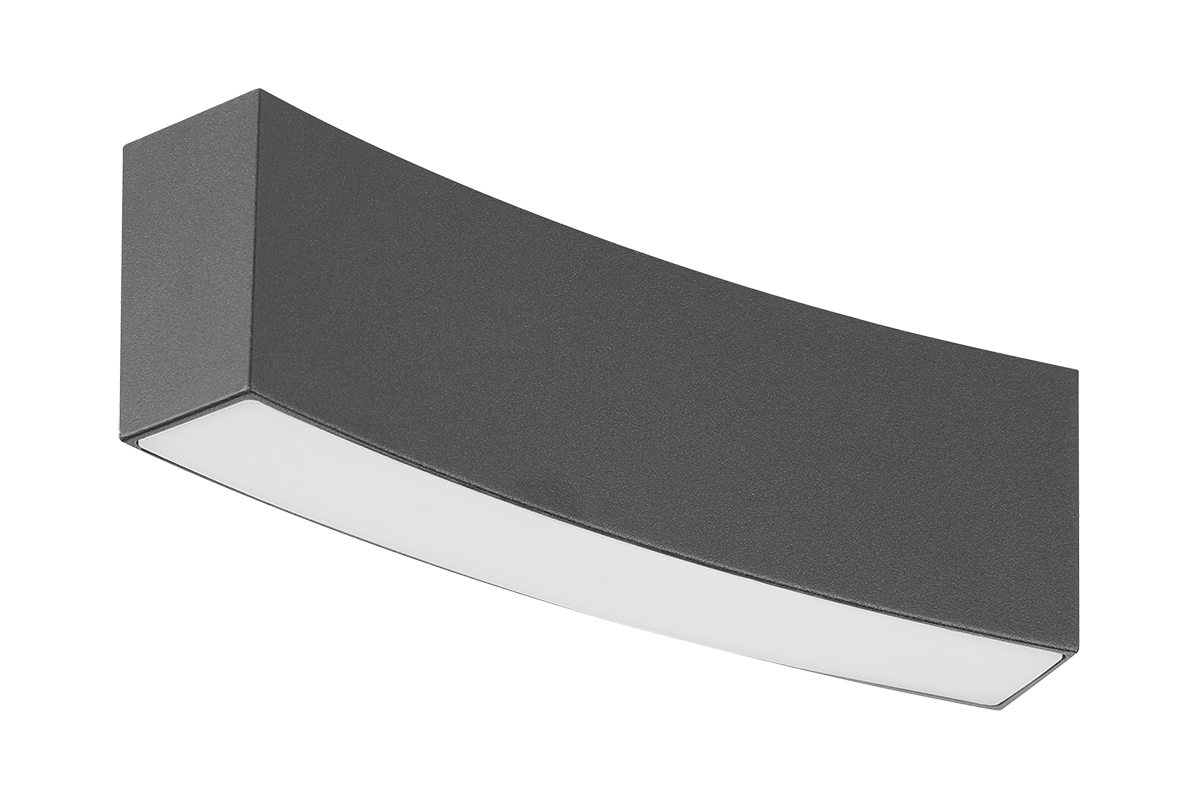

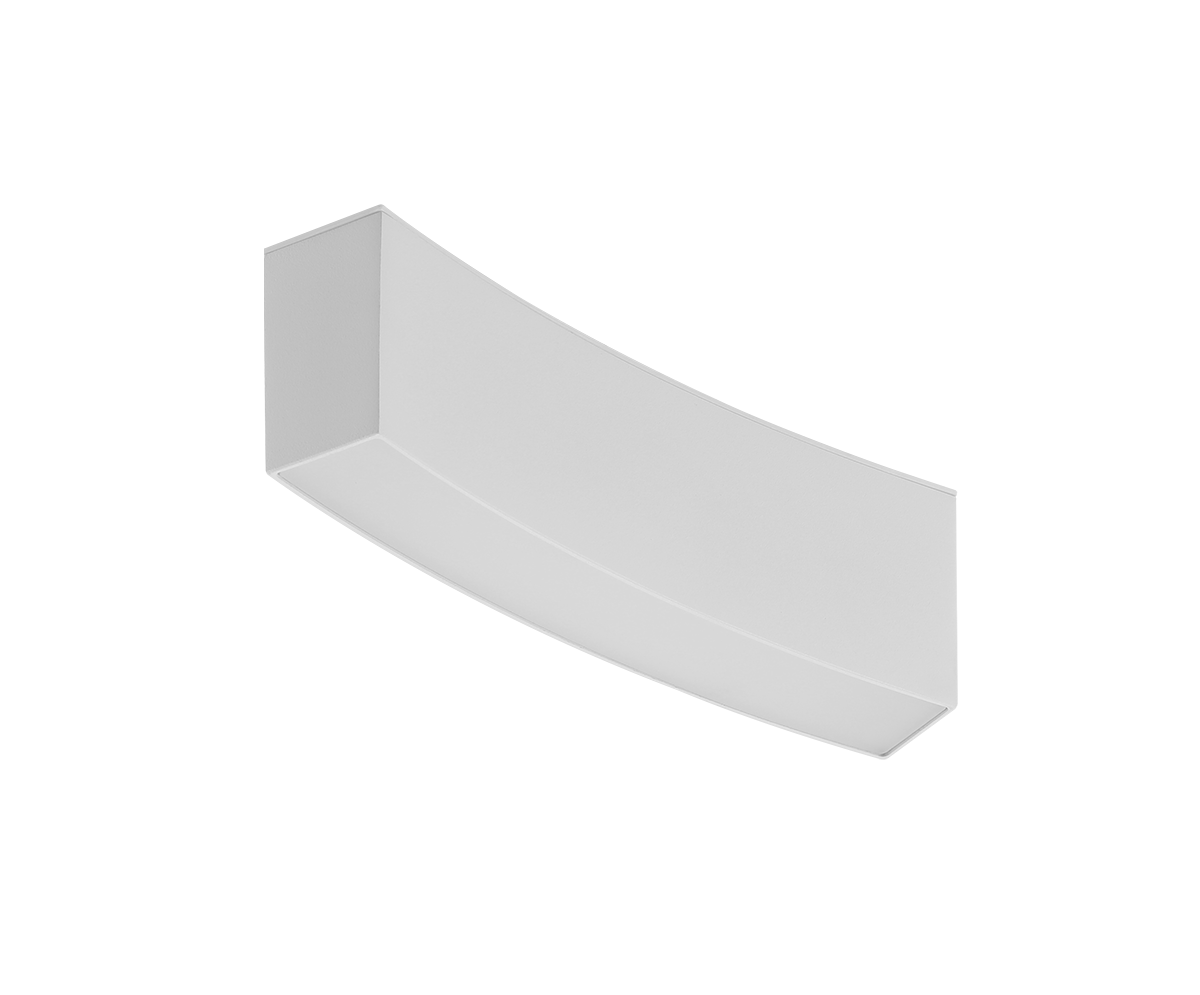

MAGNETIC CURVED TRACK SYSTEM - CURVED SOLID LINEAR MODULE

Download
IES files
TECHOLED-MCT-SL.zipThe TechoLED Magnetic Track System is a creative and flexible architectural lighting solution. The track has virtually unlimited capability to create shapes and patterns, from simple rectangles to complex curves and circles, including custom radii with both the track and the illuminated modules. Light components, ranging from solid linear, louvre, and wall washer to adjustable spotlights and pendant cylinders, snap into the track magnetically and can be repositioned by hand without tools. It is a superb and creative lighting solution for any modern interior.
LED: Osram & Cree LED Chips, 2700-5000K, dim-to-warm and tunable white available, 90+ CRI
Optical: Direct illumination, 120° beam angle
Construction: High grade aluminum extrusion, PC diffuser, powder coat finish, custom finishes available, 24V remote driver


Model | Output | Beam Angle | Color Temp. | Wattage | Lumen Output |
---|---|---|---|---|---|
TECHOLED-MCT-SL-7-ME-110-30-W-X | Medium | 110° | 3000K | 7W | 560Lm |

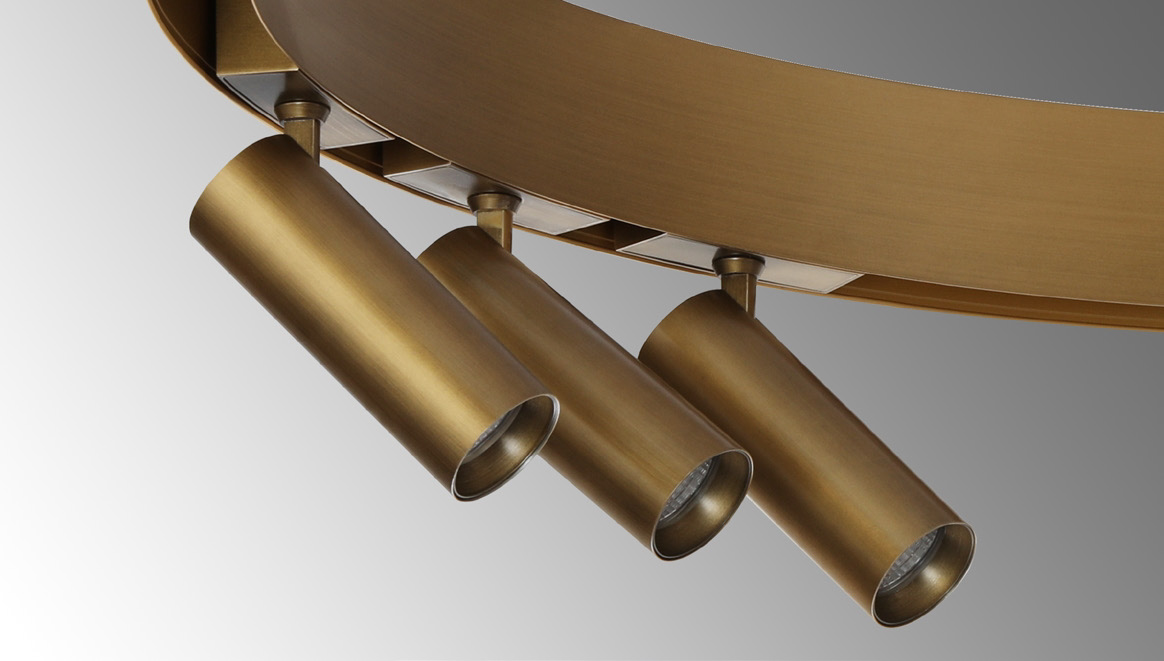

MAGNETIC CURVED TRACK SYSTEM - CURVED ADJUSTABLE SPOTLIGHT MODULE

Download
The TechoLED Magnetic Track System is a creative and flexible architectural lighting solution. The track has virtually unlimited capability to create shapes and patterns, from simple rectangles to complex curves and circles, including custom radii with both the track and the illuminated modules. Light components, ranging from solid linear, louvre, and wall washer to adjustable spotlights and pendant cylinders, snap into the track magnetically and can be repositioned by hand without tools. It is a superb and creative lighting solution for any modern interior.
LED: Osram & Cree LED Chips, 2700-5000K, dim-to-warm and tunable white available, 90+ CRI
Optical: Direct illumination, 18° – 40° beam angles available
Construction: High grade aluminum extrusion, powder coat finish, custom finishes available, 24V remote driver


Model | Output | Beam Angle | Color Temp. | Wattage | Lumen Output |
---|---|---|---|---|---|
TECHOLED-MCT-S-10-ME-36-30-W-X | Medium | 36° | 3000K | 7W | 650Lm |

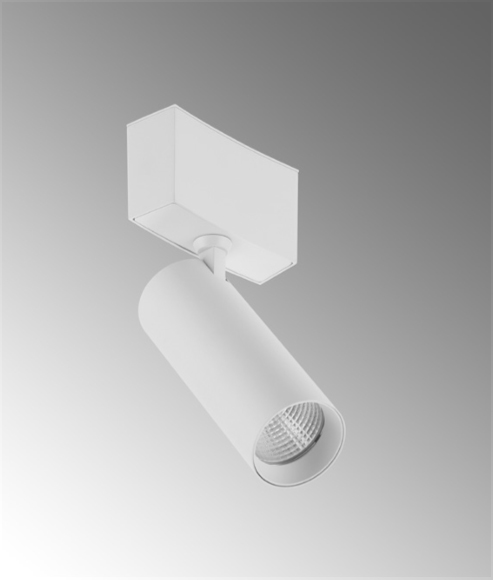

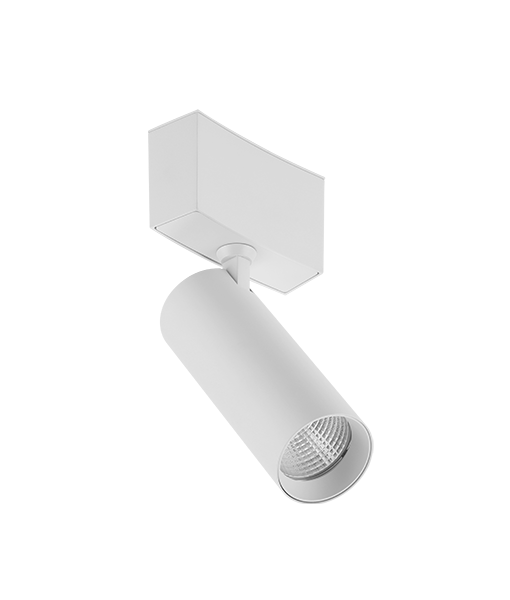

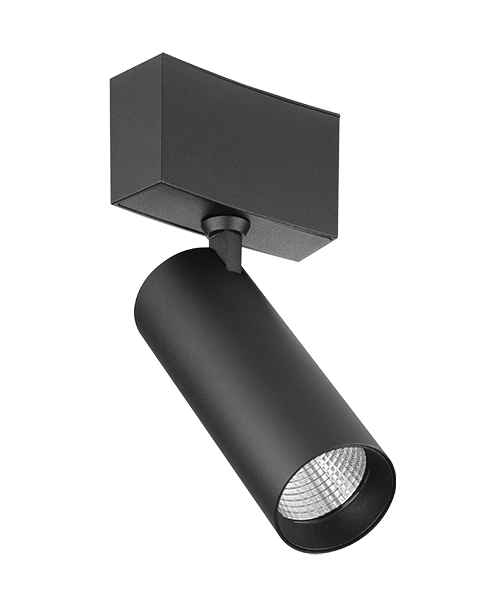

MAGNETIC CURVED TRACK SYSTEM - CURVED ADJUSTABLE SPOTLIGHT SMALL MODULE

Download
The TechoLED Magnetic Track System is a creative and flexible architectural lighting solution. The track has virtually unlimited capability to create shapes and patterns, from simple rectangles to complex curves and circles, including custom radii with both the track and the illuminated modules. Light components, ranging from solid linear, louvre, and wall washer to adjustable spotlights and pendant cylinders, snap into the track magnetically and can be repositioned by hand without tools. It is a superb and creative lighting solution for any modern interior.
LED: Osram & Cree LED Chips, 2700-5000K, dim-to-warm and tunable white available, 90+ CRI
Optical: Direct illumination, 18° – 40° beam angles available
Construction: High grade aluminum extrusion, powder coat finish, custom finishes available, 24V remote driver


Model | Output | Beam Angle | Color Temp. | Wattage | Lumen Output |
---|---|---|---|---|---|
TECHOLED-MCT-SLS-5-ME-30-30-W-X | Medium | 30° | 3000K | 5W | 400Lm |
TECHOLED-MCT-SLD-10-ME-30-30-W-X | Medium | 30° | 3000K | 10W | 800Lm |

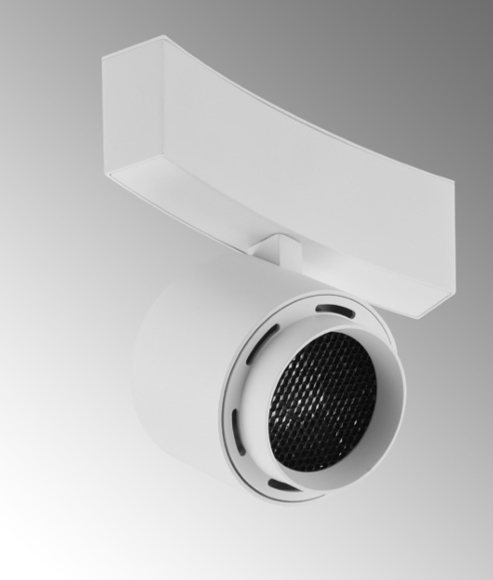

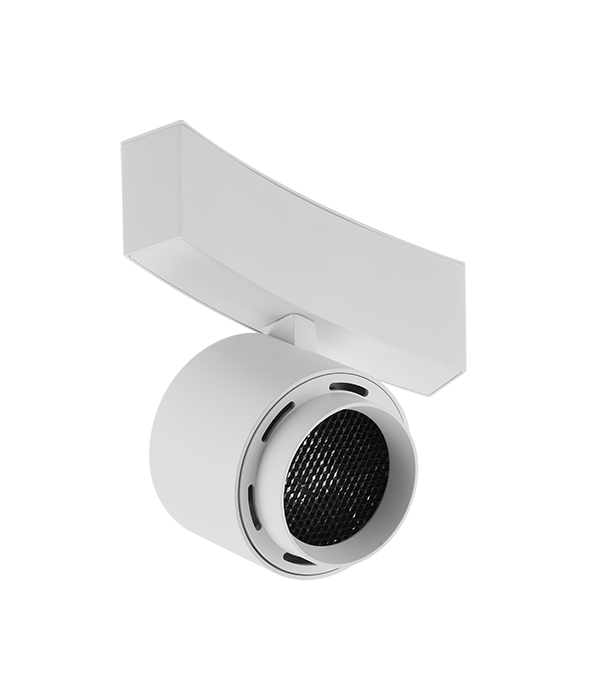

MAGNETIC CURVED TRACK SYSTEM - CURVED ADJUSTABLE SPOTLIGHT SHORT MODULE

Download
The TechoLED Magnetic Track System is a creative and flexible architectural lighting solution. The track has virtually unlimited capability to create shapes and patterns, from simple rectangles to complex curves and circles, including custom radii with both the track and the illuminated modules. Light components, ranging from solid linear, louvre, and wall washer to adjustable spotlights and pendant cylinders, snap into the track magnetically and can be repositioned by hand without tools. It is a superb and creative lighting solution for any modern interior.
LED: Osram & Cree LED Chips, 2700-5000K, dim-to-warm and tunable white available, 90+ CRI
Optical: Direct illumination, 18° – 40° beam angles available
Construction: High grade aluminum extrusion, powder coat finish, custom finishes available, 24V remote driver


Model | Output | Beam Angle | Color Temp. | Wattage | Lumen Output |
---|---|---|---|---|---|
TECHOLED-MCT-SLS-5-ME-30-30-W-X | Medium | 30° | 3000K | 5W | 400Lm |
TECHOLED-MCT-SLD-10-ME-30-30-W-X | Medium | 30° | 3000K | 10W | 800Lm |
