MAGNETIC TRACK SYSTEM - MAGNETIC TRACK
Download
Revit file(s)

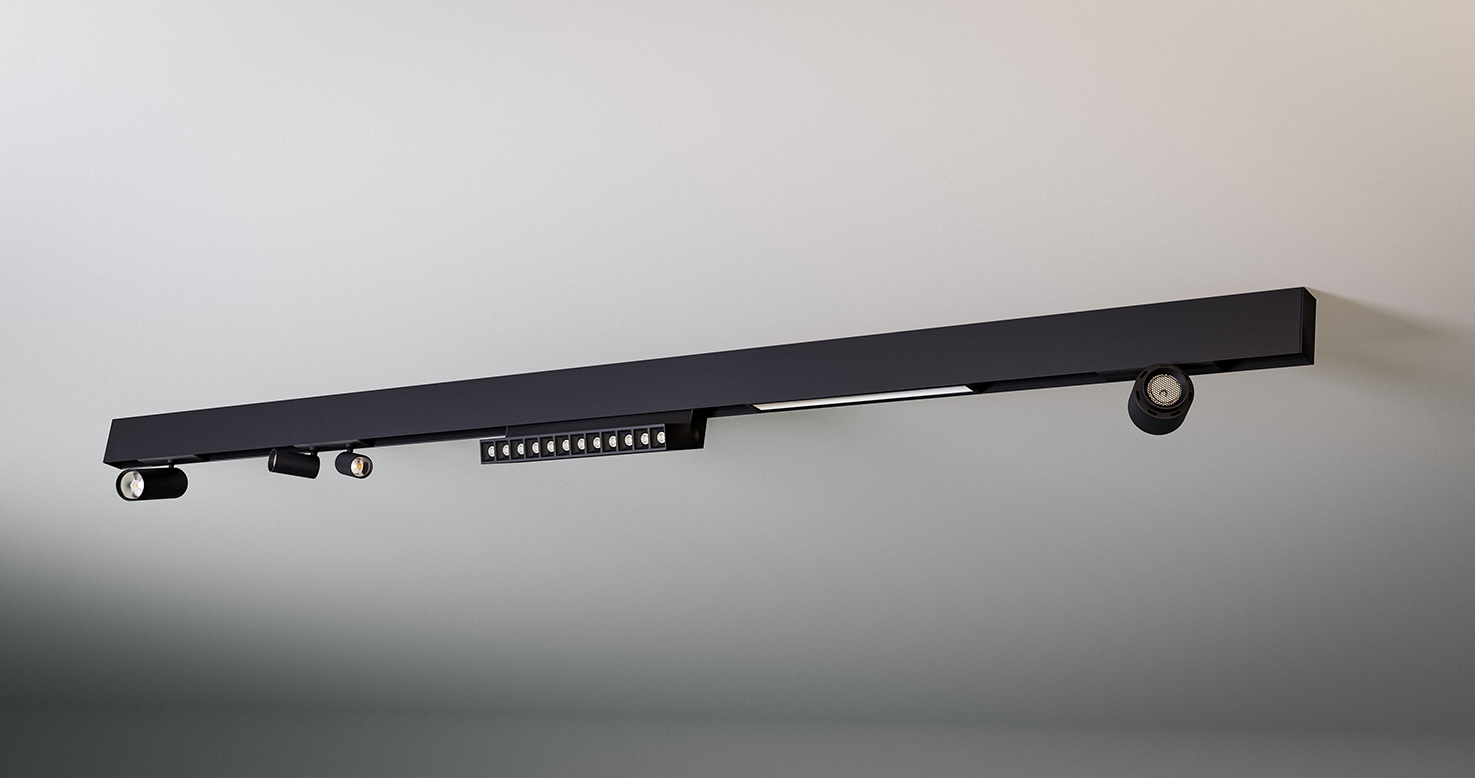

MAGNETIC TRACK SYSTEM - MAGNETIC TRACK.rfaThe TechoLED Magnetic Track System is a creative and flexible architectural lighting solution. The track has virtually unlimited capability to create shapes and patterns, from simple rectangles to complex curves and circles, including custom radii with both the track and the illuminated modules. Light components, ranging from solid linear, louvre, and wall washer to adjustable spotlights and pendant cylinders, snap into the track magnetically and can be repositioned by hand without tools. It is a superb and creative lighting solution for any modern interior.
LED: Osram & Cree LED Chips, 2700-5000K, dim-to-warm and tunable white available, 90+ CRI
Optical: Direct and direct/indirect illumination, variety of beam angles available on all spotlight and louvered modules
Construction: High-grade aluminum extrusions, 24V remote driver, powder coat finish, curves – standard and custom, continuous linear runs, X, T, L as well as wall-to-ceiling and inner/outer corners available for virtually unlimited patterns, built-in indirect illumination available

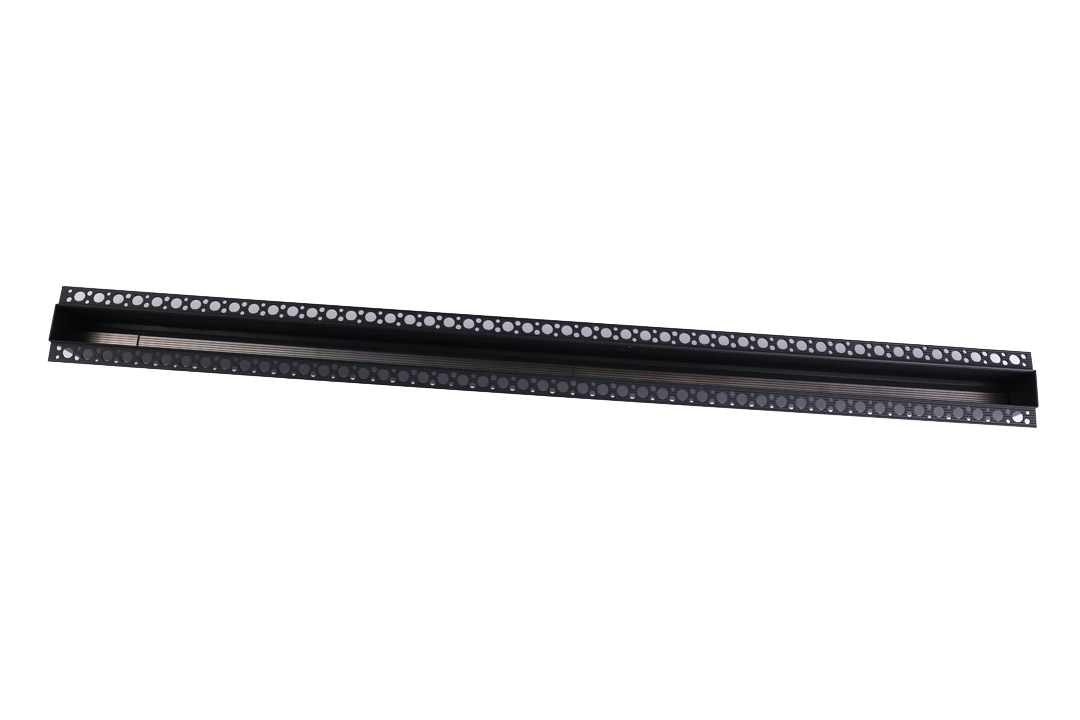

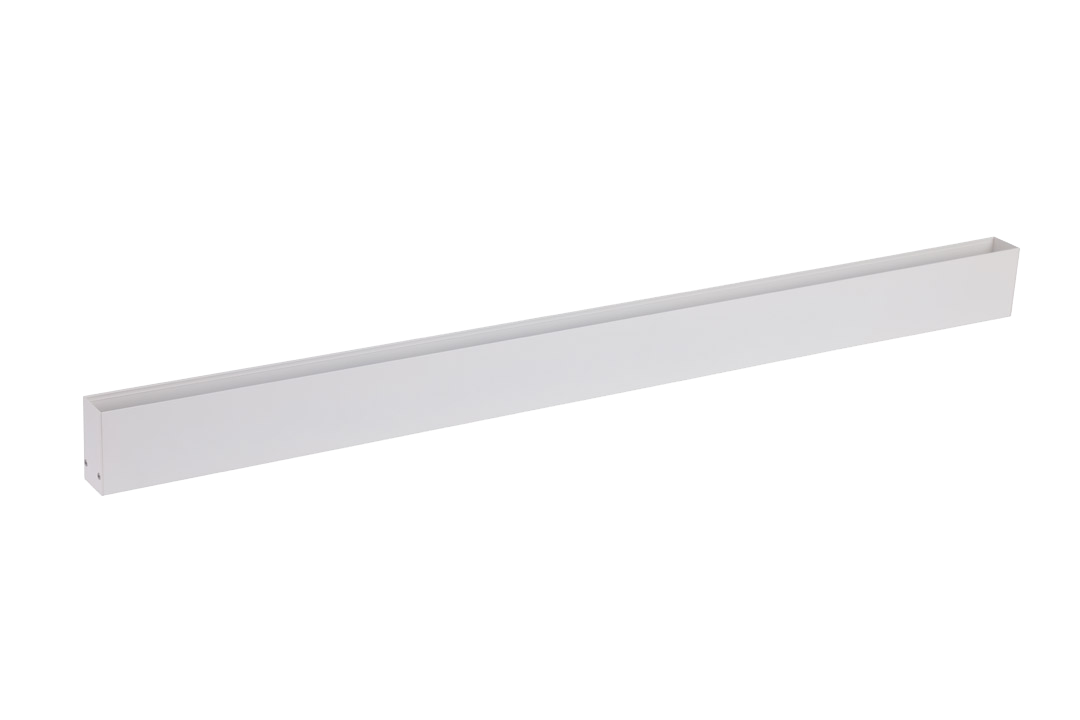

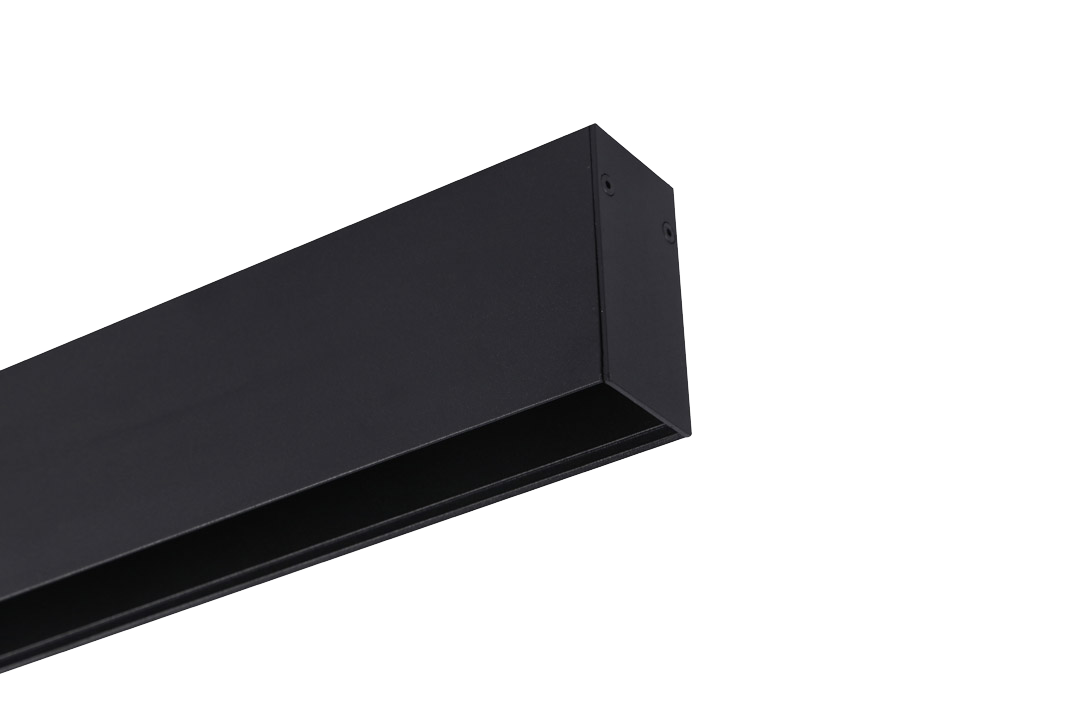

Product photos
| Model # | Distribution | Length | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-MT-D-2-U-W-P-DM-30 | Direct | 2' | 3000K | 14W | 1120Lm |
| TECHOLED-MT-D-4-U-W-P-DM-30 | Direct | 4' | 3000K | 28W | 2240Lm |
| TECHOLED-MT-D-6-U-W-P-DM-30 | Direct | 8' | 3000K | 42W | 3360Lm |
