Magnetic Nano Track System

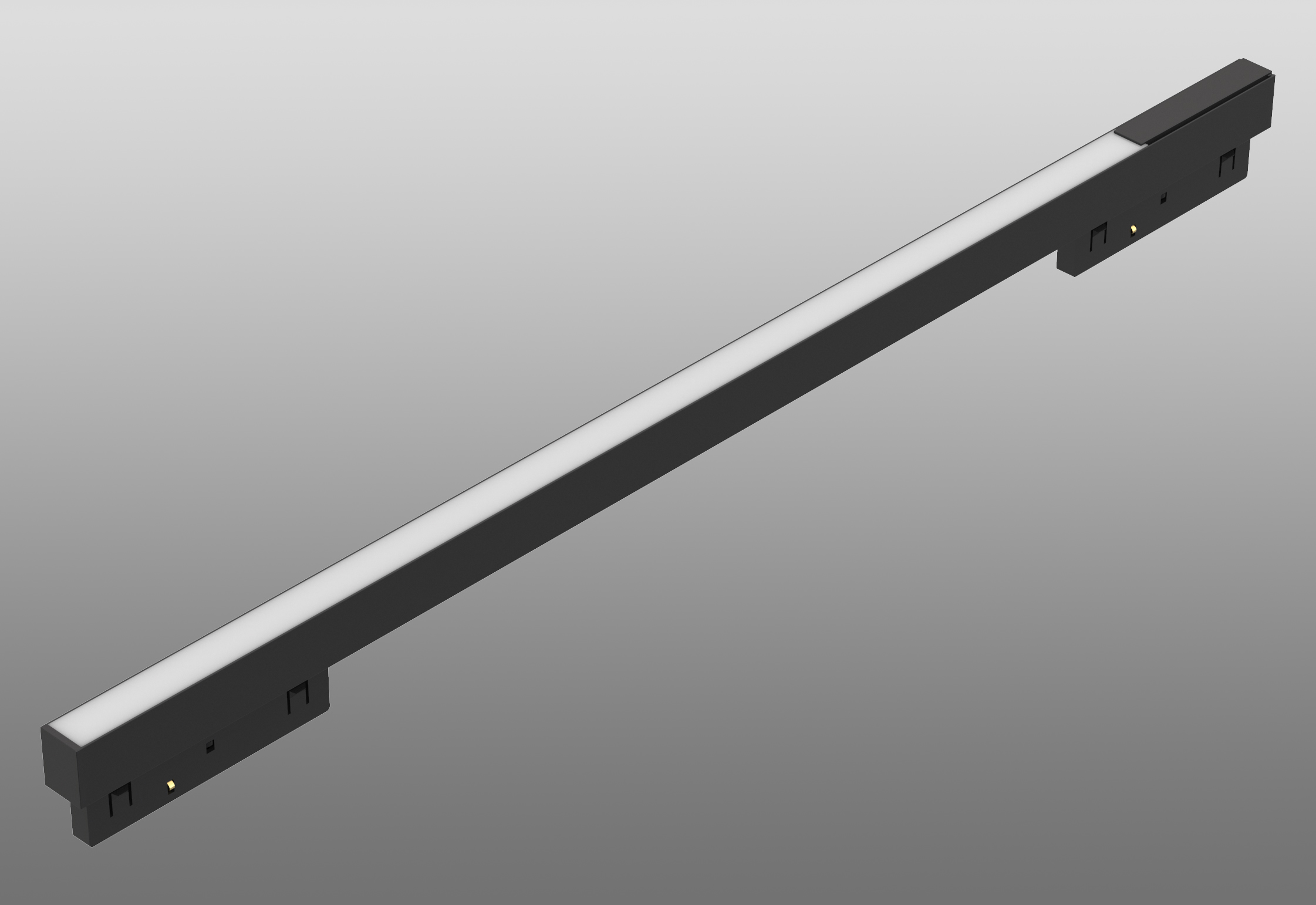

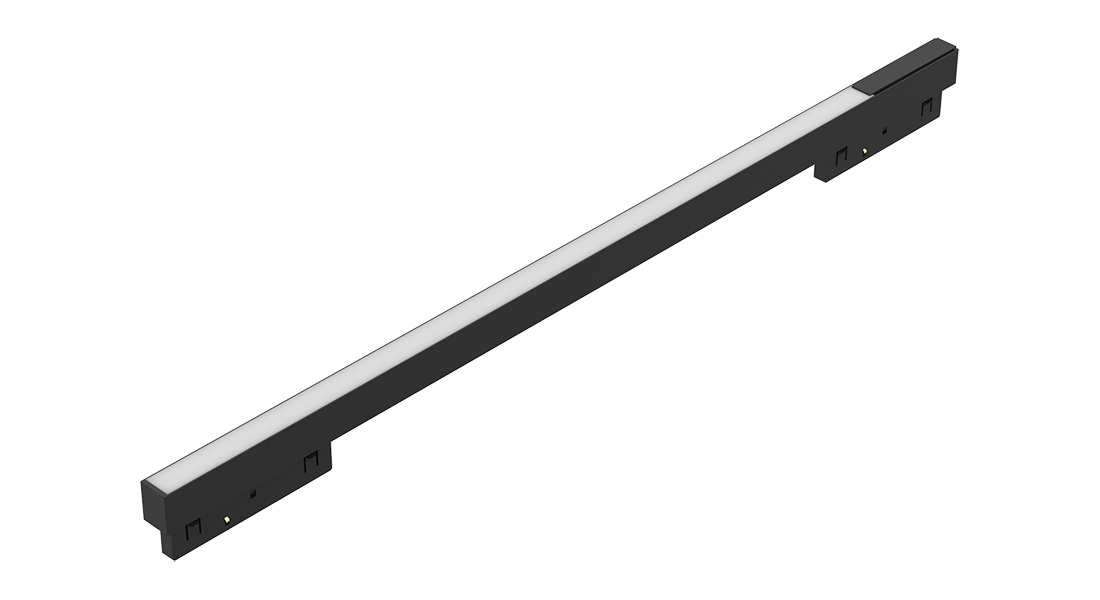

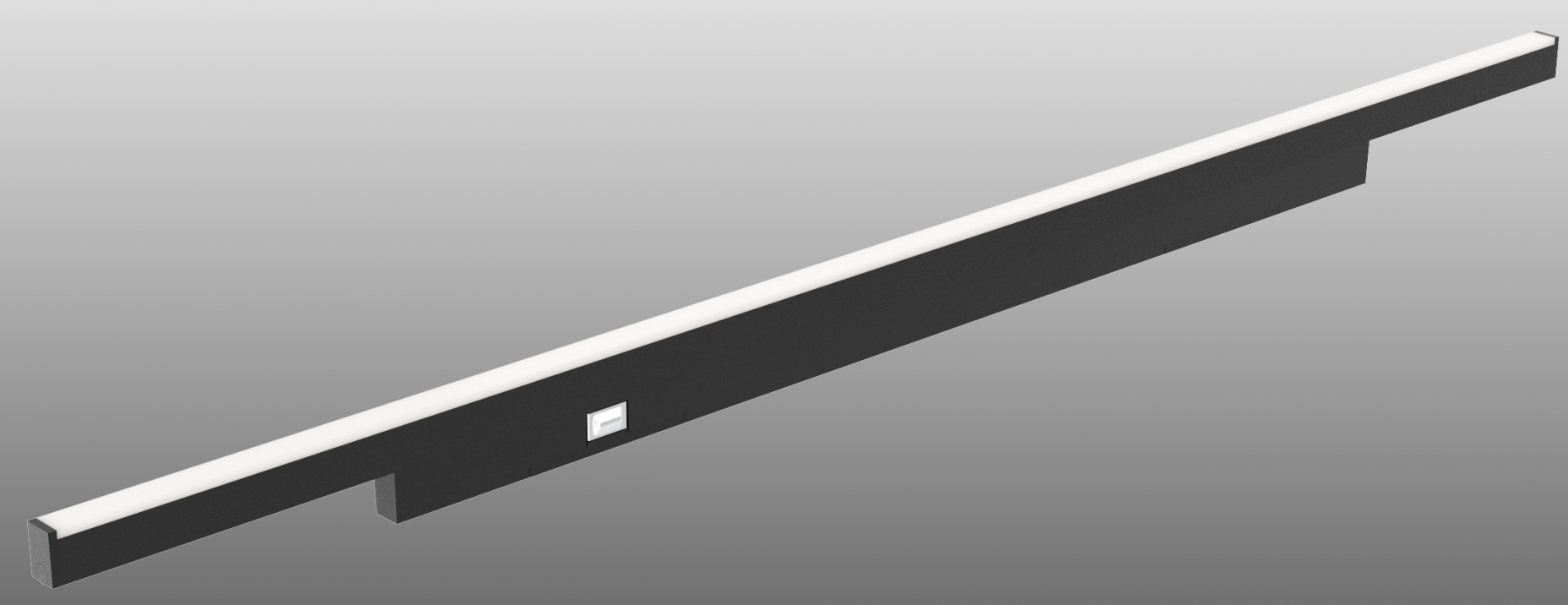

NANO TRACK SYSTEM - SOLID LINEAR MODULE
Download
IES files
TECHOLED-NT-SL.zipThe TechoLED NANO Track System is the world’s smallest track, with an aperture of just 0.2”. The track has virtually unlimited capability to create shapes and patterns. It can be installed surface-mounted, mud-in recessed, and projecting. Light components, ranging from solid lensed and louvered to spots and cylinders, snap in and out magnetically by hand, without tools. It is the ultimate minimalistic lighting solution for any modern interior.
LED: Bridgelux LED Chips, 2700-5000K, 90+ CRI
Optical: Direct illumination, 110° beam angle
Construction: High-grade aluminum extrusion, PC diffuser, powder coat finish, custom finishes available, 24V remote driver
| Model | Output | Length | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-NT-SL-ME-10-30 | Medium | 1' | 3000K | 5W | 230Lm |
| TECHOLED-NT-SL-ME-20-30 | Medium | 2' | 3000K | 10W | 460Lm |

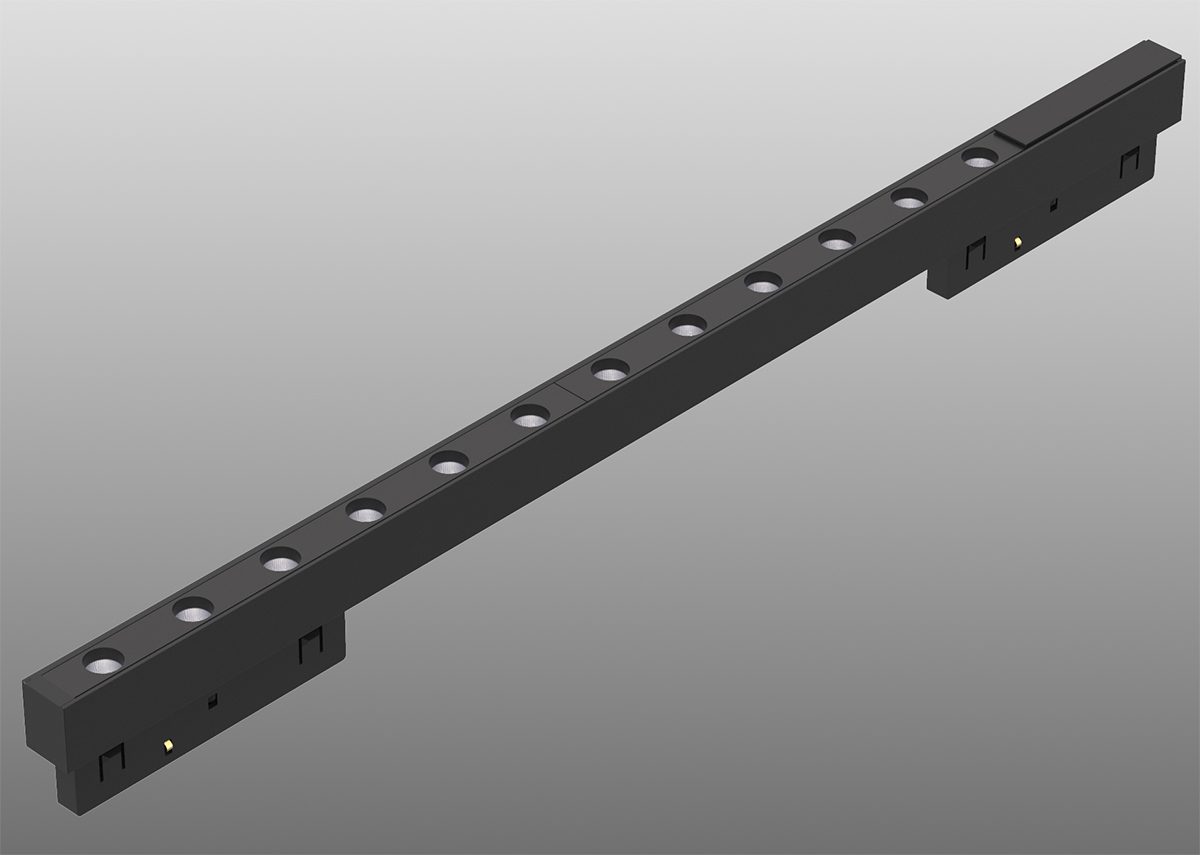

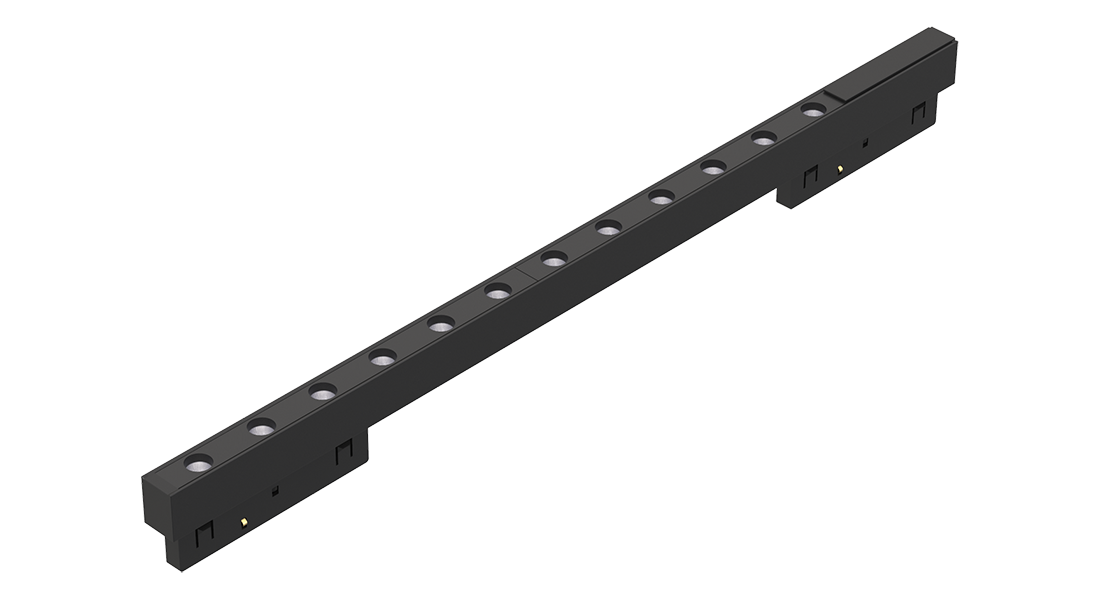

NANO TRACK SYSTEM - LOUVER LINEAR MODULE
Download
IES files
TECHOLED-NT-LL.zipThe TechoLED NANO Track System is the world’s smallest track, with an aperture of just 0.2”. The track has virtually unlimited capability to create shapes and patterns. It can be installed surface-mounted, mud-in recessed, and projecting. Light components, ranging from solid lensed and louvered to spots and cylinders, snap in and out magnetically by hand, without tools. It is the ultimate minimalistic lighting solution for any modern interior.
LED: Bridgelux LED Chips, 2700-5000K, 90+ CRI
Optical: Direct illumination, 36° beam angle
Construction: High-grade aluminum extrusion, PC diffuser, powder coat finish, custom finishes available, 24V remote driver
| Model | Output | Length | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-NT-LL-ME-10-30 | Medium | 1' | 3000K | 5W | 240Lm |
| TECHOLED-NT-LL-ME-15-30 | Medium | 1.5' | 3000K | 8W | 348Lm |
| TECHOLED-NT-LL-ME-20-30 | Medium | 2' | 3000K | 12W | 576Lm |

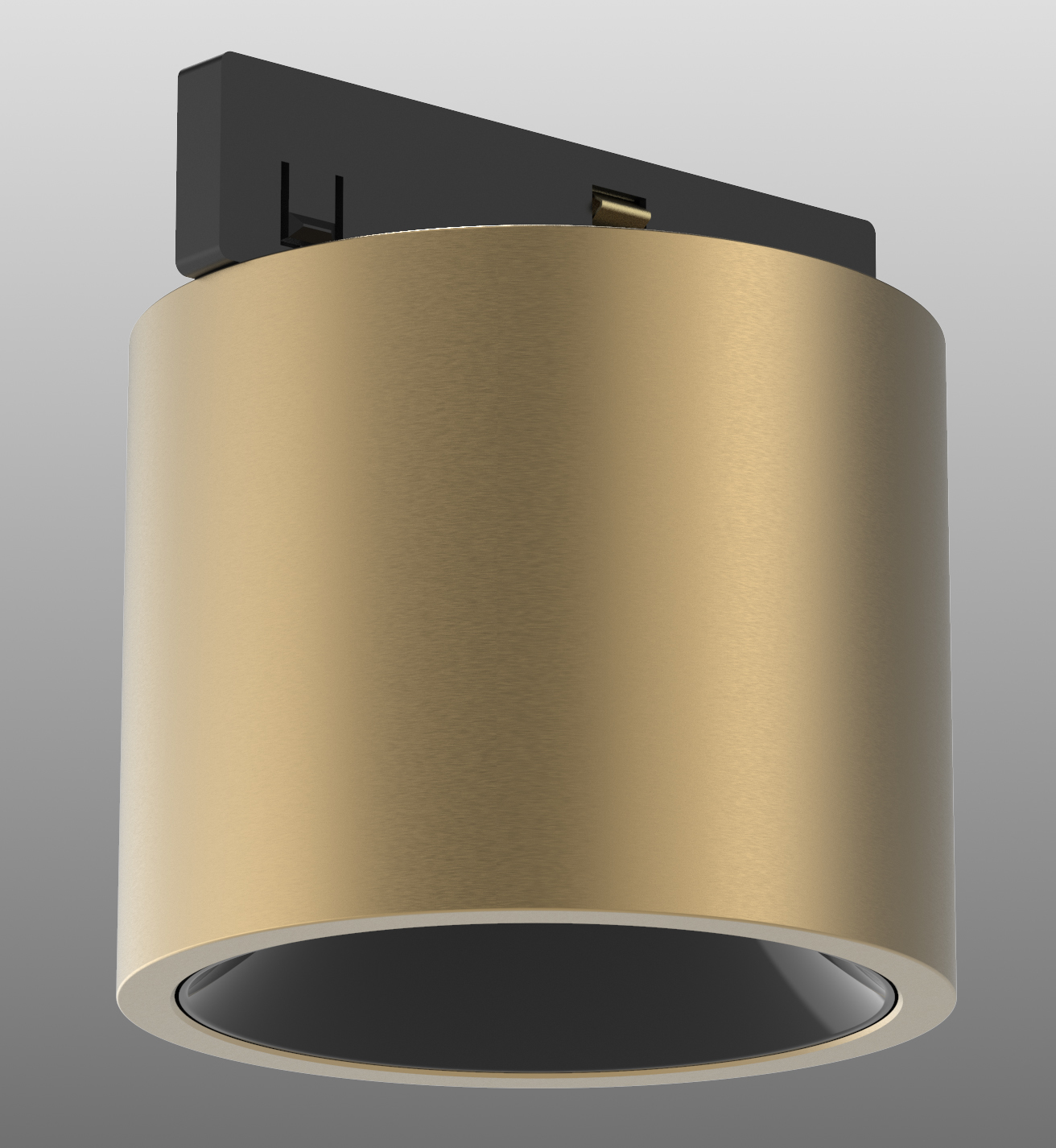

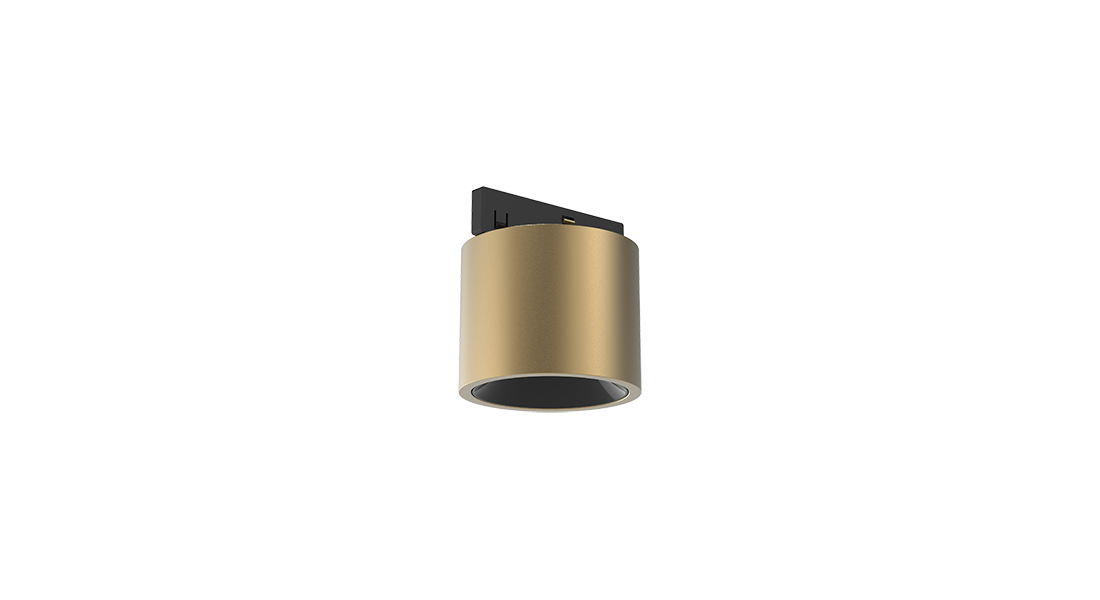

NANO TRACK SYSTEM - CYLINDER MODULE
Download
The TechoLED NANO Track System is the world’s smallest track, with an aperture of just 0.2”. The track has virtually unlimited capability to create shapes and patterns. It can be installed surface-mounted, mud-in recessed, and projecting. Light components, ranging from solid lensed and louvered to spots and cylinders, snap in and out magnetically by hand, without tools. It is the ultimate minimalistic lighting solution for any modern interior.
LED: Bridgelux LED Chips, 2700-5000K, 90+ CRI
Optical: Direct illumination, 18° beam angle
Construction: High-grade aluminum extrusion, PC diffuser, powder coat finish, custom finishes available, 24V remote driver
| Model | Output | Diameter | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-NT-C-ME-2-30 | Medium | 2.2" | 3000K | 9W | 675Lm |

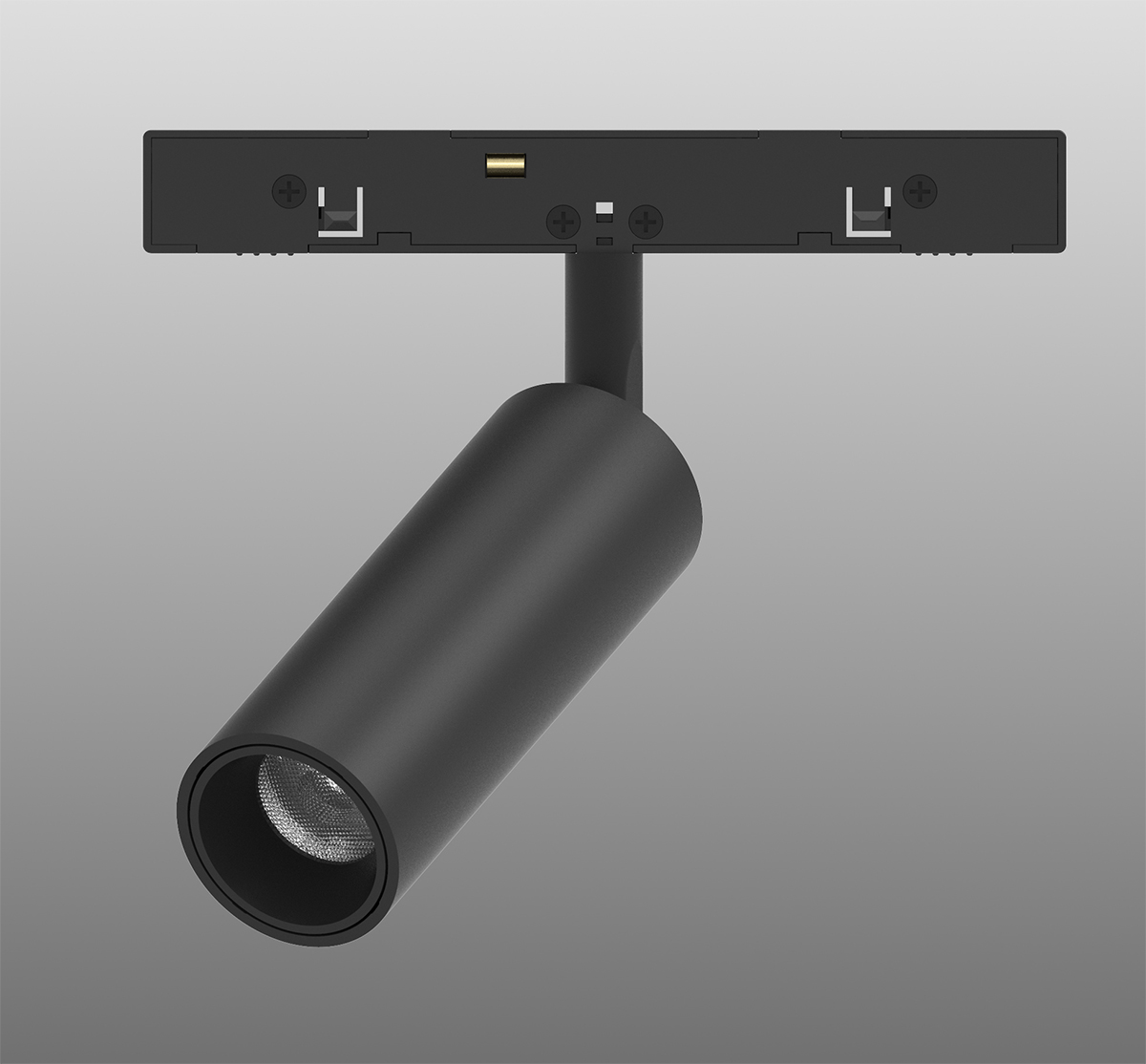

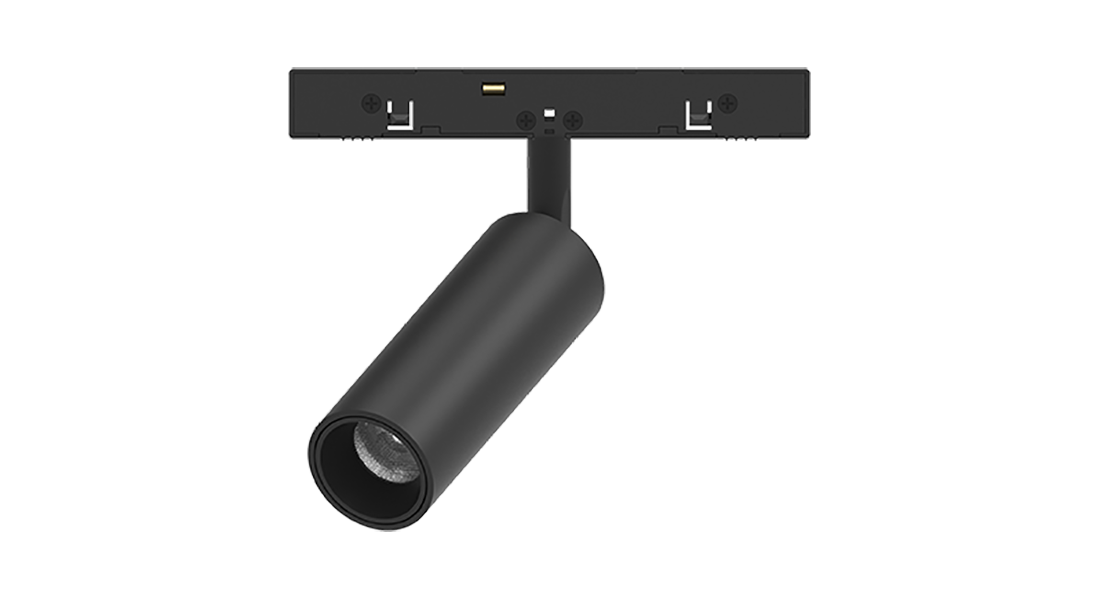

NANO TRACK SYSTEM - ADJUSTABLE SPOTLIGHT MODULE
Download
IES files
TECHOLED-NT-AS.zipThe TechoLED NANO Track System is the world’s smallest track, with an aperture of just 0.2”. The track has virtually unlimited capability to create shapes and patterns. It can be installed surface-mounted, mud-in recessed, and projecting. Light components, ranging from solid lensed and louvered to spots and cylinders, snap in and out magnetically by hand, without tools. It is the ultimate minimalistic lighting solution for any modern interior.
LED: Bridgelux LED Chips, 2700-5000K, 90+ CRI
Optical: Direct illumination, 18°, 24° & 36° beam angles available
Construction: High-grade aluminum extrusion, PC diffuser, powder coat finish, custom finishes available, 24V remote driver
| Model | Output | Length | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-NT-AS-ME-1-30 | Medium | 1.2" | 3000K | 5W | 375Lm |
| TECHOLED-NT-AS-ME-2-30 | Medium | 1.5" | 3000K | 10W | 750Lm |

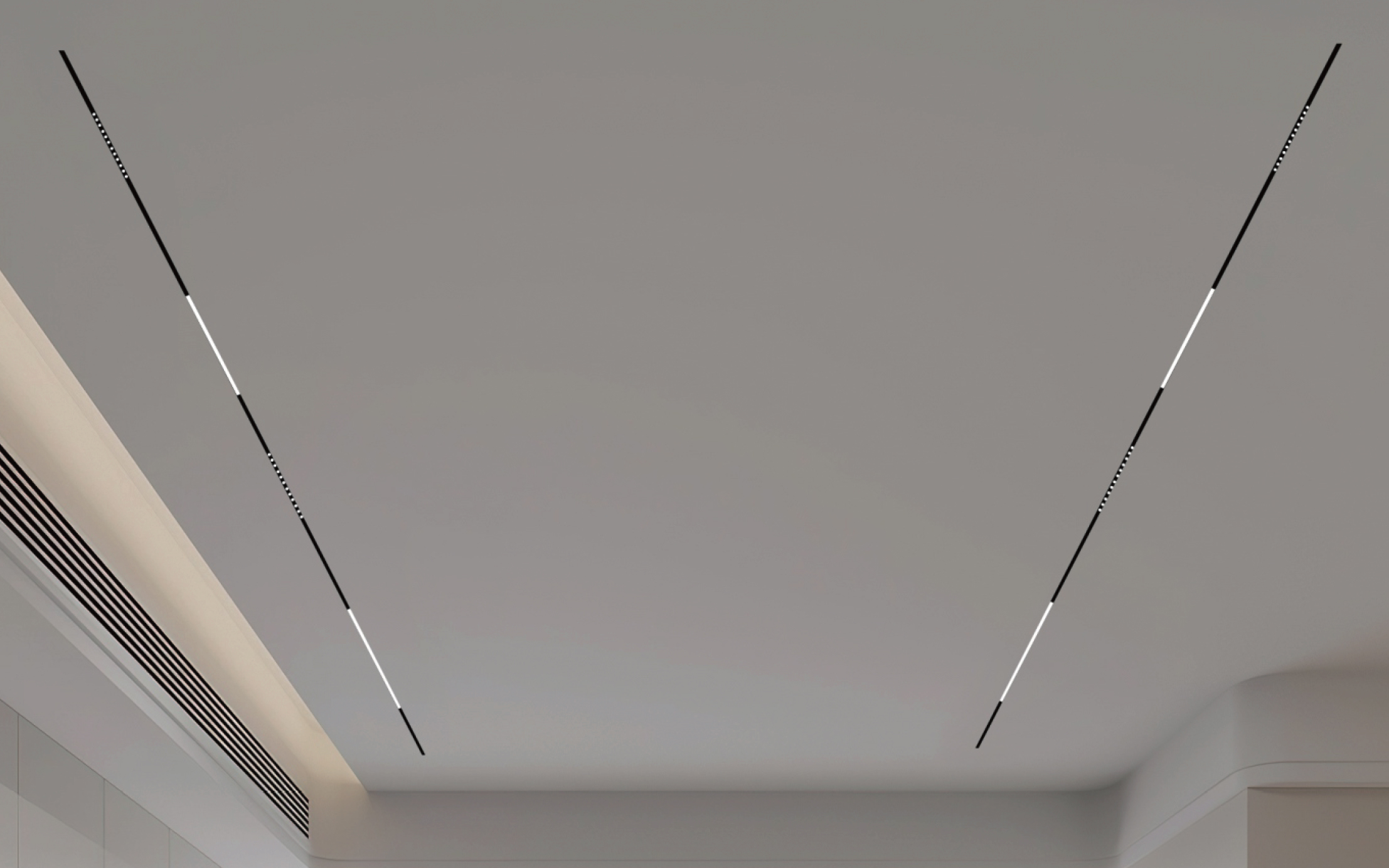

NANO TRACK SYSTEM
Download
Cut sheets
TechoLED-NANO-TRACK-SYSTEM.pdfThe TechoLED NANO Track System is the world’s smallest track, with an aperture of just 0.2”. The track has virtually unlimited capability to create shapes and patterns. It can be installed surface-mounted, mud-in recessed, and projecting. Light components, ranging from solid lensed and louvered to spots and cylinders, snap in and out magnetically by hand, without tools. It is the ultimate minimalistic lighting solution for any modern interior.
LED: Bridgelux LED Chips, 2700-5000K, 90+ CRI
Optical: Direct illumination, multiple beam angles available on all louvered and spot modules.
Construction: High-grade aluminum extrusions, 24V remote driver, powder coat finish, continuous linear runs, X, T, L as well as wall-to-ceiling and inner/outer corners available for virtually unlimited patterns

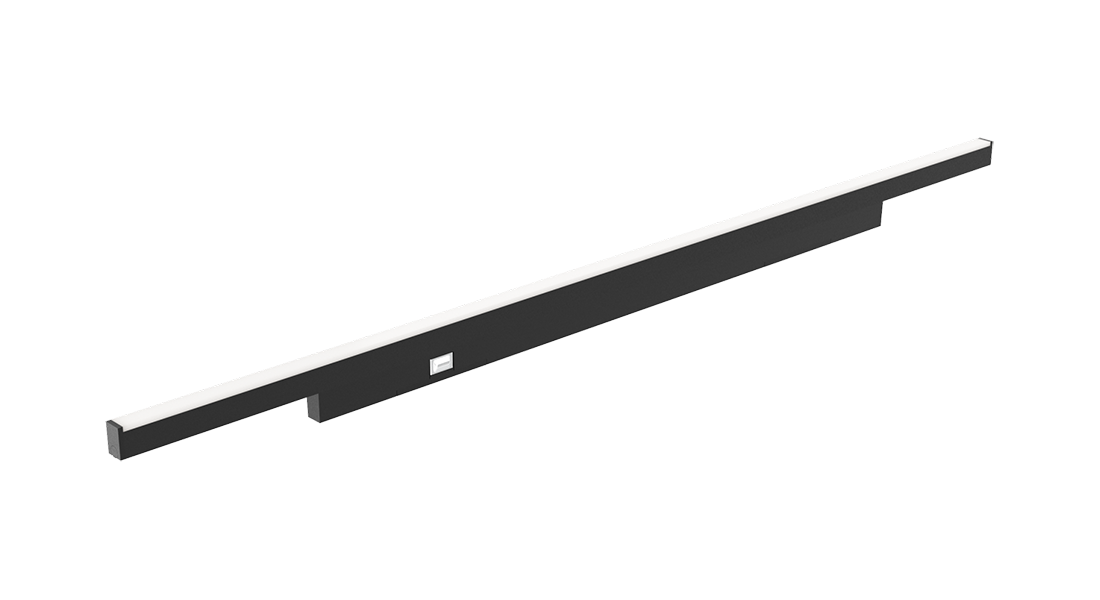

NANO TRACK SYSTEM - SLIM SOLID LINEAR MODULE
Download
The TechoLED NANO Track System is the world’s smallest track, with an aperture of just 0.2”. The track has virtually unlimited capability to create shapes and patterns. It can be installed surface-mounted, mud-in recessed, and projecting. Light components, ranging from solid lensed and louvered to spots and cylinders, snap in and out magnetically by hand, without tools. It is the ultimate minimalistic lighting solution for any modern interior.
LED: Bridgelux LED Chips, 2700-5000K, 90+ CRI
Optical: Direct illumination, 110° beam angle
Construction: High-grade aluminum extrusion, PC diffuser, powder coat finish, custom finishes available, 24V remote driver
| Model | Output | Length | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-NT-SSL-ME-10-30-B | Medium | 1' | 3000K | 5W | 230Lm |
