Line Voltage Track Series

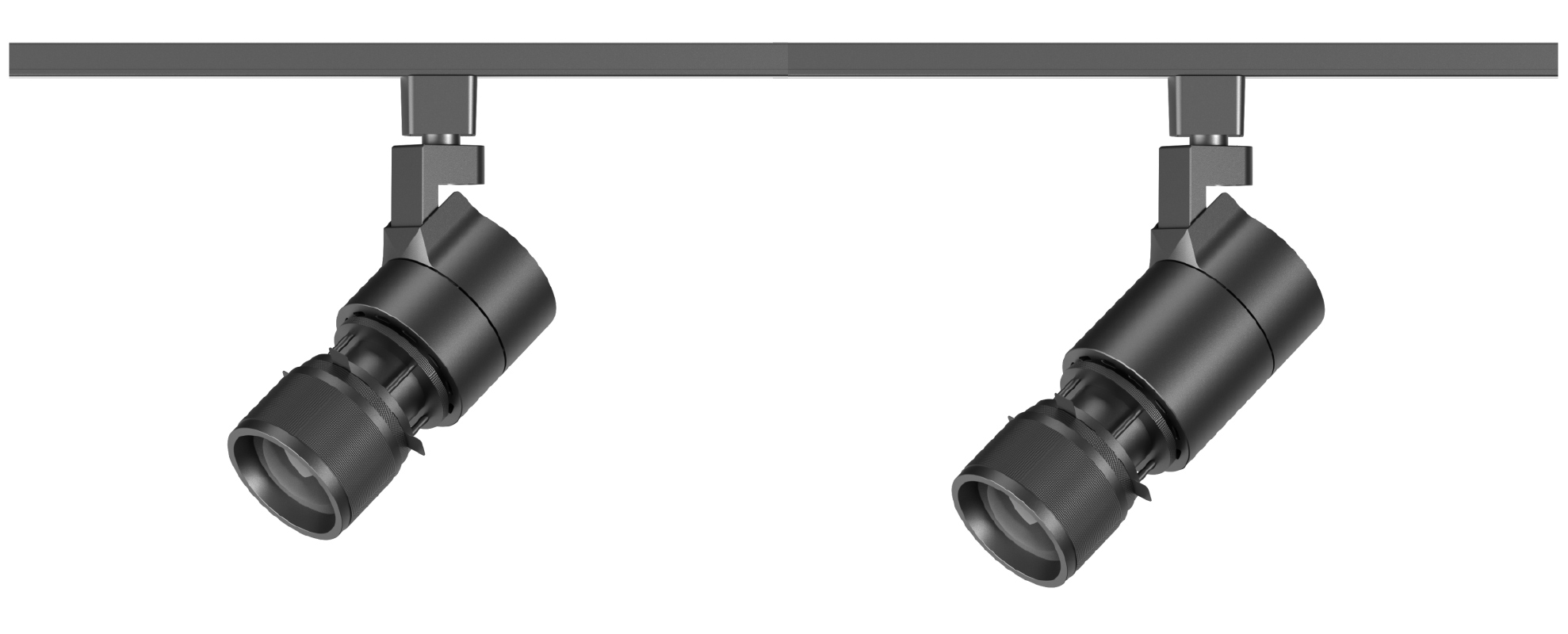

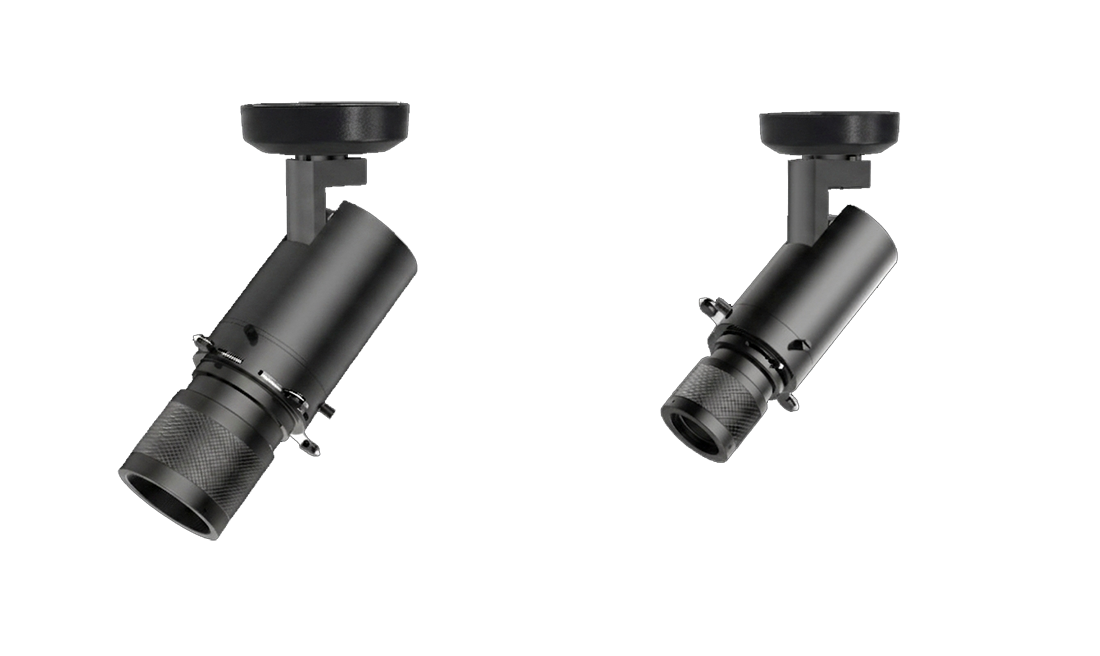

X SERIES TRACK SYSTEM - FRAMEPRO PROJECTOR MODULE
The TechoLED FramePro Projector is a specification grade framing projector designed for precise beam shaping and accent lighting. With adjustable framing shutters, iris diaphragm, high-quality optics, and clean edge definition, FramePro is ideal for highlighting artwork, displays, architectural details, and focal points. A refined and flexible projector solution for modern commercial, hospitality, retail, gallery, and residential applications.
LED: Cree LED Chips, 2700-4000K, 95+ CRI
Optical: Direct illumination, 3°-45° beam angles (field adjustable), framing shutters, iris diaphragm
Construction: 100-120V input voltage. High-grade die cast aluminum, powder coat finish, custom finishes available, TRIAC dimming
| Model | Output | Beam Angle | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-XP-ME-ADJ-30-B-H | Medium | Adjustable | 3000K | 10W | 404Lm |
| TECHOLED-XP-HI-ADJ-30-B-H | High | Adjustable | 3000K | 20W | 805Lm |

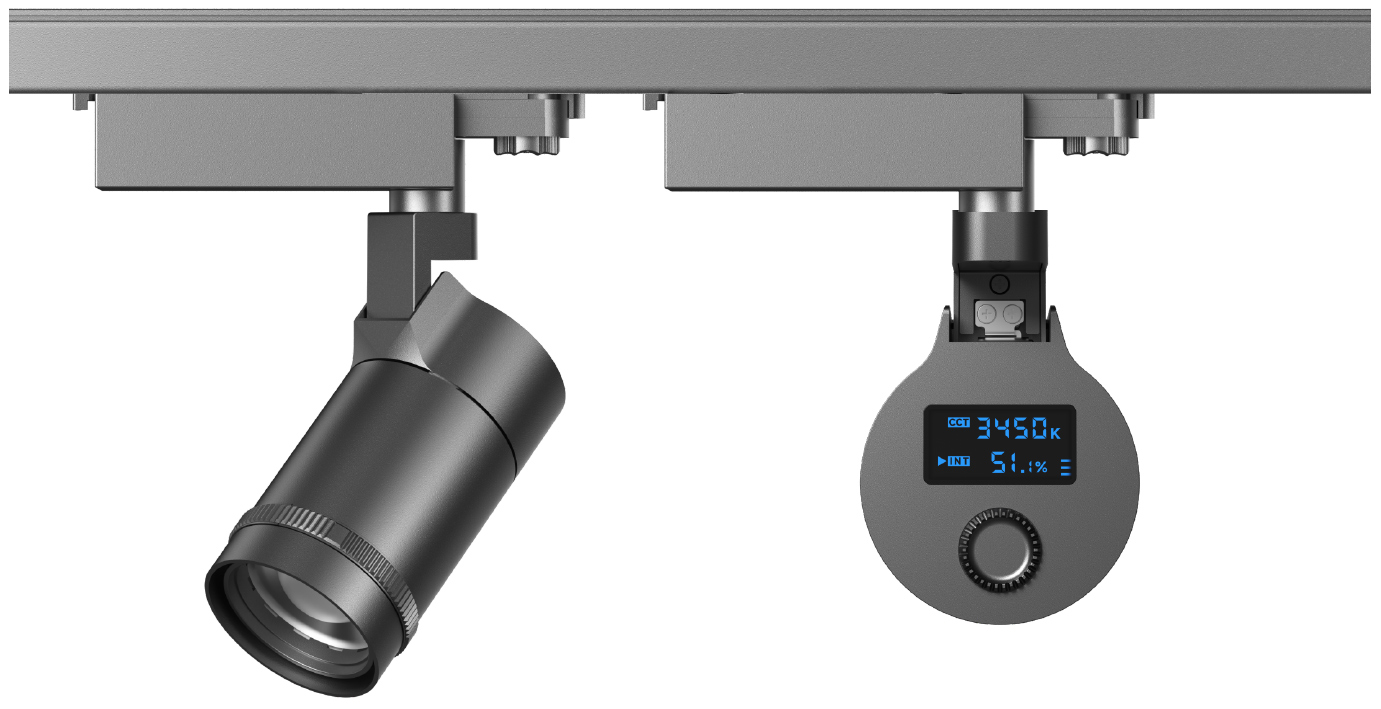

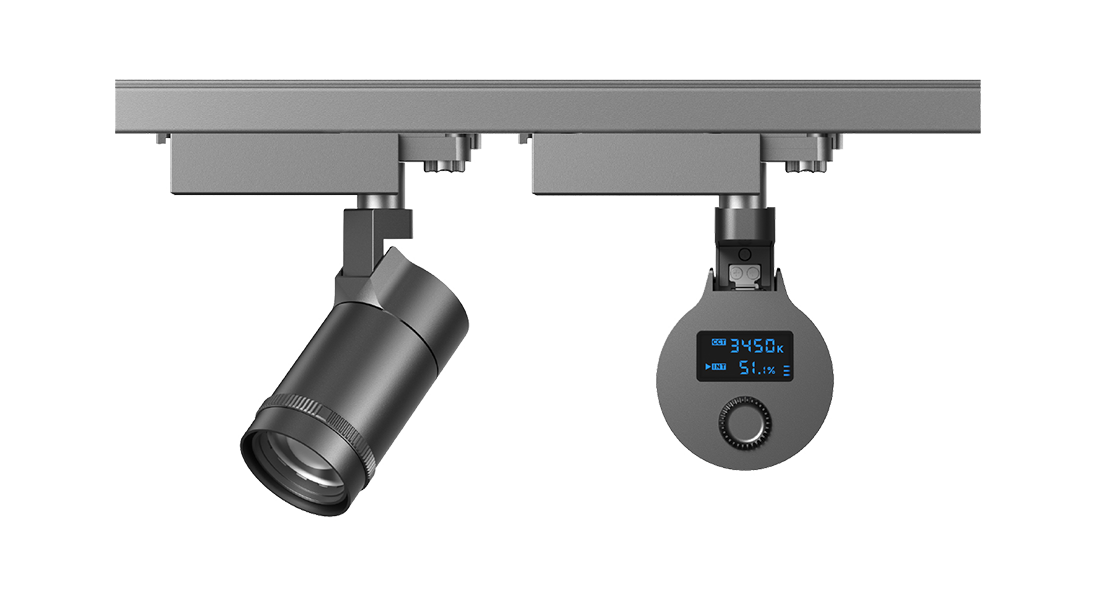

X SERIES TRACK SYSTEM - DYNAMIC MODULE
The TechoLED X Line Series is a specification grade, track lighting system. Track heads ranging from simple, high output models, to projectors with museum grade optics and light quality. Wide range of accessories and adapters for compatibility with all major tracks. Versatile and sophisticated lighting solution for all modern commercial and
residential applications.
LED: Cree LED Chips, 2700-5000K (field adjustable), 95+ CRI
Optical: Direct illumination, 25°-60° beam angle, field adjustable
Construction: 120V input voltage. High-grade die cast aluminum, powder coat finish, custom finishes available, digital display to adjust output and color temperature
| Model | Beam Angle | Output | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-XD-F-ADJ-D | 25° - 60° | Adjustable | 3000K | 0-25W | 0-1898Lm |

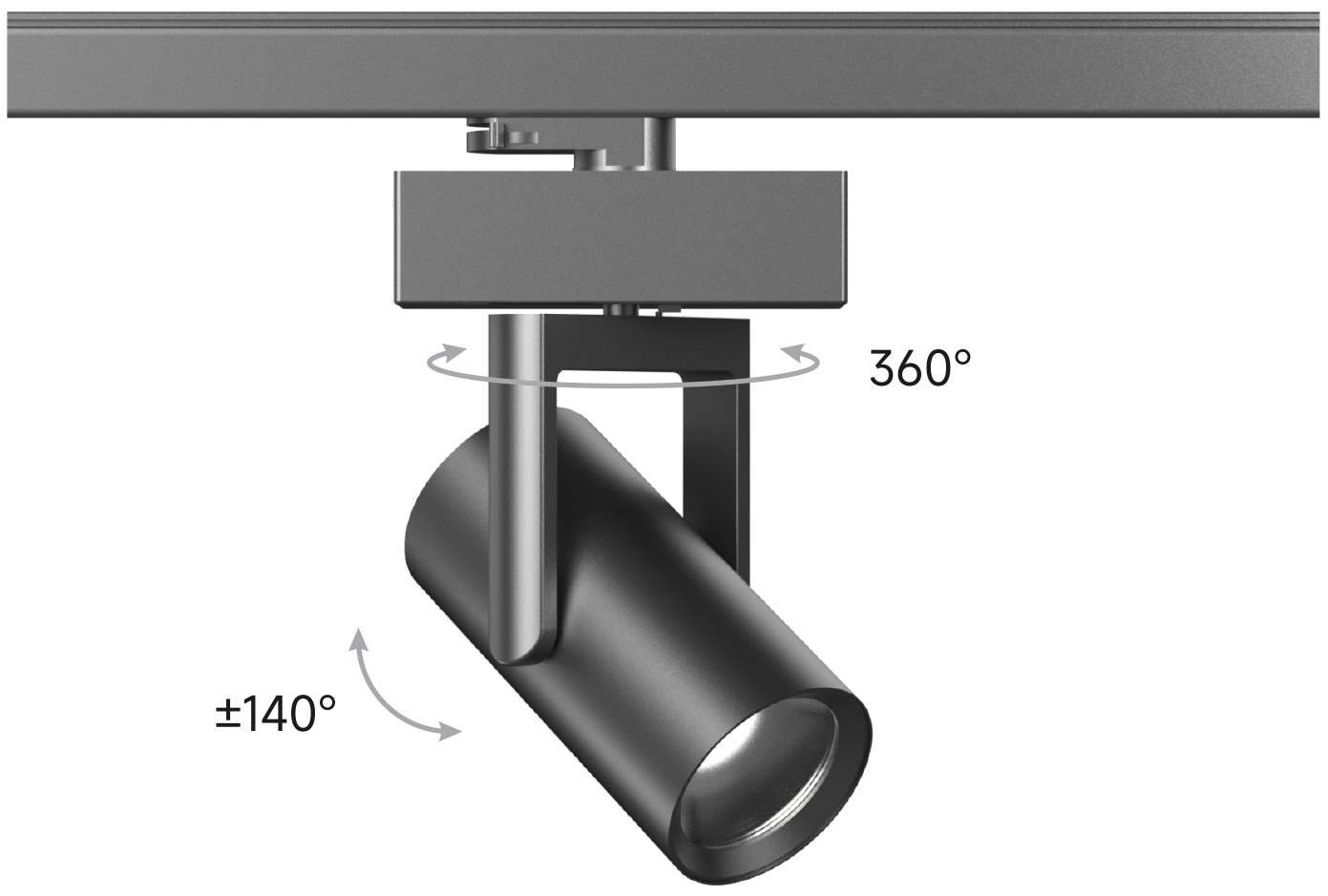

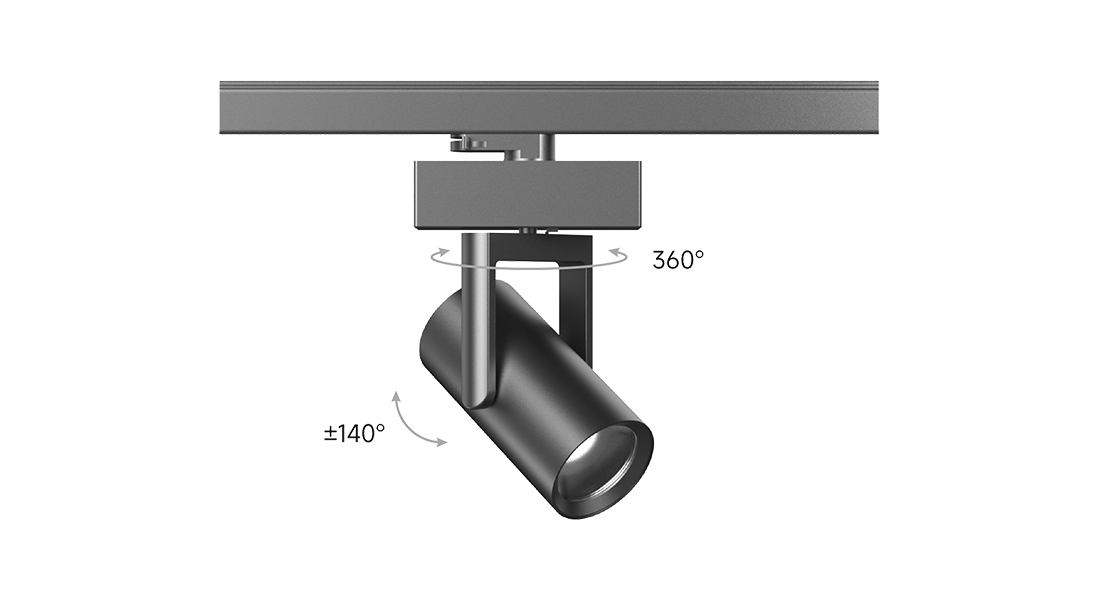

X SERIES TRACK SYSTEM - KINETIC MODULE
The TechoLED X Line Series is a specification grade, track lighting system. Track heads ranging from simple, high output models, to projectors with museum grade optics and light quality. Wide range of accessories and adapters for compatibility with all major tracks. Versatile and sophisticated lighting solution for all modern commercial and
residential applications. Wireless controlled motorized movement, CCT and output.
LED: Cree LED Chips, 2700-5000K (field adjustable), 95+ CRI
Optical: Direct illumination, 18°-60° beam angles available
Construction: 120V input voltage. Motorized, app-controlled movement. High-grade die cast aluminum, powder coat finish, custom finishes available
| Model | Output | Beam Angle | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-XK-F-ADJ-D-B-H-HL | Adjustable | 18°- 60° | 3000K | 0-30W | 0-1800Lm |

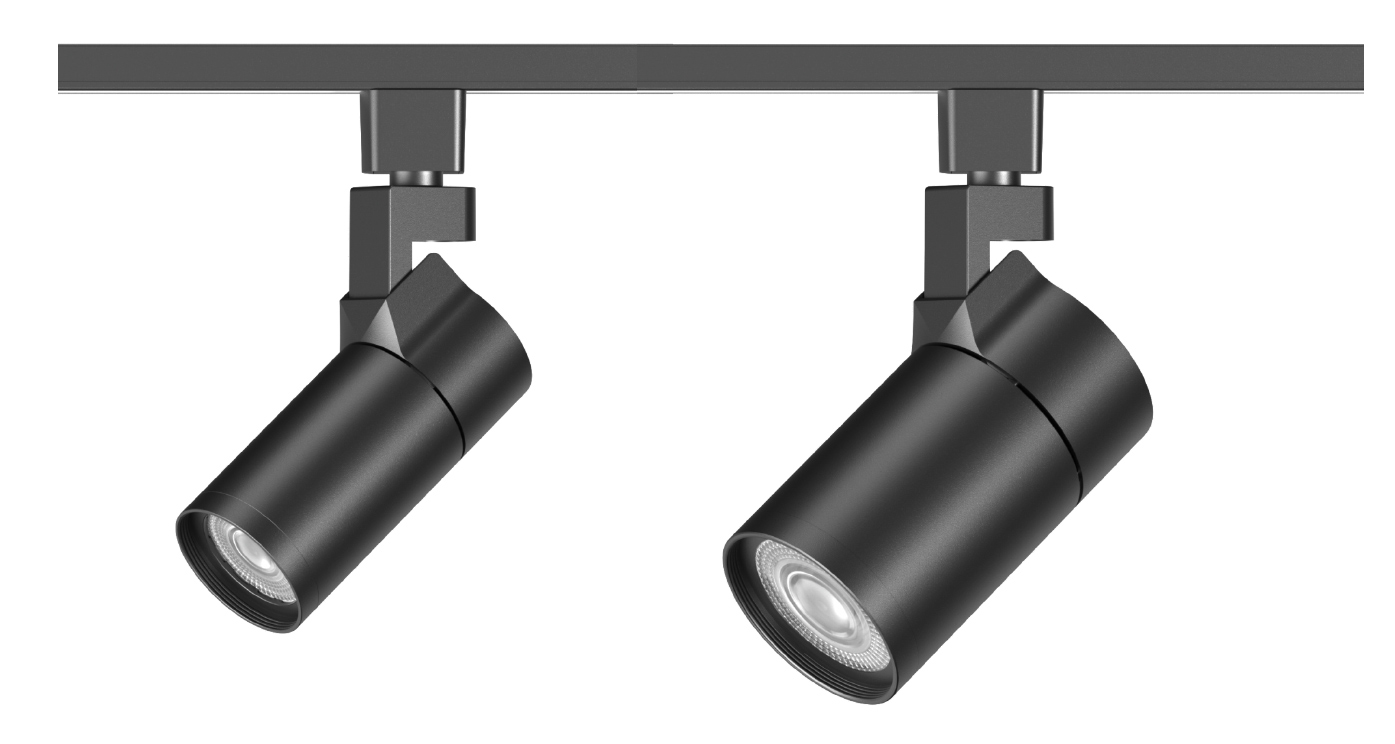

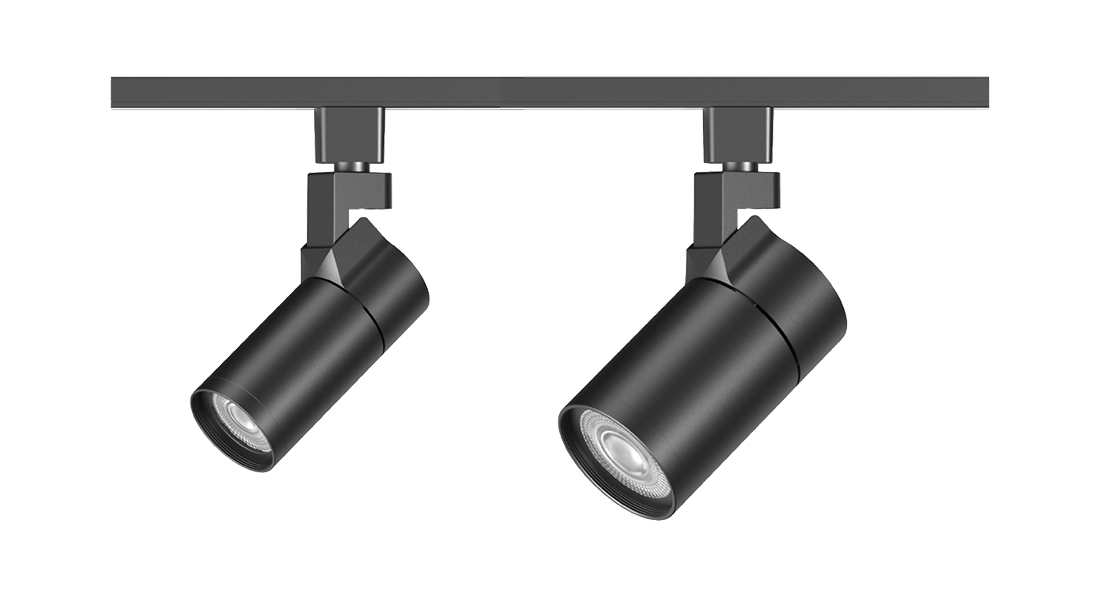

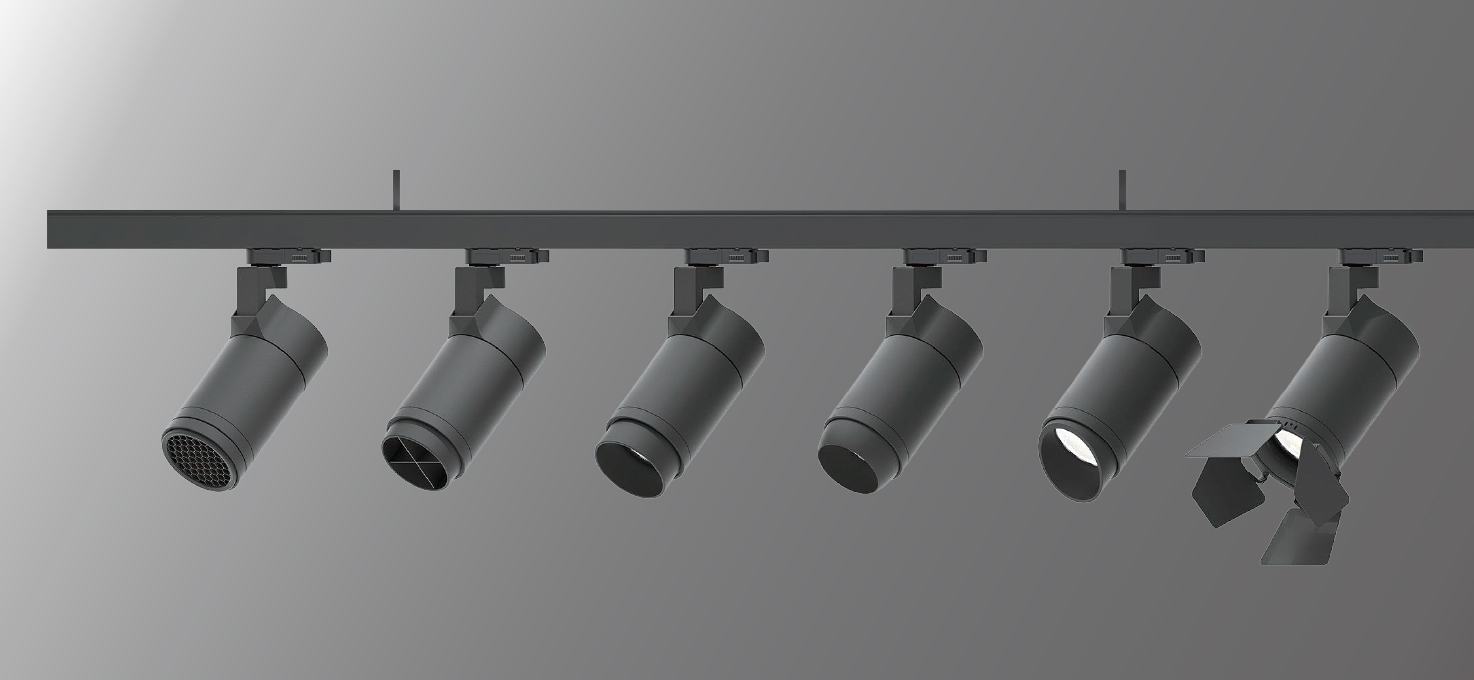

X SERIES TRACK SYSTEM - CORE MODULE
The TechoLED X Line Series is a specification grade, track lighting system. Track heads ranging from simple, high output models, to projectors with museum grade optics and light quality. Wide range of accessories and adapters for compatibility with all major tracks. Versatile and sophisticated lighting solution for all modern commercial and residential applications.
LED: Cree LED Chips, 2700-5000K, 95+ CRI
Optical: Direct illumination, 15°-60° beam angles available
Construction: 120V input voltage. High-grade die cast aluminum, powder coat finish, custom finishes available
| Model | Beam Angle | Output | Color Temp | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-XC-LO-15-30-B-H-HL | 15° | Low | 3000K | 10W | 964Lm |
| TECHOLED-XC-ME-15-30-B-H-HL | 15° | Medium | 3000K | 20W | 1349Lm |
| TECHOLED-XC-HI-15-30-B-H-HL | 15° | High | 3000K | 30W | 2590Lm |

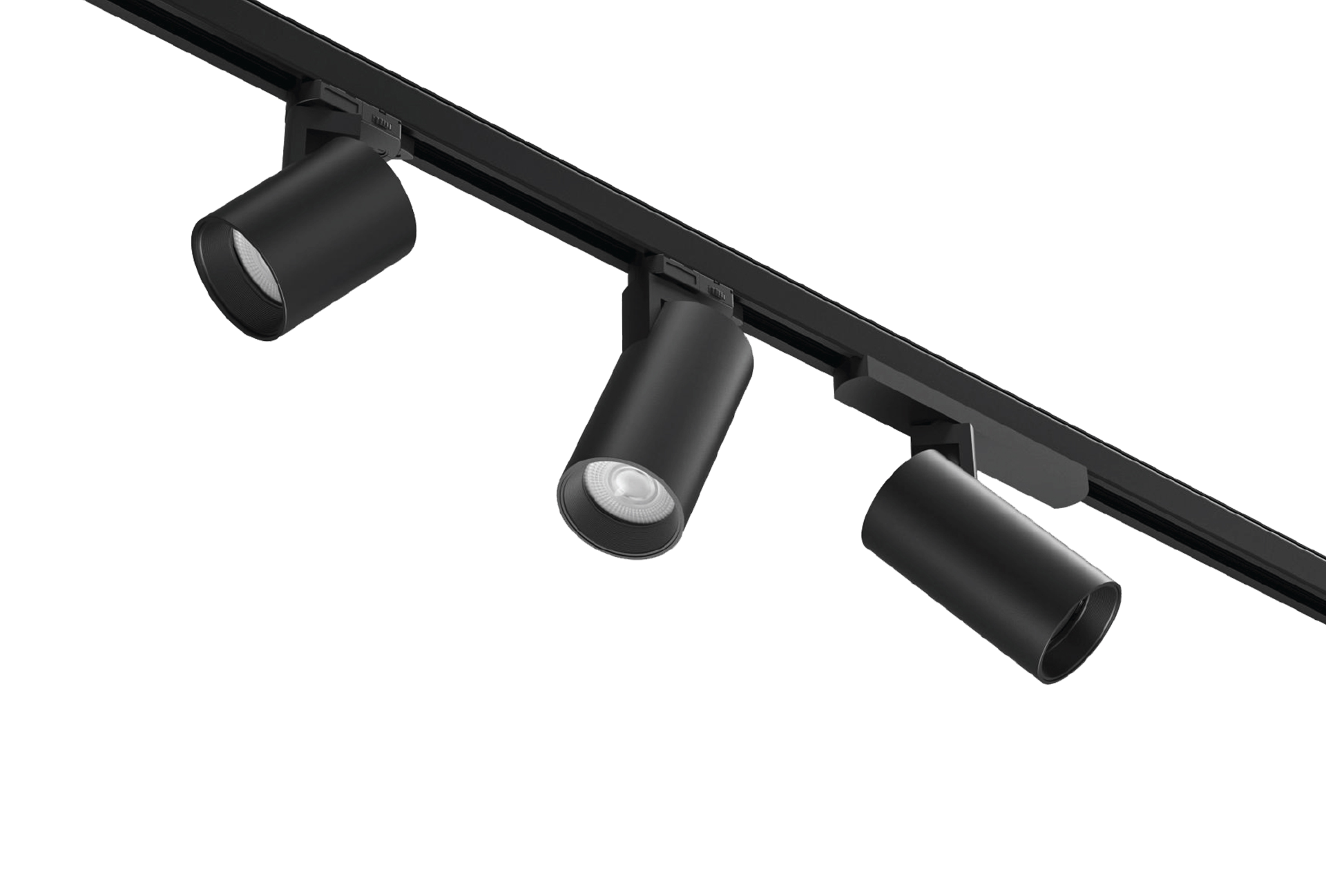

X SERIES TRACK SYSTEM - 4 PIN TRACK
The TechoLED X Line Series is a specification grade, track lighting system. Track heads ranging from simple, high output models, to projectors with museum grade optics and light quality. Wide range of accessories and adapters for compatibility with all major tracks. Versatile and sophisticated lighting solution for all modern commercial and residential applications.
Construction: High grade aluminum extrusion, 120V input voltage, 2 circuit
