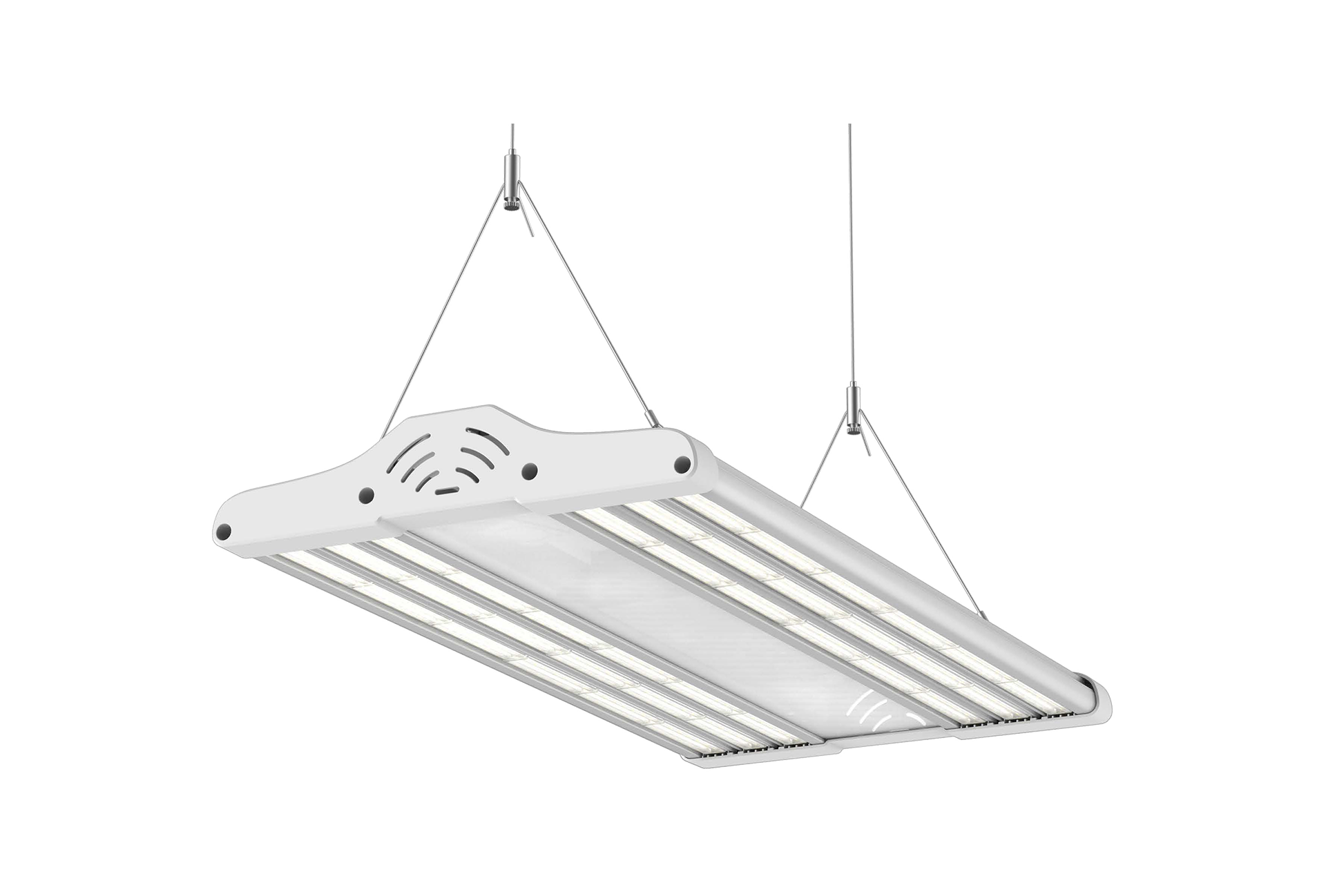

Panel High Bay Series
PANEL HIGH BAY
Download
Cut sheets
TechoLED-PANEL-HIGH-BAY.pdfIndoor linear high bay fixture, pendant and surface mount installation
LED: Nichia LED chips, High efficiency, 3000-6000K
Optical: Direct illumination, multiple beam angles, wall wash and batwing distribution available
Construction: High grade aluminum extrusion, die cast end caps, powder coat finish integral driver
| Model # | Wattage | Lumen Output | Voltage |
|---|---|---|---|
| TechoLED-LHB03-60 | 60 W | 6600Lm | 100-277V |
| TechoLED-LHB03-90 | 90 W | 9900Lm | 100-277V |
| TechoLED-LHB03-120 | 120 W | 13200Lm | 100-277V |
| TechoLED-LHB03-150 | 150 W | 16500Lm | 100-277V |
| TechoLED-LHB03-180 | 180 W | 19800Lm | 100-277V |
| TechoLED-LHB03-240 | 240 W | 26400Lm | 100-277V |
| TechoLED-LHB03-300 | 300 W | 33000Lm | 100-277V |
| TechoLED-LHB03-400 | 400 W | 44000Lm | 100-277V |
| Fixture Material | Ingress Protection | Life Span | Junction Temperature (Tj) | Storage Temperature | Operating Temperature | Operating Humidity | Input Voltage | Export Carton Size (2PCS/CTN) |
|---|---|---|---|---|---|---|---|---|
| High Grade Aluminum | IP20 | >50000Hrs (Ta=30°C@L70) | <75°C(Ta=30°) | -40~+70ºC | -30~+50ºC | 15~90%RH | 100-277V (277-480 optional) | 26.77x6.88x14.17 inches |
