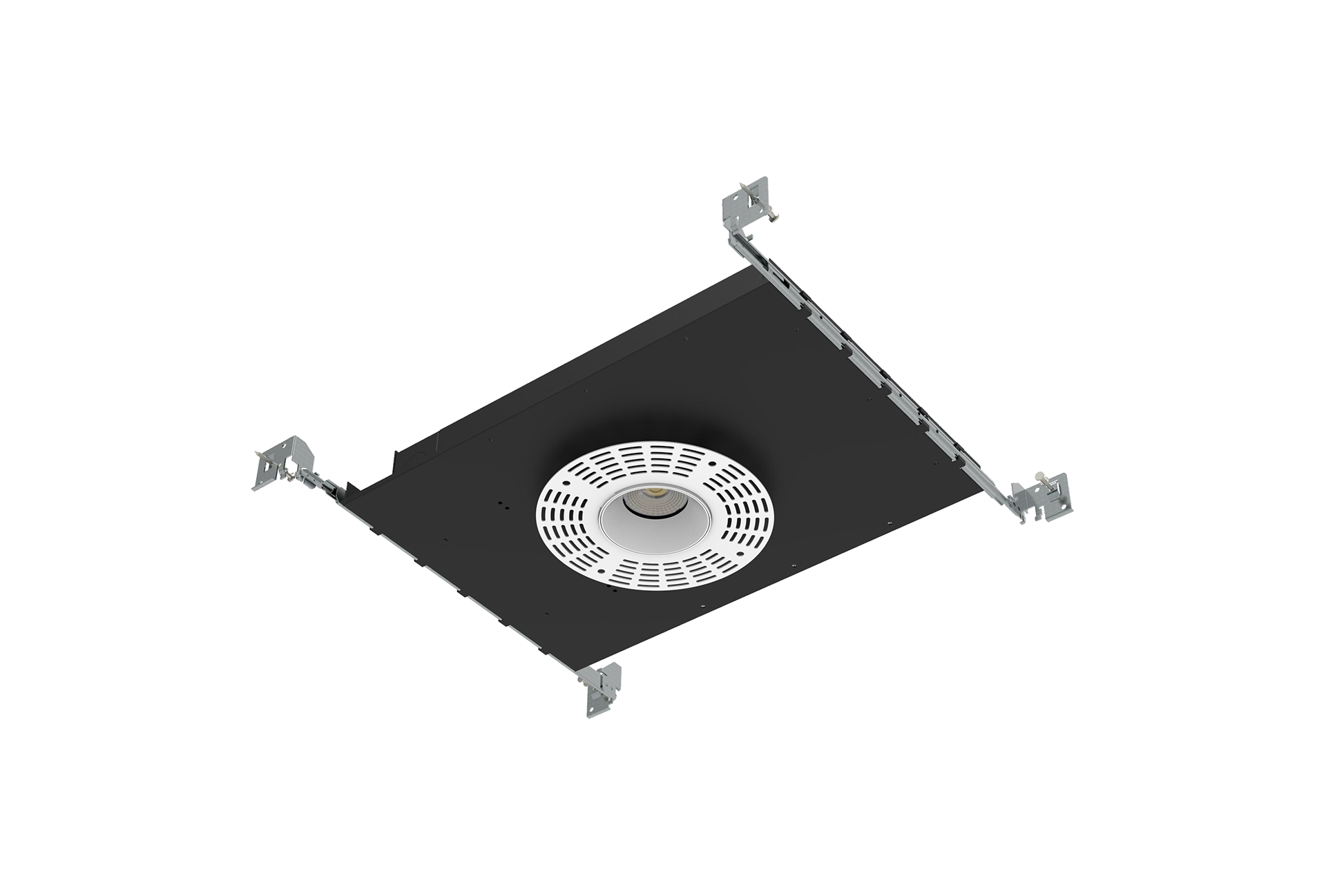

SD-R-3 Series
SD-R-3-SERIES
Download
IES files
TECHOLED-SD-R.zipCut sheets
TechoLED-SD-R-3-SERIES.pdfSD-R-3 Series are specification grade shallow downlights, featuring simple look, high efficacy and high-quality components. Designed for new construction recessed applications, available in wide variety of color temperatures and lumen outputs, as well as multiple trim and reflector finish options. Great lighting solution for any modern interior.
LED: Cree-LED Chips, 2700-6000K, 90+CRI
Optical: 12°, 24° and 36° beam angle options
Construction: 3” round aperture, high grade steel 2.5” shallow housing, frosted Perspex diffuser, integral driver,
powder coat finish, trimmed or trimless, damp location listed
| Model | Size | Wattage | Distribution | Color Temp. | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-SD-R-3-D-10-30-12-U | 3” | 10W | Direct | 3000K | 900Lm |
| TECHOLED-SD-R-3-D-16-30-12-U | 3” | 16W | Direct | 3000K | 1440Lm |
| TECHOLED-SD-R-3-D-23-30-12-U | 3” | 23W | Direct | 3000K | 2070Lm |
