IP 66 Series
IP SERIES
Download

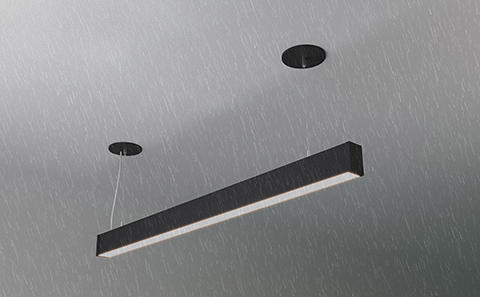

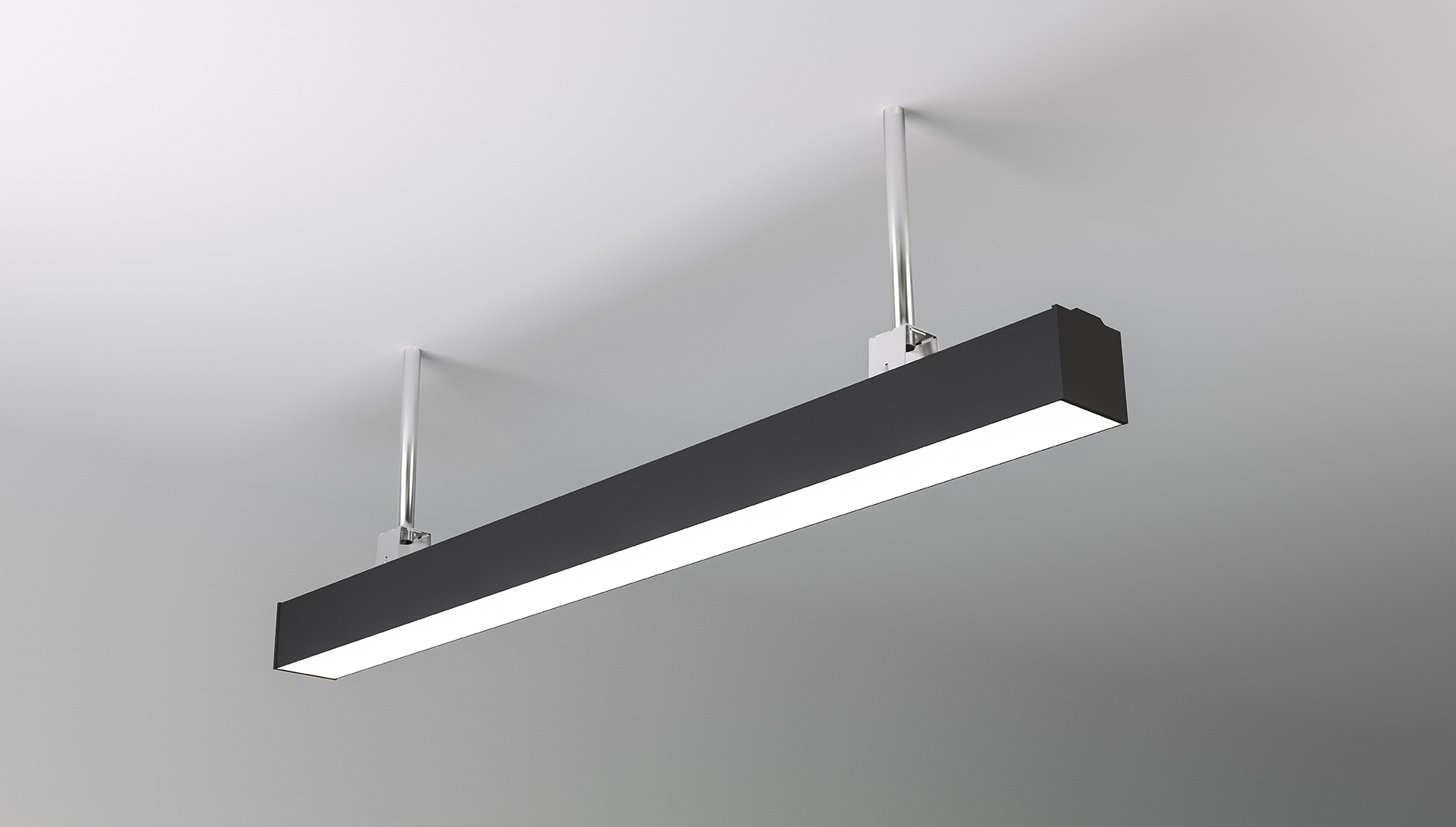

IP Series is specification grade, outdoor architectural linear fixture, with IP66 – fully exposed to elements – rating, ability to do continuous linear runs. Offered in pendant, surface or all mounted versions. Wide ranging customization options, from custom lumen packages, sizes and finishes. Great and simple lighting solution for all modern interiors.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W available, 90CRI
Optical: Direct and Direct/Indirect illumination, 106° beam angle
Construction: High grade aluminum extrusion, die cast end caps, PMMA diffuser, integral driver, powder coat finish, waterproof IP66, IK 10 impact rating,
| Model # | Length | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-IP-D-4-LO-30 | 4' | Low | 3000K | 23W | 2599Lm |
| TECHOLED-IP-D-4-ME-30 | 4' | Medium | 3000K | 34W | 3842Lm |
| TECHOLED-IP-D-4-HI-30 | 4' | High | 3000K | 45W | 5085Lm |
| TECHOLED-IP-D-6-LO-30 | 6' | Low | 3000K | 34W | 3842Lm |
| TECHOLED-IP-D-6-ME-30 | 6' | Medium | 3000K | 51W | 5763Lm |
| TECHOLED-IP-D-6-HI-30 | 6' | High | 3000K | 68W | 7684Lm |
| TECHOLED-IP-D-8-LO-30 | 8' | Low | 3000K | 46W | 5198Lm |
| TECHOLED-IP-D-8-ME-30 | 8' | Medium | 3000K | 68W | 7684Lm |
| TECHOLED-IP-D-8-HI-30 | 8' | High | 3000K | 90W | 10170Lm |
| Model # | Length | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-IP-DI-4-LO-30 | 4' | Low | 3000K | 41W | 2599Lm | 1668Lm |
| TECHOLED-IP-DI-4-ME-30 | 4' | Medium | 3000K | 52W | 3842Lm | 1668Lm |
| TECHOLED-IP-DI-4-HI-30 | 4' | High | 3000K | 63W | 5085Lm | 1668Lm |
| TECHOLED-IP-DI-6-LO-30 | 6' | Low | 3000K | 60W | 3842Lm | 2502Lm |
| TECHOLED-IP-DI-6-ME-30 | 6' | Medium | 3000K | 77W | 5763Lm | 2502Lm |
| TECHOLED-IP-DI-6-HI-30 | 6' | High | 3000K | 94W | 7684Lm | 2502Lm |
| TECHOLED-IP-DI-8-LO-30 | 8' | Low | 3000K | 81W | 5198Lm | 3336Lm |
| TECHOLED-IP-DI-8-ME-30 | 8' | Medium | 3000K | 103W | 7684Lm | 3336Lm |
| TECHOLED-IP-DI-8-HI-30 | 8' | High | 3000K | 125W | 10170Lm | 3336Lm |
