IP 2 Series
IP-2 SERIES
Download
IES files
TECHOLED-IP2.zipCut sheets

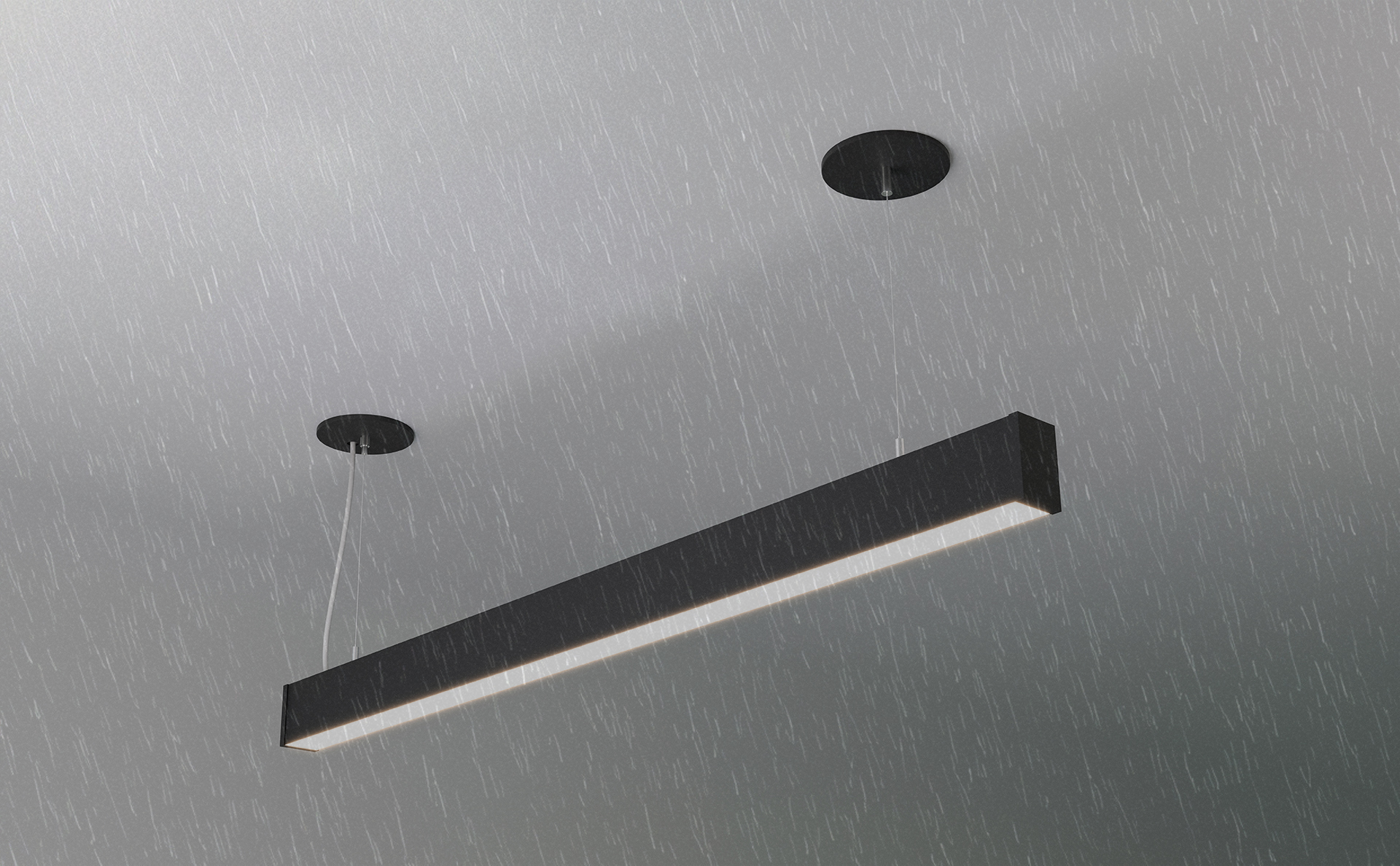

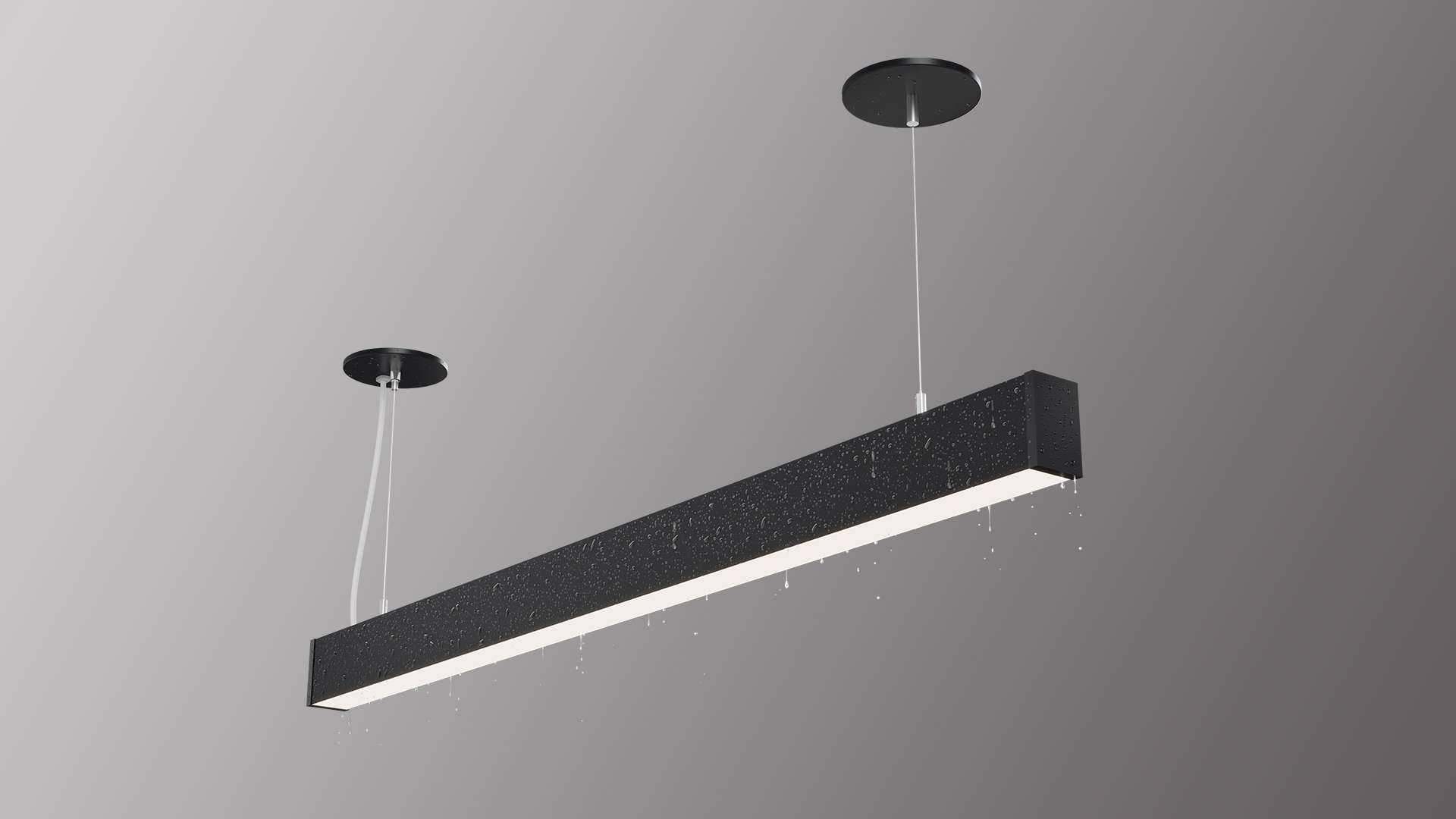

TechoLED-IP-2-SERIES.pdfIP-2 Series is specification grade, slim 2” outdoor architectural linear fixture, with IP65 – fully exposed to elements – rating, ability to do continuous linear runs. Offered in pendant, surface or all mounted versions. Wide ranging customization options, from custom lumen packages, sizes and finishes. Great lighting solution for all modern exteriors.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W available, 90CRI
Optical: Direct and Direct/Indirect illumination, 106° beam angle
Construction: High grade aluminum extrusion, die cast end caps, PMMA diffuser, integral driver, powder coat finish, waterproof IP65, IK-8 impact rating
| Model # | Length | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-IP2-D-4-LO-30 | 4' | Low | 3000K | 15W | 1440Lm |
| TECHOLED-IP2-D-4-ME-30 | 4' | Medium | 3000K | 23W | 2208Lm |
| TECHOLED-IP2-D-4-HI-30 | 4' | High | 3000K | 31W | 2976Lm |
| TECHOLED-IP2-D-6-LO-30 | 6' | Low | 3000K | 23W | 2208Lm |
| TECHOLED-IP2-D-6-ME-30 | 6' | Medium | 3000K | 34W | 3264Lm |
| TECHOLED-IP2-D-6-HI-30 | 6' | High | 3000K | 45W | 4320Lm |
| TECHOLED-IP2-D-8-LO-30 | 8' | Low | 3000K | 31W | 2976Lm |
| TECHOLED-IP2-D-8-ME-30 | 8' | Medium | 3000K | 46W | 4416Lm |
| TECHOLED-IP2-D-8-HI-30 | 8' | High | 3000K | 61W | 5856Lm |
