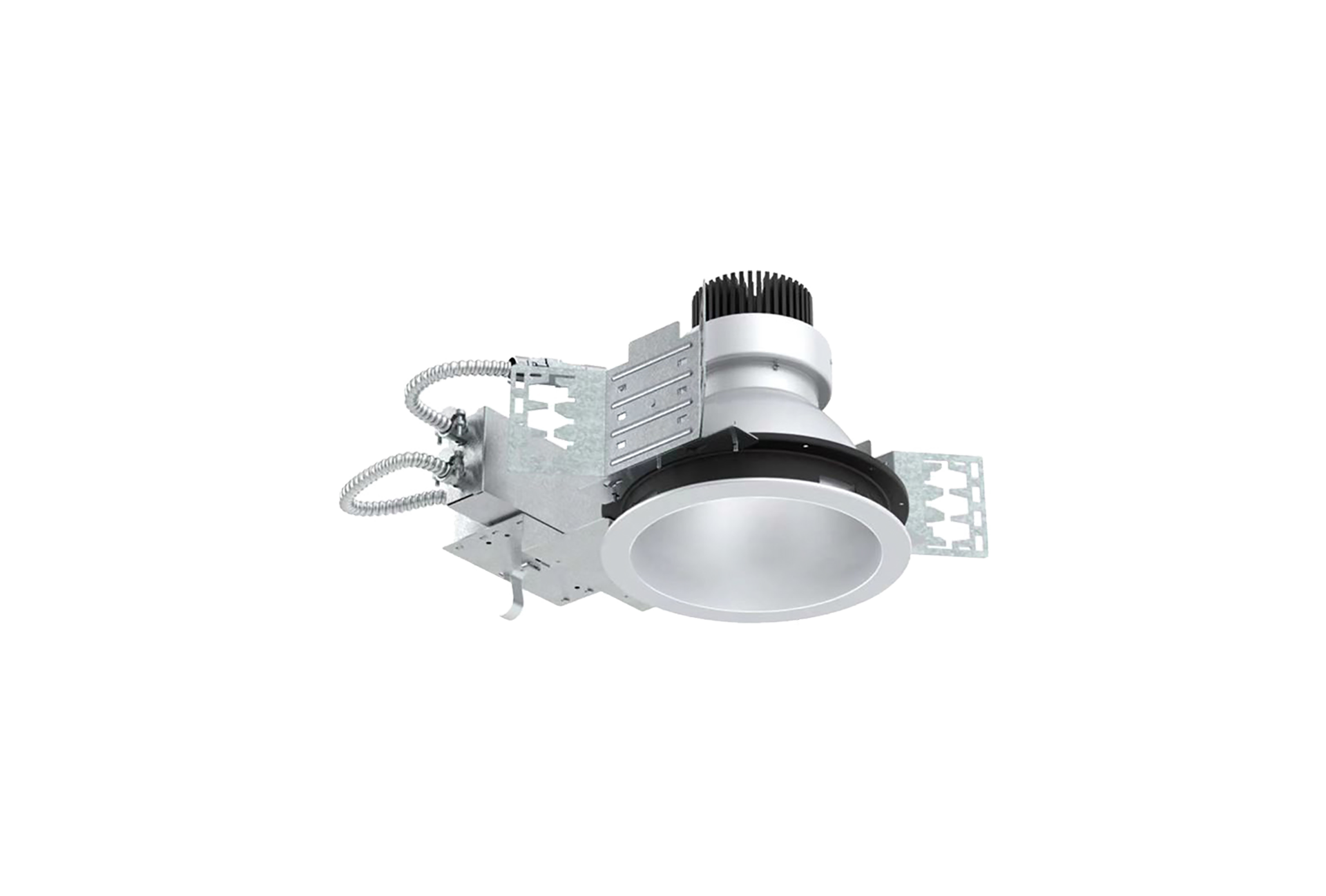

DL-R-6 Series
DL-R-6 SERIES
Download
IES files
TechoLedTechoLED-DL-R-6.iesCut sheets

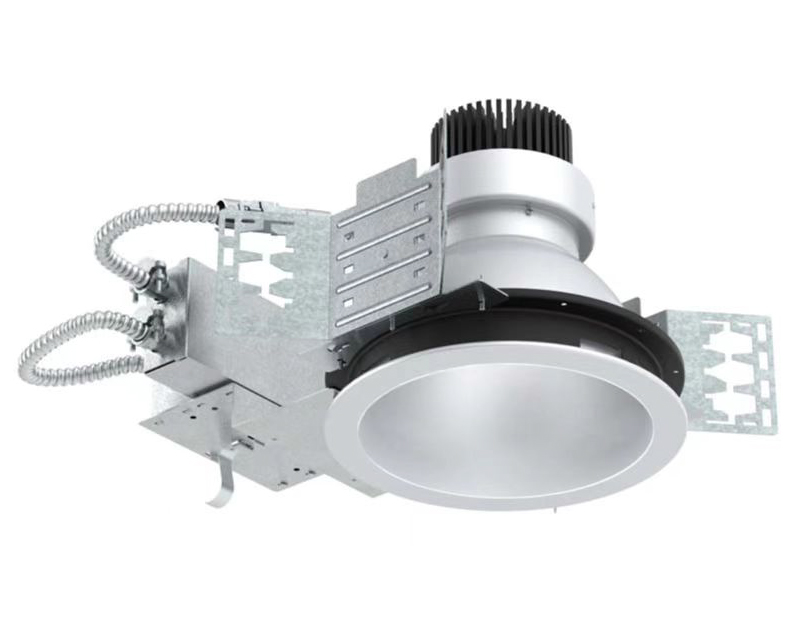

TechoLED-DL-R-6 SERIES.pdfDL-R-6 Series are specification grade downlights, featuring simple look, high efficacy and high-quality components. Designed for new construction recessed applications, available in wide variety of color temperature and lumen outputs, as well as multiple trim and reflector finish options. Great lighting solution for any modern interior.
LED: Samsung LED Chips, 2700-5000K, 80CRI (90CRI optional)
Optical: 6” aperture, 60° Beam angle
Construction: High grade aluminum and sheet metal construction, Integral driver, Powder coat finish
| Model | Size | Wattage | Color Temp. | Lumen Output |
|---|---|---|---|---|
| TECHOLED-DL-R-6-CR-HZ-20 | 6” | 20W | 2000Lm | 2000Lm |
| TECHOLED-DL-R-6-CR-HZ-25 | 6” | 25W | 2500Lm | 2500Lm |
| TECHOLED-DL-R-6-CR-HZ-30 | 6” | 30W | 3000Lm | 3000Lm |
| TECHOLED-DL-R-6-CR-HZ-32 | 6” | 32W | 3424Lm | 3424Lm |
