DL-A-6 Series

DL-A-6 Series

DL-A-6 SERIES

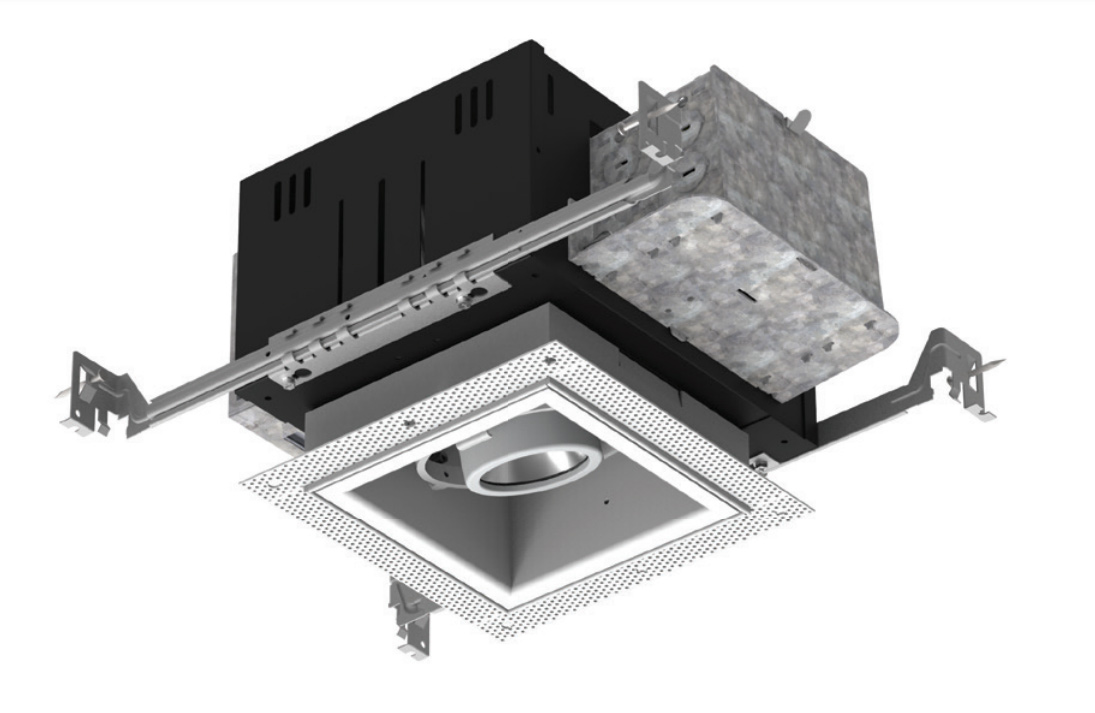

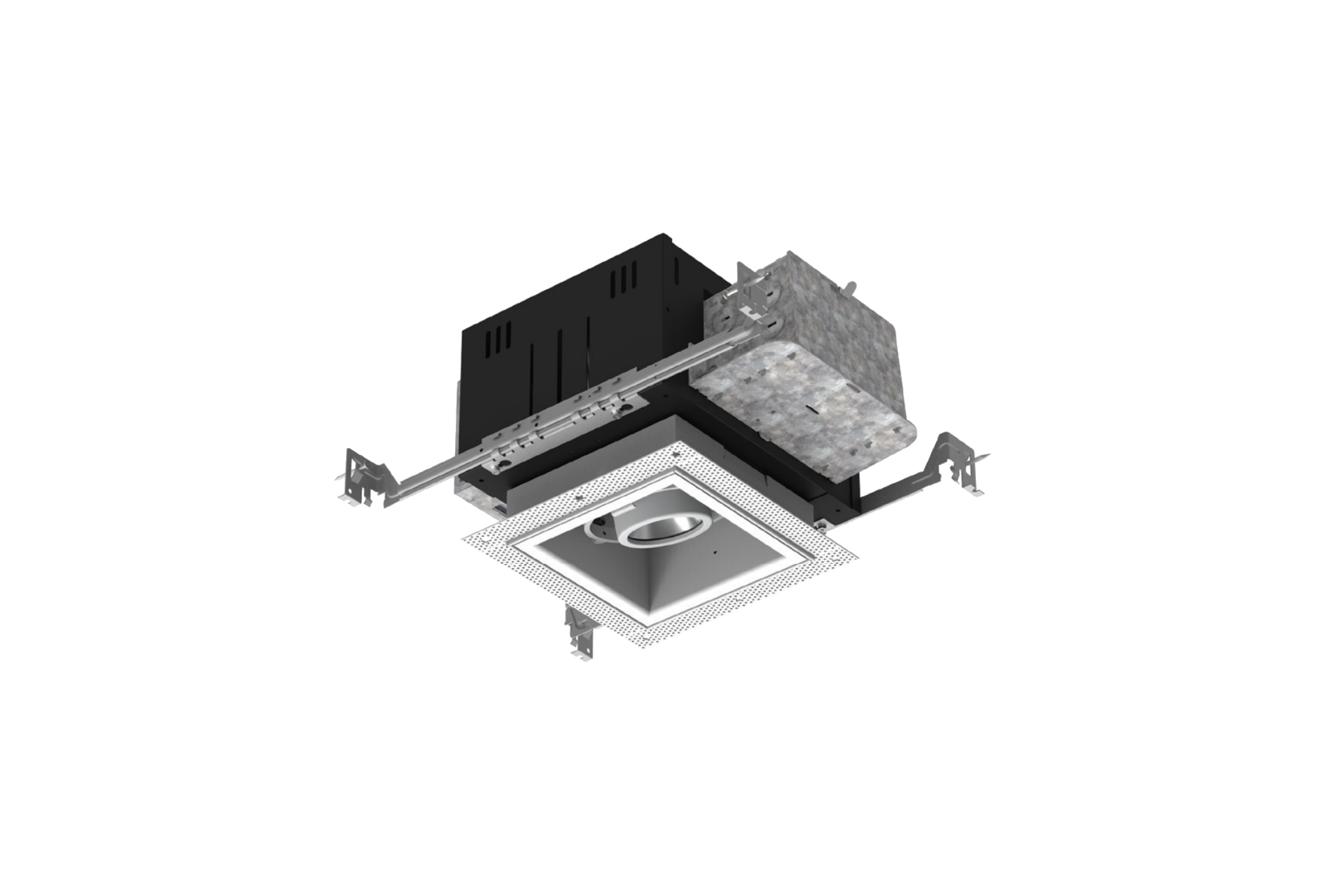

DL-A-6 Series are specification grade, 6” aperture gimbal downlights, featuring simple look, high efficacy and high-quality components. Designed for new construction recessed applications, available in wide variety of color temperature and lumen outputs, as well as multiple trim and reflector finish options. Great for illuminating walls,
signage and products.

LED: Osram, Seoul, Cree, LED Chips, 2700-4000K, 80CRI (90CRI optional)

Optical: 6” aperture, 12-54° Beam angle, gimbal

Construction: High grade steel housing, Integral driver, Powder coat finish, IC ratting optional

Etl
Model Size Wattage Distribution Color Temp. Lumen Output
TECHOLED-DL-A-6-A-30-27-12-U-W 6” 30W Direct 3000K 3000Lm
TECHOLED-DL-A-6-A-40-27-12-U-W 6” 40W Direct 3000K 4000Lm
TECHOLED-DL-A-6-A-50-27-12-U-W 6” 50W Direct 3000K 5000Lm
