BX 2UR Series
BX-2UR SERIES
Download
IES files
TECHOLED-BX-2UR.zipCut sheets

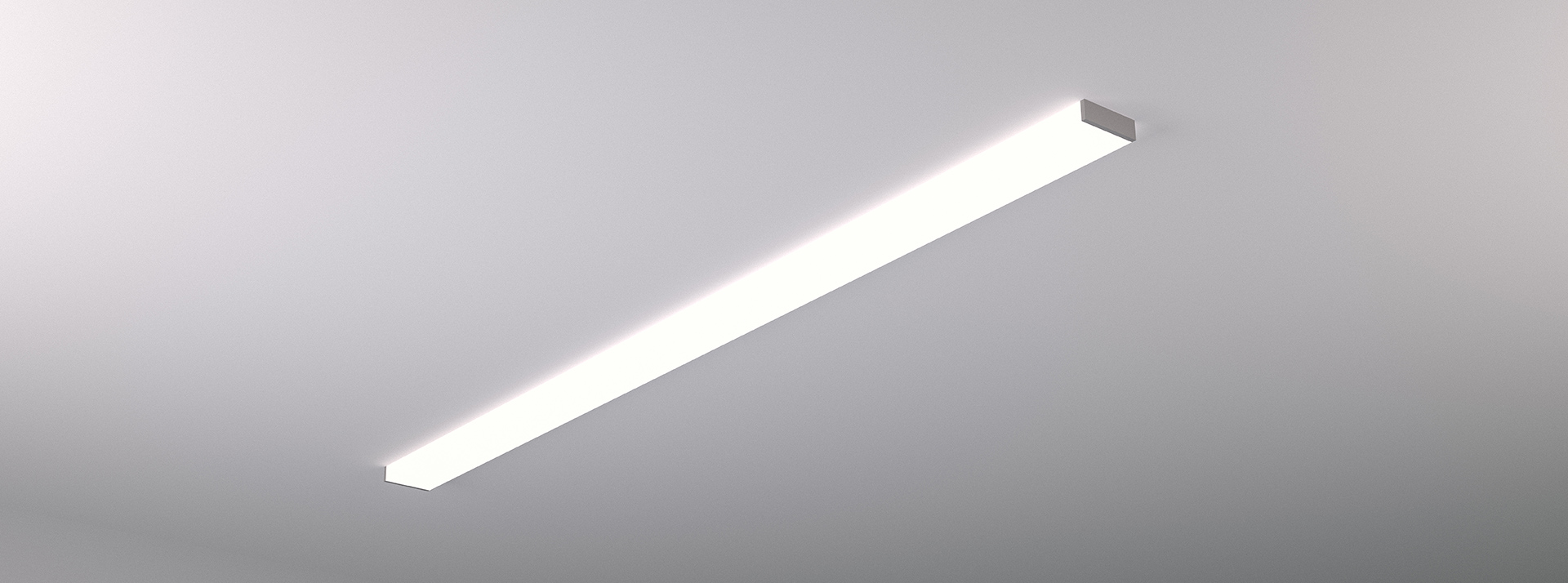

TechoLED-BX-2UR SERIES.pdfThe TechoLED BX series features specification-grade linear LED fixtures made from high-grade aluminum extrusions. Available in standard sizes from 2 to 8 feet, as well as custom lengths, recessed installation in variety of ceiling and materials. With virtually limitless options for creating patterns and shapes, the BX series provides a versatile, cost-effective, and modern lighting solution.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical Direct illumination, multiple beam angles available (110° beam angle on solid lens), UGR<19
Construction: Damp location listed, high grade aluminum extrusion, die cast end caps, PMMA diffuser, powder coat finish. X, T, L lit corners, wall to ceiling transitions, for smooth seamless patterns.
| Model | Size | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-BX-2UR-D-2-LO-30 | 2' | Low | 3000K | 12W | 1160Lm |
| TECHOLED-BX-2UR-D-2-ME-30 | 2' | Medium | 3000K | 18W | 1800Lm |
| TECHOLED-BX-2UR-D-2-HI-30 | 2' | High | 3000K | 23W | 2300Lm |
| TECHOLED-BX-2UR-D-4-LO-30 | 4' | Low | 3000K | 23W | 2320Lm |
| TECHOLED-BX-2UR-D-4-ME-30 | 4' | Medium | 3000K | 36W | 3600Lm |
| TECHOLED-BX-2UR-D-4-HI-30 | 4' | High | 3000K | 46W | 4600Lm |
| TECHOLED-BX-2UR-D-6-LO-30 | 6' | Low | 3000K | 35W | 3480Lm |
| TECHOLED-BX-2UR-D-6-ME-30 | 6' | Medium | 3000K | 54W | 5400Lm |
| TECHOLED-BX-2UR-D-6-HI-30 | 6' | High | 3000K | 69W | 6900Lm |
| TECHOLED-BX-2UR-D-8-LO-30 | 8' | Low | 3000K | 46W | 4640Lm |
| TECHOLED-BX-2UR-D-8-ME-30 | 8' | Medium | 3000K | 72W | 7200Lm |
| TECHOLED-BX-2UR-D-8-HI-30 | 8' | High | 3000K | 92W | 9200Lm |
