BX 2R Series
BX-2R SERIES
Download
IES files
TECHOLED-BX-2R.zipCut sheets

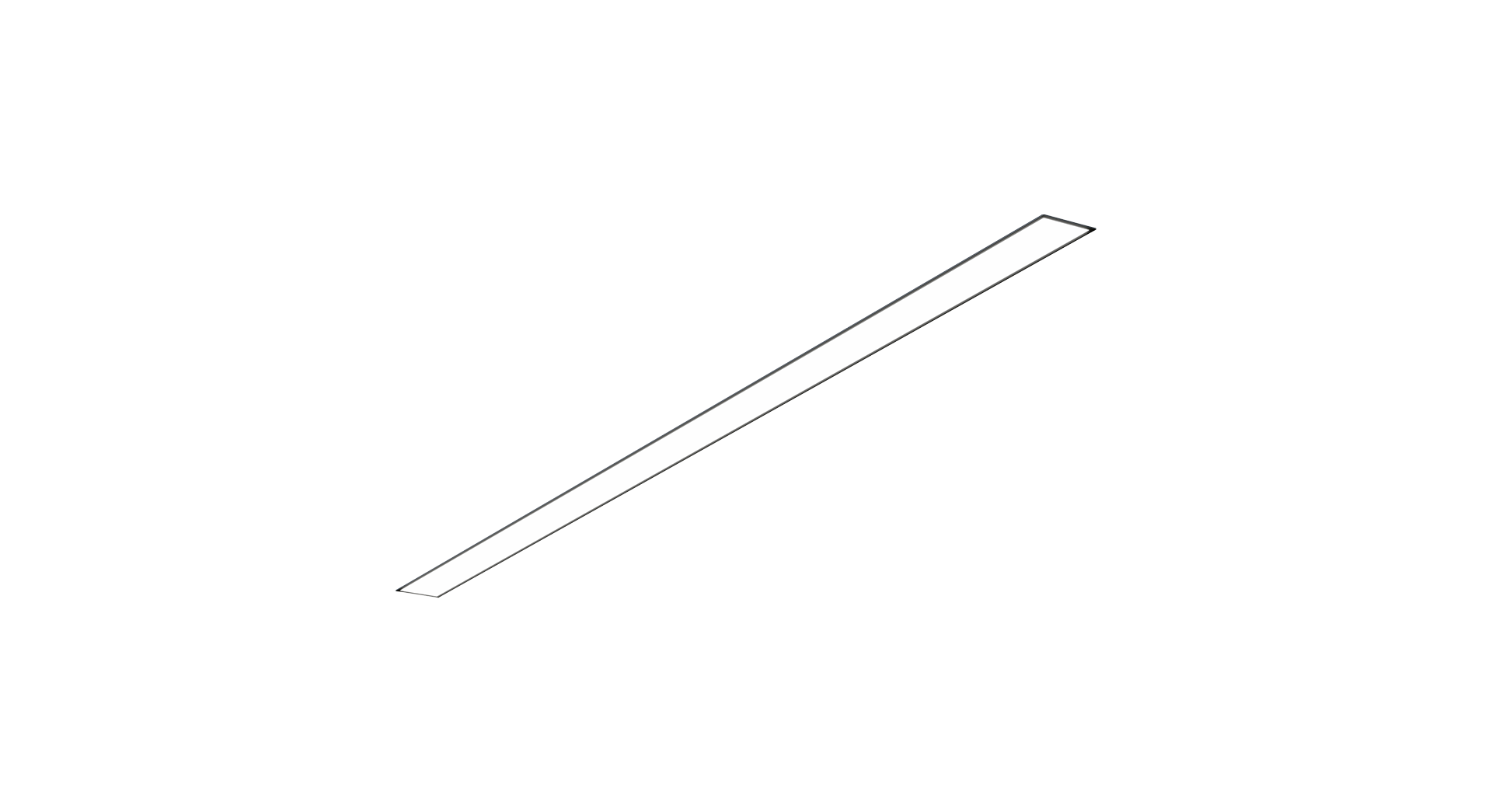

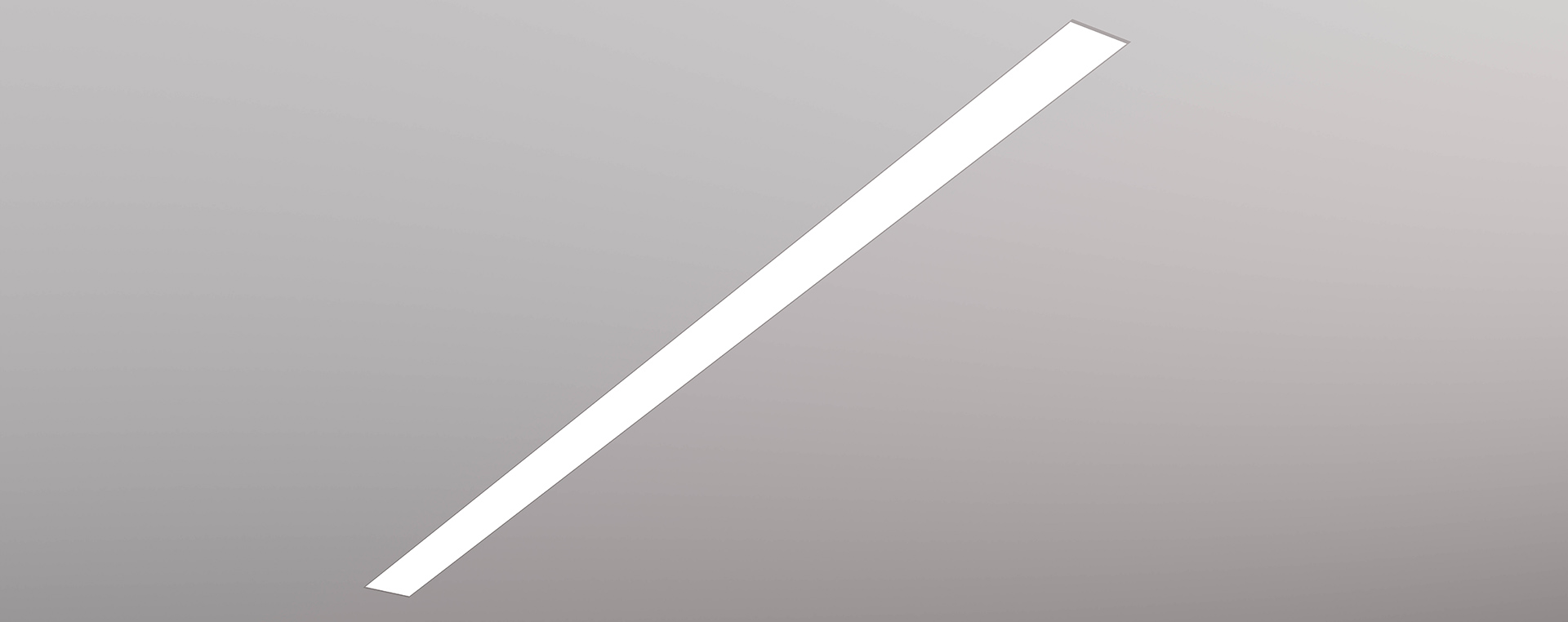

TechoLED-BX-2R-SERIES.pdfBX-2R series is specification grade, architectural linear fixture, with virtually unlimited possibilities to create patterns, continuous runs and shapes. Recessed into drywall, wood or grid ceilings. Wide ranging customization options, from custom lumen packages, sizes and finishes. Great and simple lighting solution for all modern interiors.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W available, 90CRI
Optical: Direct illumination, 110° beam angle
Construction: High grade aluminum extrusion, die cast end caps, PMMA diffuser, integral driver, powder coat finish, X, T, L Lit corners available for smooth, seamless patterns, damp location listed.
| Model | Size | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-BX-2R-D-2-LO-30 | 2' | Low | 3000K | 11W | 1100Lm |
| TECHOLED-BX-2R-D-2-ME-30 | 2' | Medium | 3000K | 16W | 1600Lm |
| TECHOLED-BX-2R-D-2-HI-30 | 2' | High | 3000K | 20W | 2000Lm |
| TECHOLED-BX-2R-D-4-LO-30 | 4' | Low | 3000K | 22W | 2200Lm |
| TECHOLED-BX-2R-D-4-ME-30 | 4' | Medium | 3000K | 31W | 3100Lm |
| TECHOLED-BX-2R-D-4-HI-30 | 4' | High | 3000K | 40W | 4000Lm |
| TECHOLED-BX-2R-D-6-LO-30 | 6' | Low | 3000K | 33W | 3300Lm |
| TECHOLED-BX-2R-D-6-ME-30 | 6' | Medium | 3000K | 46W | 4600Lm |
| TECHOLED-BX-2R-D-6-HI-30 | 6' | High | 3000K | 60W | 6000Lm |
| TECHOLED-BX-2R-D-8-LO-30 | 8' | Low | 3000K | 46W | 4600Lm |
| TECHOLED-BX-2R-D-8-ME-30 | 8' | Medium | 3000K | 61W | 6100Lm |
| TECHOLED-BX-2R-D-8-HI-30 | 8' | High | 3000K | 80W | 8000Lm |
