BX 1 Series
BX-1 SERIES
Download

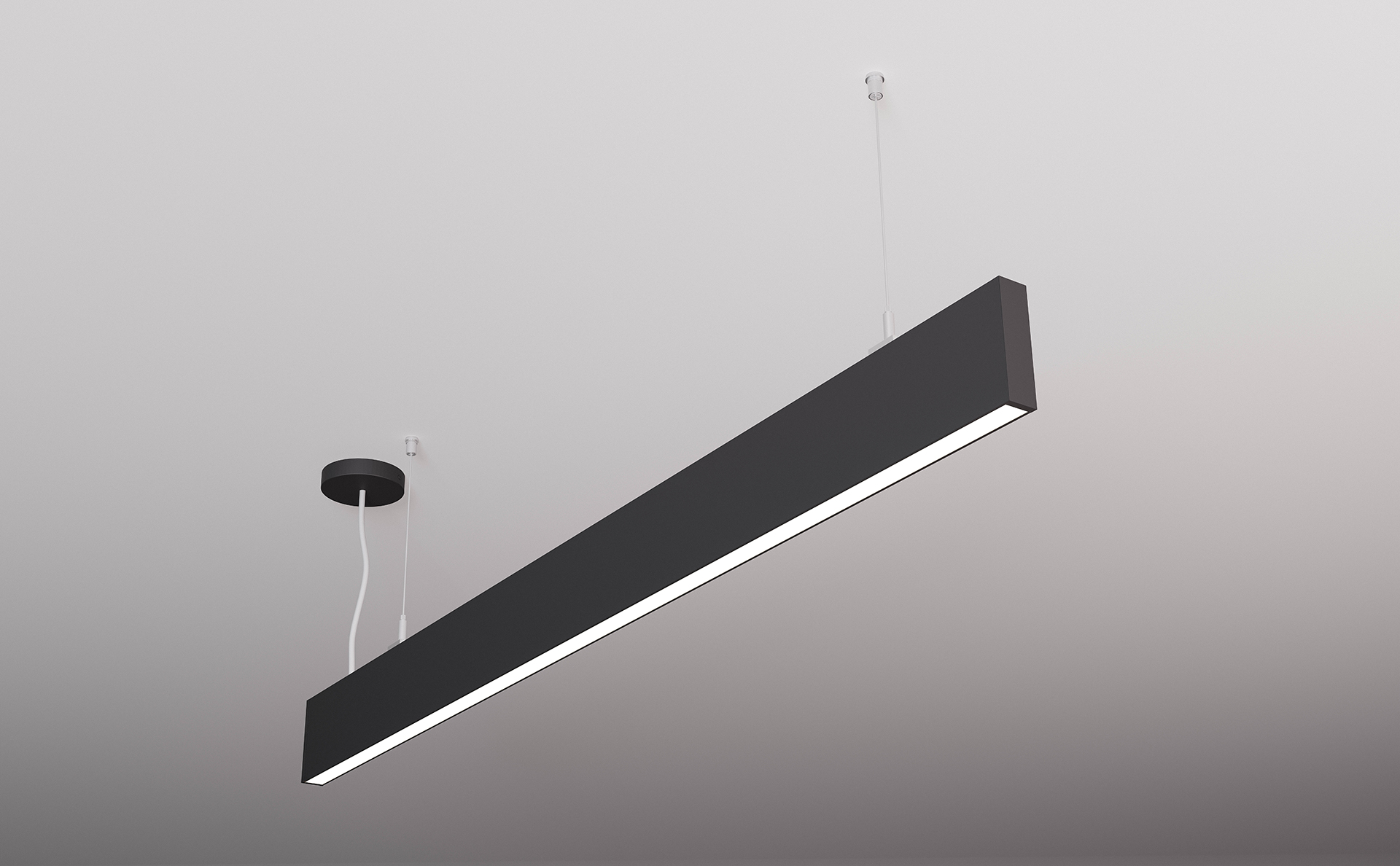

The TechoLED BX series features specification-grade linear LED fixtures made from high-grade aluminum extrusions. Available in standard sizes from 2 to 8 feet, as well as custom lengths, these fixtures can be pendant, surface, or wall-mounted. With virtually limitless options for creating patterns and shapes, the BX series provides a versatile, cost-effective, and modern lighting solution.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct and direct/indirect illumination, 110° beam angle, UGR<19
Construction: Damp location listed, high grade aluminum extrusion, die cast end caps, PMMA diffuser, powder coat finish. X, T, L lit corners, wall to ceiling transitions, for smooth seamless patterns.
| Model | Size | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-BX-1-D-2-LO-30 | 2' | Low | 3000K | 11W | 1140Lm |
| TECHOLED-BX-1-D-2-ME-30 | 2' | Medium | 3000K | 15W | 1520Lm |
| TECHOLED-BX-1-D-2-HI-30 | 2' | High | 3000K | 20W | 2000Lm |
| TECHOLED-BX-1-D-4-LO-30 | 4' | Low | 3000K | 23W | 2280Lm |
| TECHOLED-BX-1-D-4-ME-30 | 4' | Medium | 3000K | 30W | 3040Lm |
| TECHOLED-BX-1-D-4-HI-30 | 4' | High | 3000K | 40W | 4000Lm |
| TECHOLED-BX-1-D-6-LO-30 | 6' | Low | 3000K | 34W | 3420Lm |
| TECHOLED-BX-1-D-6-ME-30 | 6' | Medium | 3000K | 46W | 4560Lm |
| TECHOLED-BX-1-D-6-HI-30 | 6' | High | 3000K | 60W | 6000Lm |
| TECHOLED-BX-1-D-8-LO-30 | 8' | Low | 3000K | 46W | 4560Lm |
| TECHOLED-BX-1-D-8-ME-30 | 8' | Medium | 3000K | 61W | 6080Lm |
| TECHOLED-BX-1-D-8-HI-30 | 8' | High | 3000K | 80W | 8000Lm |
| Model | Size | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-BX-1-DI-2-LO-30 | 2' | Low | 3000K | 17W | 1140Lm | 570Lm |
| TECHOLED-BX-1-DI-2-ME-30 | 2' | Medium | 3000K | 23W | 1520Lm | 760Lm |
| TECHOLED-BX-1-DI-2-HI-30 | 2' | High | 3000K | 30W | 2000Lm | 1000Lm |
| TECHOLED-BX-1-DI-2-ME-30 | 4' | Low | 3000K | 34W | 2280Lm | 1140Lm |
| TECHOLED-BX-1-DI-2-HI-30 | 4' | Medium | 3000K | 46W | 3040Lm | 1520Lm |
| TECHOLED-BX-1-DI-4-HI-30 | 4' | High | 3000K | 60W | 4000Lm | 2000Lm |
| TECHOLED-BX-1-DI-6-LO-30 | 6' | Low | 3000K | 51W | 3420Lm | 1710Lm |
| TECHOLED-BX-1-DI-6-ME-30 | 6' | Medium | 3000K | 68W | 4560Lm | 2280Lm |
| TECHOLED-BX-1-DI-6-HI-30 | 6' | High | 3000K | 90W | 6000Lm | 3000Lm |
| TECHOLED-BX-1-DI-8-LO-30 | 8' | Low | 3000K | 68W | 4560Lm | 2280Lm |
| TECHOLED-BX-1-DI-8-ME-30 | 8' | Medium | 3000K | 91W | 6080Lm | 3040Lm |
| TECHOLED-BX-1-DI-8-HI-30 | 8' | High | 3000K | 120W | 8000Lm | 4000Lm |
