BX 1L Series
| Download |
|---|
| Cut Sheet |
| IES File ( request via email ) |

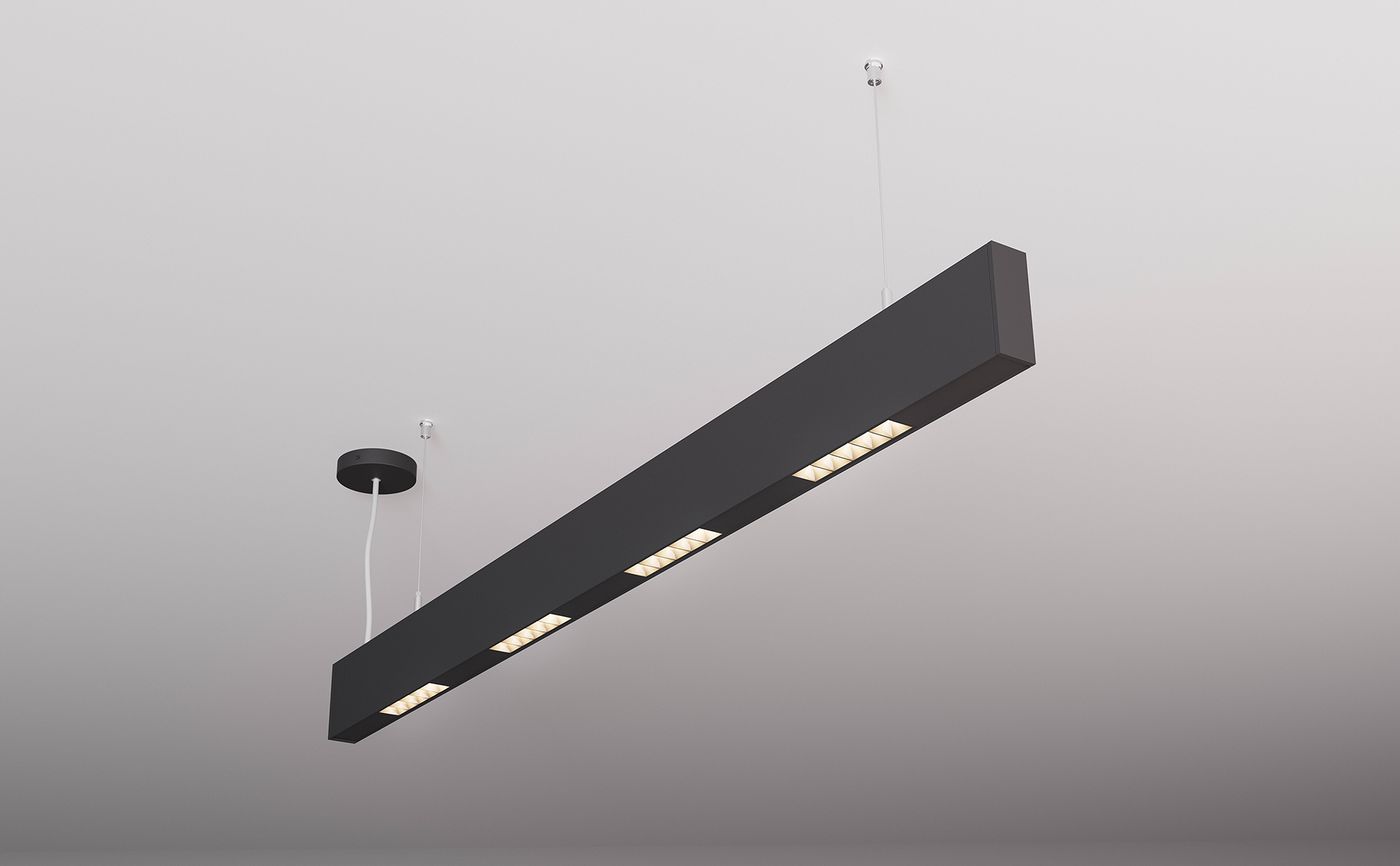

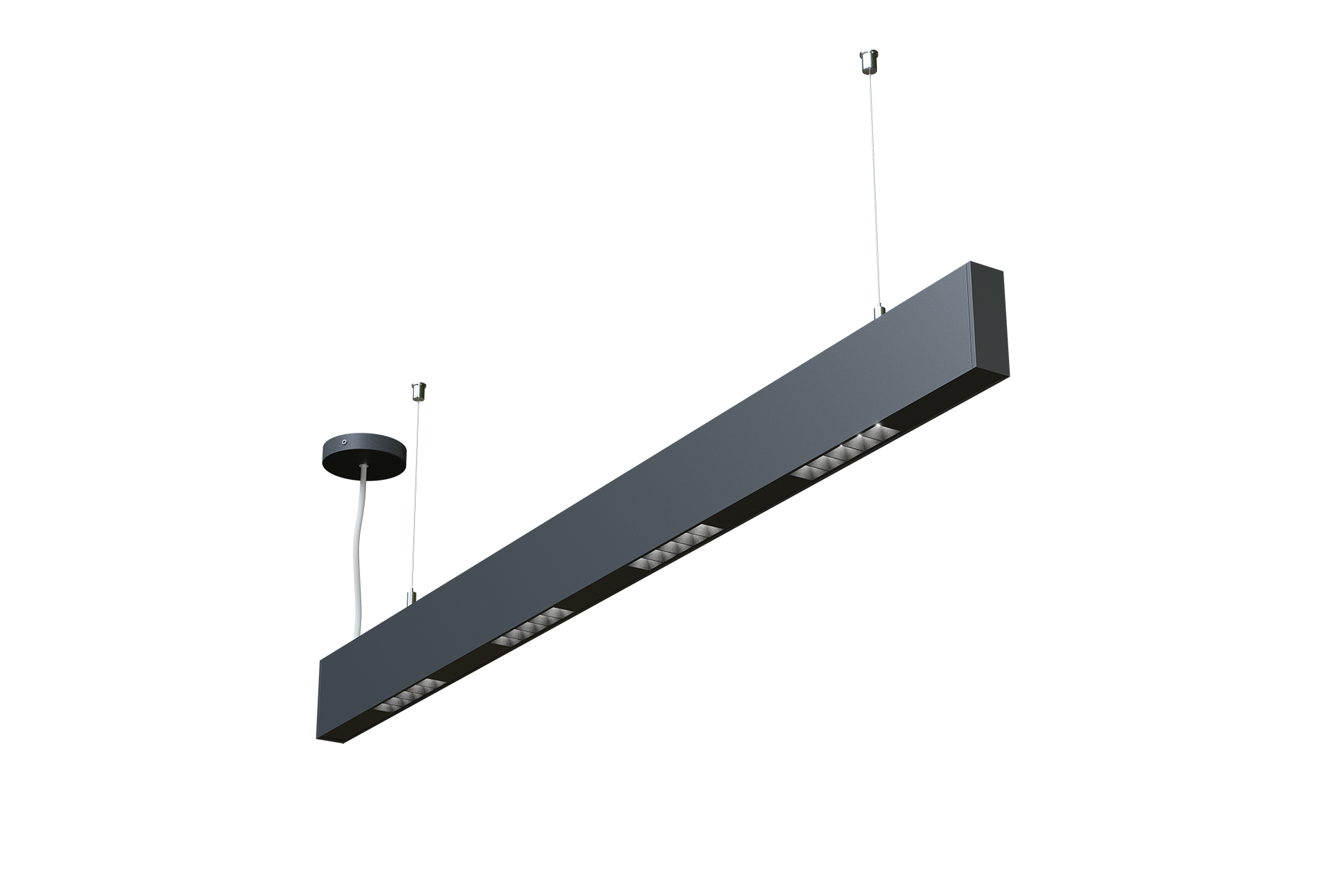

GENERAL: Pendant Indoor Architectural LED Fixture
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)
OPTICAL: Direct & Illumination, 15°/35°/45° Beam Angle Options
CONSTRUCTION: High Grade Aluminum Extrusion 1.4×3.8” with arrayed louvre diffuser, die cast end caps, PMMA Diffuser, Integral Driver. Powder Coat Finish
* 5-year warranty, 50,000 hour rated lifespan, IP40 (indoor). Custom size, lumen output and color temperature available.
| Model # | Length | Wattage | Distribution | Lumen Output |
|---|---|---|---|---|
| TechoLED-BX-1L-D-2-10-30-U-D | 2ft | 10W | Direct | 950lm |
| TechoLED-BX-1L-D-4-20-30-U-D | 4ft | 20W | Direct | 1900lm |
| TechoLED-BX-1L-D-6-30-30-U-D | 6ft | 30W | Direct | 2850lm |
| TechoLED-BX-1L-D-8-40-30-U-D | 8ft | 40W | Direct | 3800lm |
| Item | Description |
|---|---|
| BX-1-L-AC | Pendant Hanging Kit (aircraft cable) |
