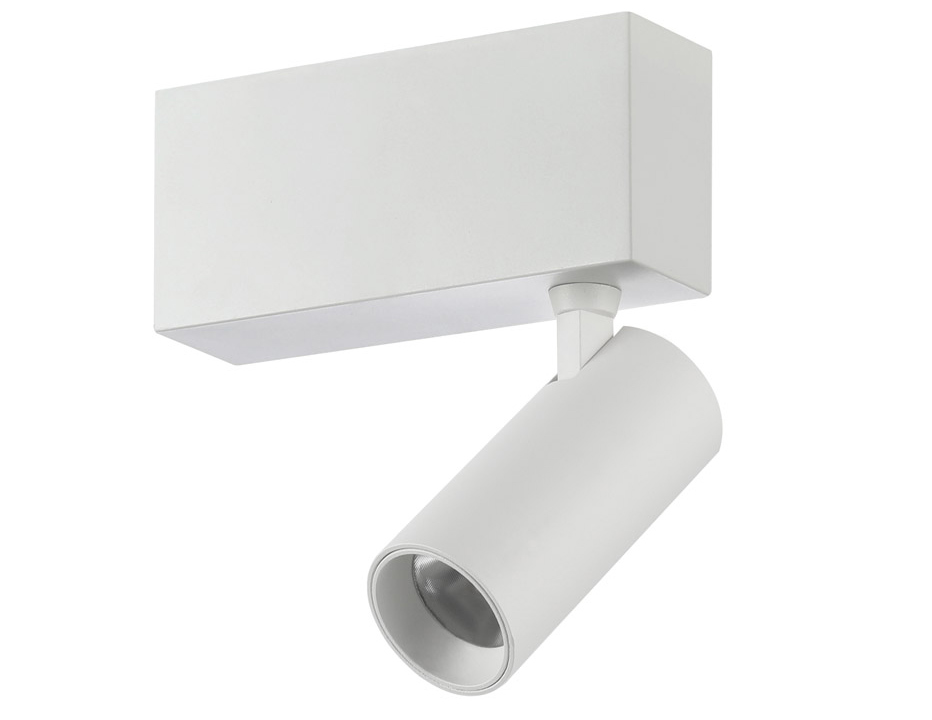

MAGNETIC TRACK SYSTEM - ADJUSTABLE SPOTLIGHT MODULE

Download
IES files
TECHOLED-MT-S.zipRevit file(s)

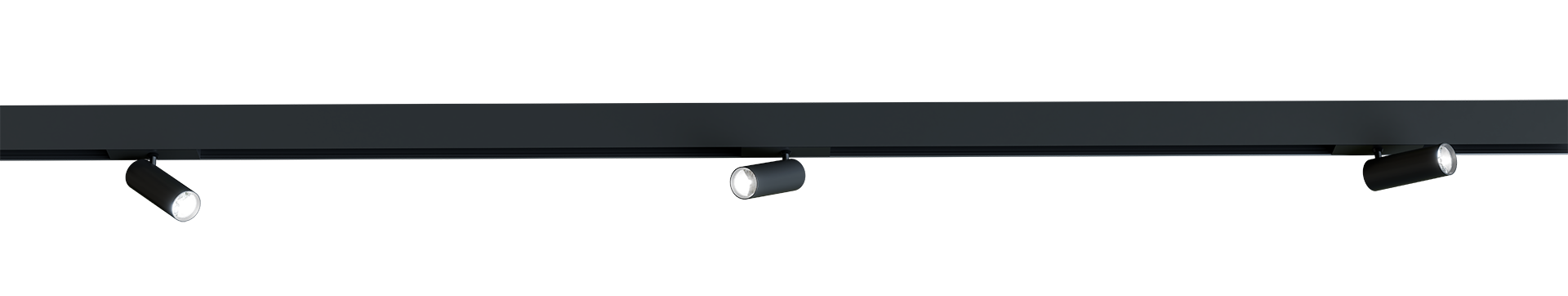

MAGNETIC TRACK SYSTEM - ADJUSTABLE SPOTLIGHT MODULE.rfaThe TechoLED Magnetic Track System is a creative and flexible architectural lighting solution. The track has virtually unlimited capability to create shapes and patterns, from simple rectangles to complex curves and circles, including custom radii with both the track and the illuminated modules. Light components, ranging from solid linear, louvre, and wall washer to adjustable spotlights and pendant cylinders, snap into the track magnetically and can be repositioned by hand without tools. It is a superb and creative lighting solution for any modern interior.
LED: Osram & Cree LED Chips, 2700-5000K, dim-to-warm and tunable white available, 90+ CRI
Optical: Direct illumination, 18° – 40° beam angles available
Construction: High grade aluminum extrusion, powder coat finish, custom finishes available, 24V remote driver


Model # | Beam Angle | Output | Color Temp. | Wattage | Lumen Output |
---|---|---|---|---|---|
TECHOLED-MT-S-10-ME-36-30-W-X | 36° | Medium | 3000K | 10W | 650Lm |
