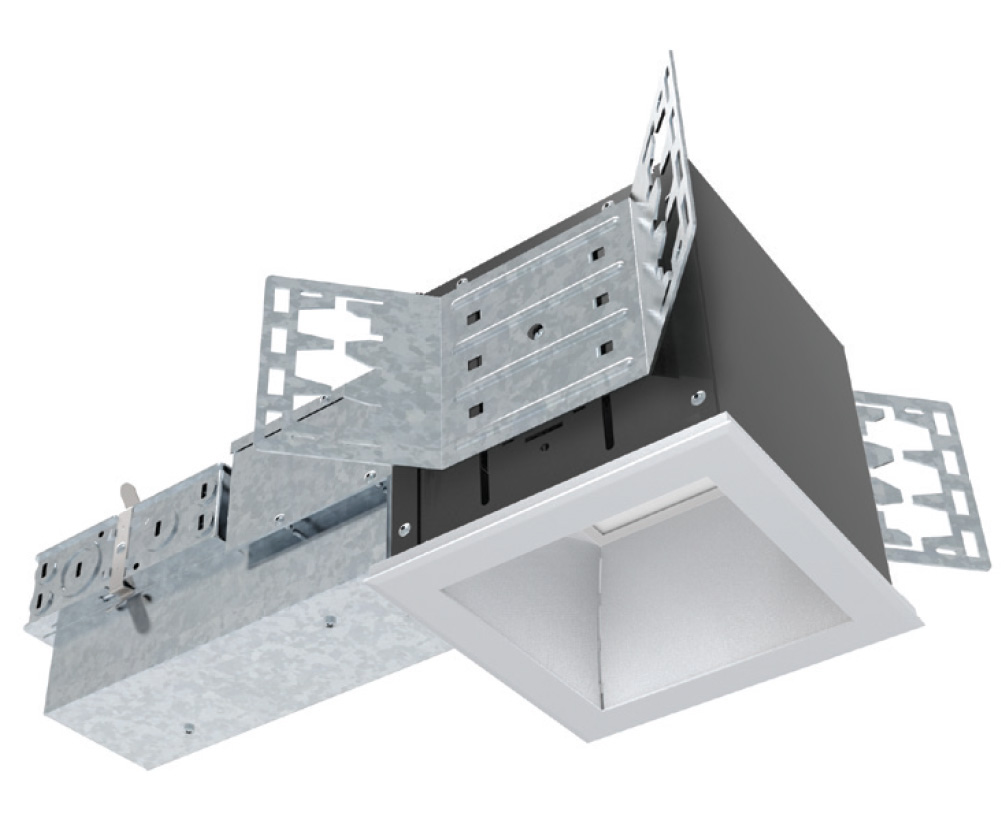

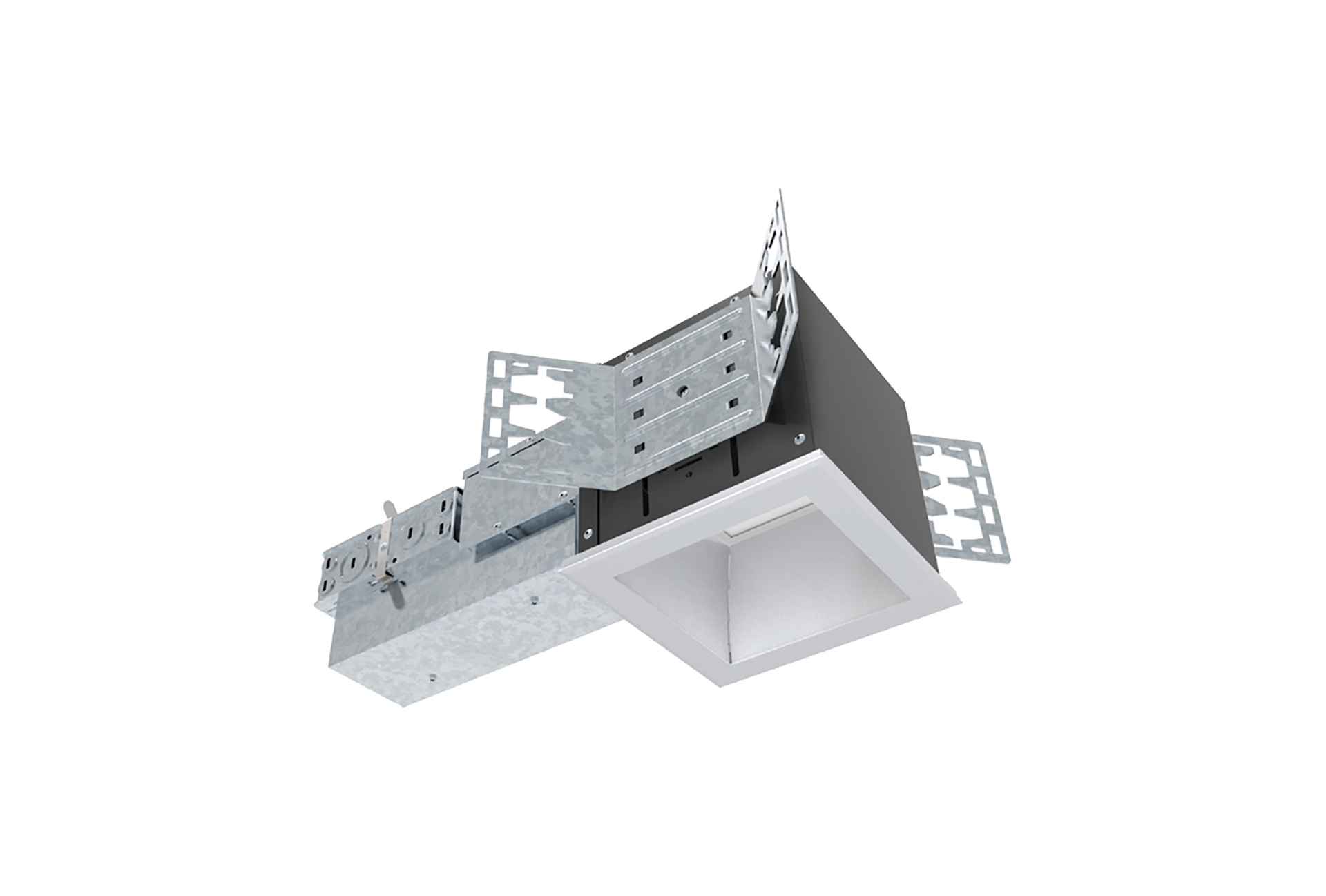

DL-S-6 SERIES
DL-S-6 Series are specification grade, 6” square aperture downlights, featuring simple look, high efficacy and high-quality components. Designed for new construction recessed applications, available in wide variety of color temperature and lumen outputs, as well as multiple trim and reflector finish options. Great lighting solution for any
modern interior.
LED: Osram, Seoul, Cree, LED Chips, 2800-6000K, 90+CRI, High Output – up to 6500lm.
Optical: 6” square aperture, 60° beam angle (90° optional)
Construction: High grade steel housing, Frosted Perspex diffuser, Integral driver, Powder coat finish
| Model | Size | Wattage | Distribution | Color Temp. | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-DL-S-6-D-18 | 6” | 18W | Direct | 3000K | 1440Lm |
| TECHOLED-DL-S-6-D-24 | 6” | 24W | Direct | 3000K | 1920Lm |
| TECHOLED-DL-S-6-D-32 | 6” | 32W | Direct | 3000K | 2560Lm |
| TECHOLED-DL-S-6-D-50 | 6” | 50W | Direct | 3000K | 5000Lm |
| TECHOLED-DL-S-6-D-32H | 6” | 40W | Direct | 3000K | 3420Lm |
| TECHOLED-DL-S-6-D-50H | 6” | 60W | Direct | 3000K | 6500Lm |
