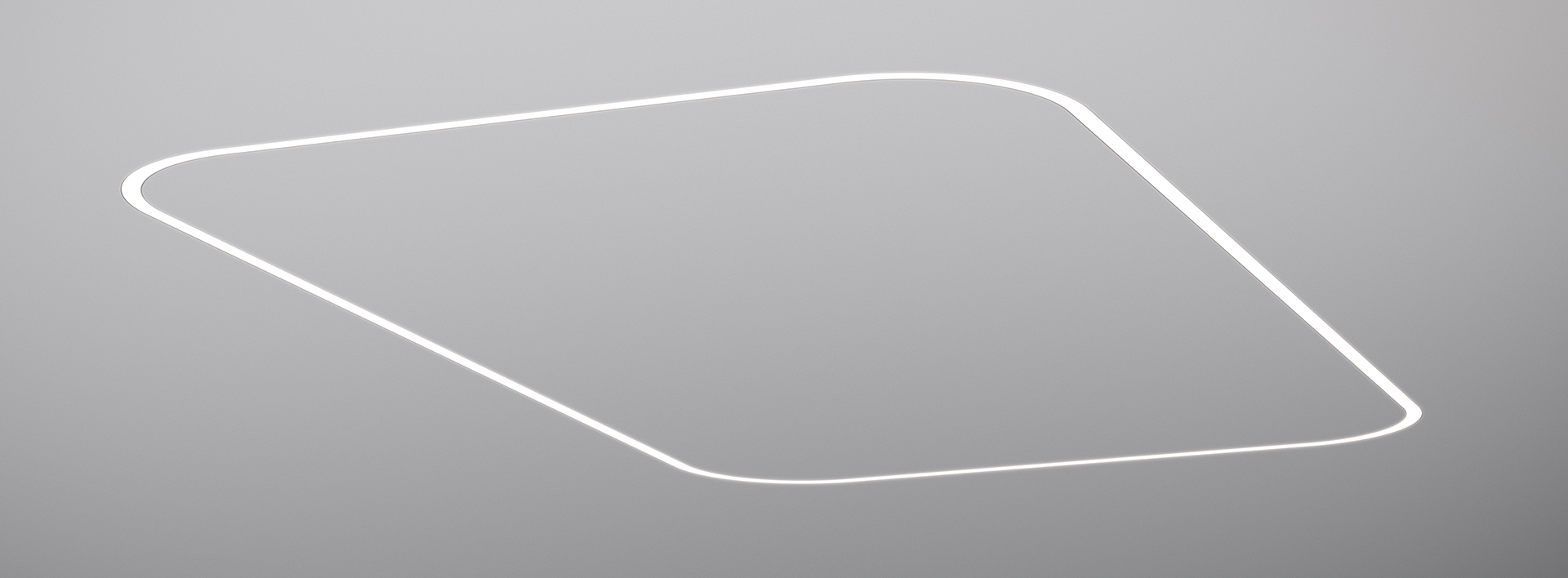

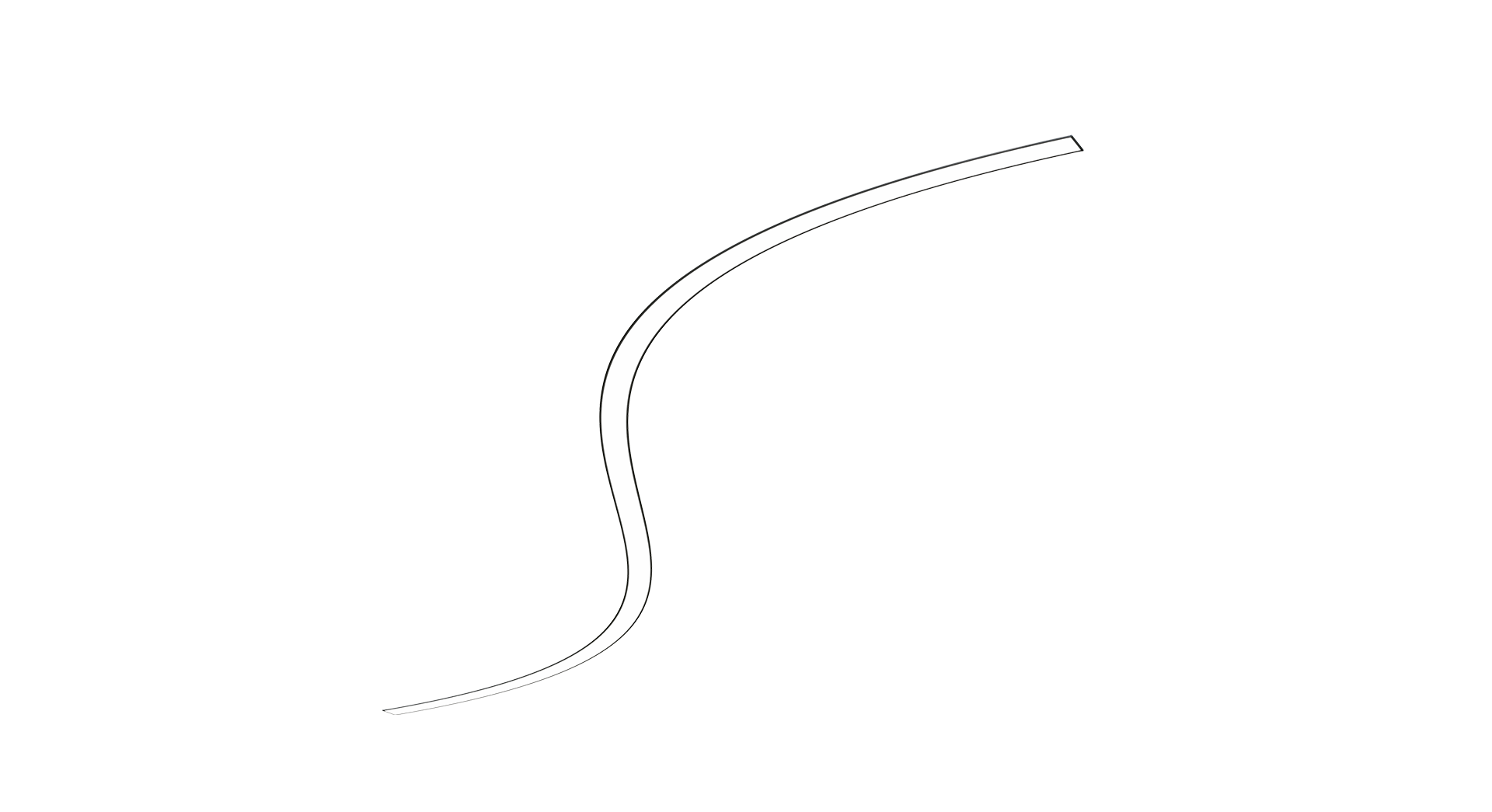

BX-CURV-R SERIES
The TechoLED BX series features specification-grade linear LED fixtures made from high-grade aluminum extrusions. Available in standard sizes from 2 to 8 feet, as well as custom lengths, recessed installation in variety of ceiling and materials. With virtually limitless options for creating patterns and shapes, the BX series provides a versatile, costeffective, and modern lighting solution.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct illumination, multiple beam angles available (110° beam angle on solid lens), UGR<19
Construction: Damp location listed, high grade aluminum extrusion, die cast end caps, PMMA diffuser, powder coat finish. X, T, L lit corners, wall to ceiling transitions, for smooth seamless patterns.
| Model | Distribution | Length | Output | Color Temp. | Lumens / W | W / ft | Lumens / ft |
|---|---|---|---|---|---|---|---|
| TECHOLED-BX-CURV-R-D-C-LO-30 | Direct | Custom | Low | 3000K | 100 | 6 | 600 |
| TECHOLED-BX-CURV-R-D-C-ME-30 | Direct | Custom | Medium | 3000K | 100 | 10 | 1000 |
| TECHOLED-BX-CURV-R-D-C-HI-30 | Direct | Custom | High | 3000K | 100 | 15 | 1500 |
