IP Halo Series
IP-HALO SERIES
Download
IES files
TECHOLED-IP-HALO.zipCut sheets

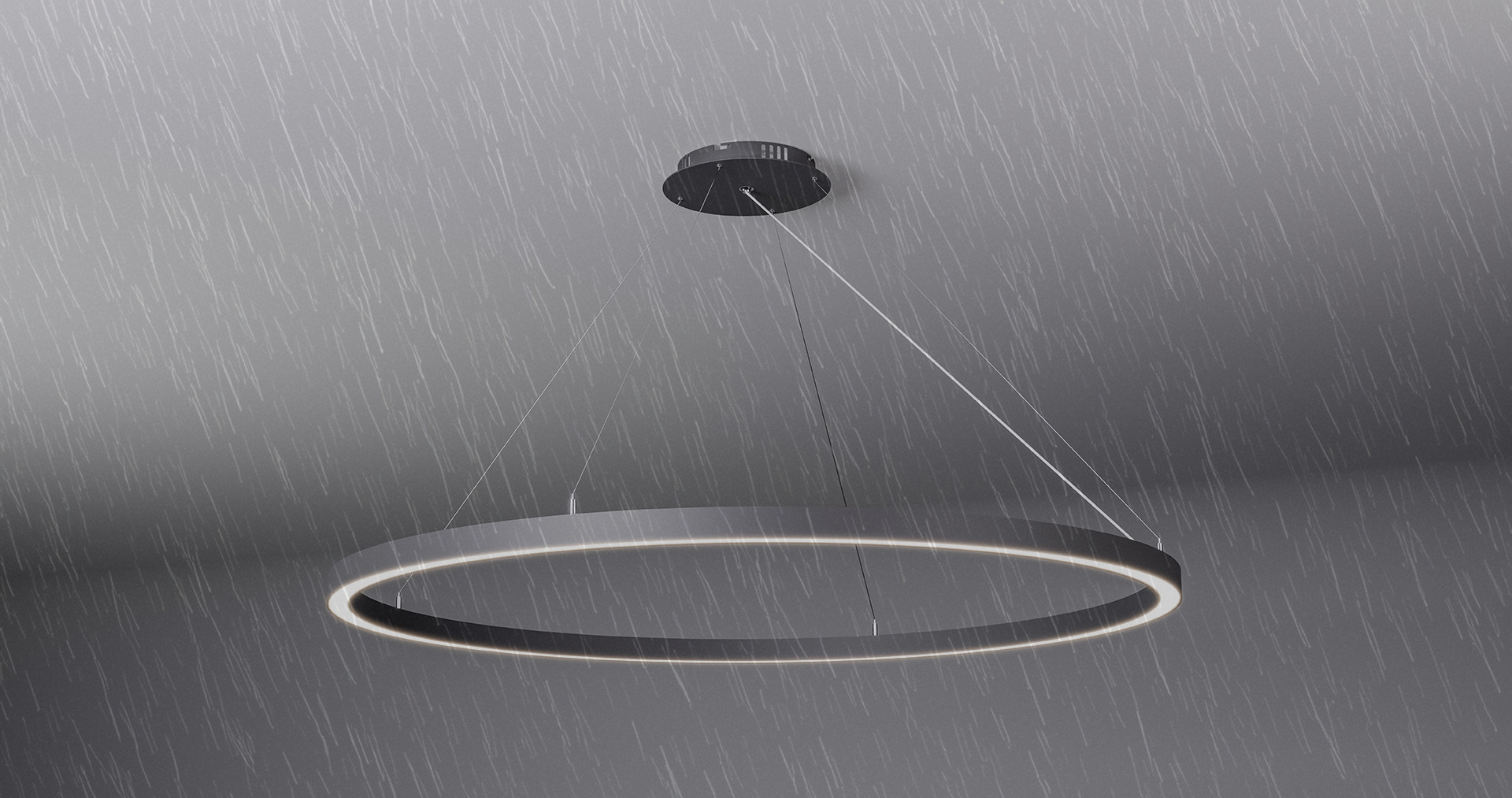

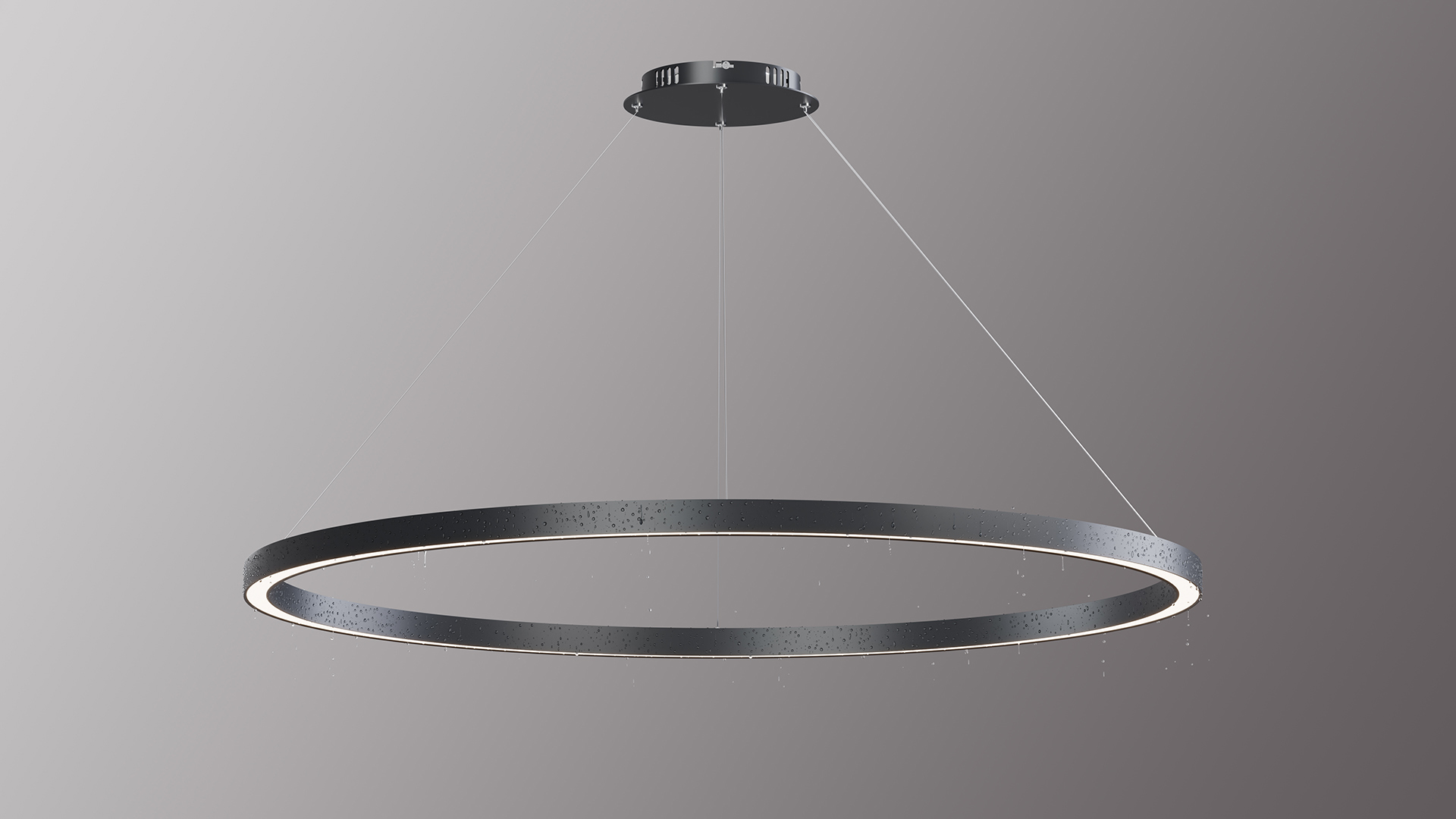

TechoLED-IP-HALO-SERIES.pdfThe TechoLED IP HALO series features sleek, round, outdoor LED luminaires made with slim, high-grade aluminum extrusion. With diameters ranging from 2 feet to almost 17 feet (or custom sizes of your choice), these luminaires can be surface mounted or pendant-style. Additionally, the HALO series offers the flexibility of multiple fixtures hanging from a single canopy. A superb lighting solution for all modern exteriors.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct illumination, 120° beam angle
Construction: Wet location listed – IP65 rated. High grade aluminum extrusion, PC diffuser, remote driver (inside canopy), powder coat finish, custom finishes available
| MODEL | Diameter | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-IP-HALO-D-23-LO-30 | 23.6'' | Low | 3000K | 20W | 1400Lm |
| TECHOLED-IP-HALO-D-23-ME-30 | 23.6'' | Medium | 3000K | 32W | 2240Lm |
| TECHOLED-IP-HALO-D-23-HI-30 | 23.6'' | High | 3000K | 40W | 2800Lm |
| TECHOLED-IP-HALO-D-35-LO-30 | 35.4'' | Low | 3000K | 30W | 2100Lm |
| TECHOLED-IP-HALO-D-35-ME-30 | 35.4'' | Medium | 3000K | 50W | 3500Lm |
| TECHOLED-IP-HALO-D-35-HI-30 | 35.4'' | High | 3000K | 60W | 4200Lm |
| TECHOLED-IP-HALO-D-47-LO-30 | 47.2'' | Low | 3000K | 40W | 2800Lm |
| TECHOLED-IP-HALO-D-47-ME-30 | 47.2'' | Medium | 3000K | 65W | 4550Lm |
| TECHOLED-IP-HALO-D-47-HI-30 | 47.2'' | High | 3000K | 80W | 5600Lm |
| TECHOLED-IP-HALO-D-59-LO-30 | 59.1'' | Low | 3000K | 50W | 3500Lm |
| TECHOLED-IP-HALO-D-59-ME-30 | 59.1'' | Medium | 3000K | 80W | 5600Lm |
| TECHOLED-IP-HALO-D-59-HI-30 | 59.1'' | High | 3000K | 100W | 7000Lm |
| TECHOLED-IP-HALO-D-78-LO-30 | 78.76'' | Low | 3000K | 65W | 4550Lm |
| TECHOLED-IP-HALO-D-78-ME-30 | 78.76'' | Medium | 3000K | 110W | 7700Lm |
| TECHOLED-IP-HALO-D-78-HI-30 | 78.76'' | High | 3000K | 125W | 8750Lm |
| TECHOLED-IP-HALO-D-95-LO-30 | 94.5'' | Low | 3000K | 80W | 5600Lm |
| TECHOLED-IP-HALO-D-95-ME-30 | 94.5'' | Medium | 3000K | 140W | 9800Lm |
| TECHOLED-IP-HALO-D-95-HI-30 | 94.5'' | High | 3000K | 160W | 11200Lm |
| TECHOLED-IP-HALO-D-118-LO-30 | 118.1'' | Low | 3000K | 100W | 7000Lm |
| TECHOLED-IP-HALO-D-118-ME-30 | 118.1'' | Medium | 3000K | 170W | 11900Lm |
| TECHOLED-IP-HALO-D-118-HI-30 | 118.1'' | High | 3000K | 190W | 13300Lm |
| TECHOLED-IP-HALO-D-196-LO-30 | 196.9'' | Low | 3000K | 160W | 11200Lm |
| TECHOLED-IP-HALO-D-196-ME-30 | 196.9'' | Medium | 3000K | 280W | 19600Lm |
| TECHOLED-IP-HALO-D-196-HI-30 | 196.9'' | High | 3000K | 320W | 22400Lm |
