Halo Series

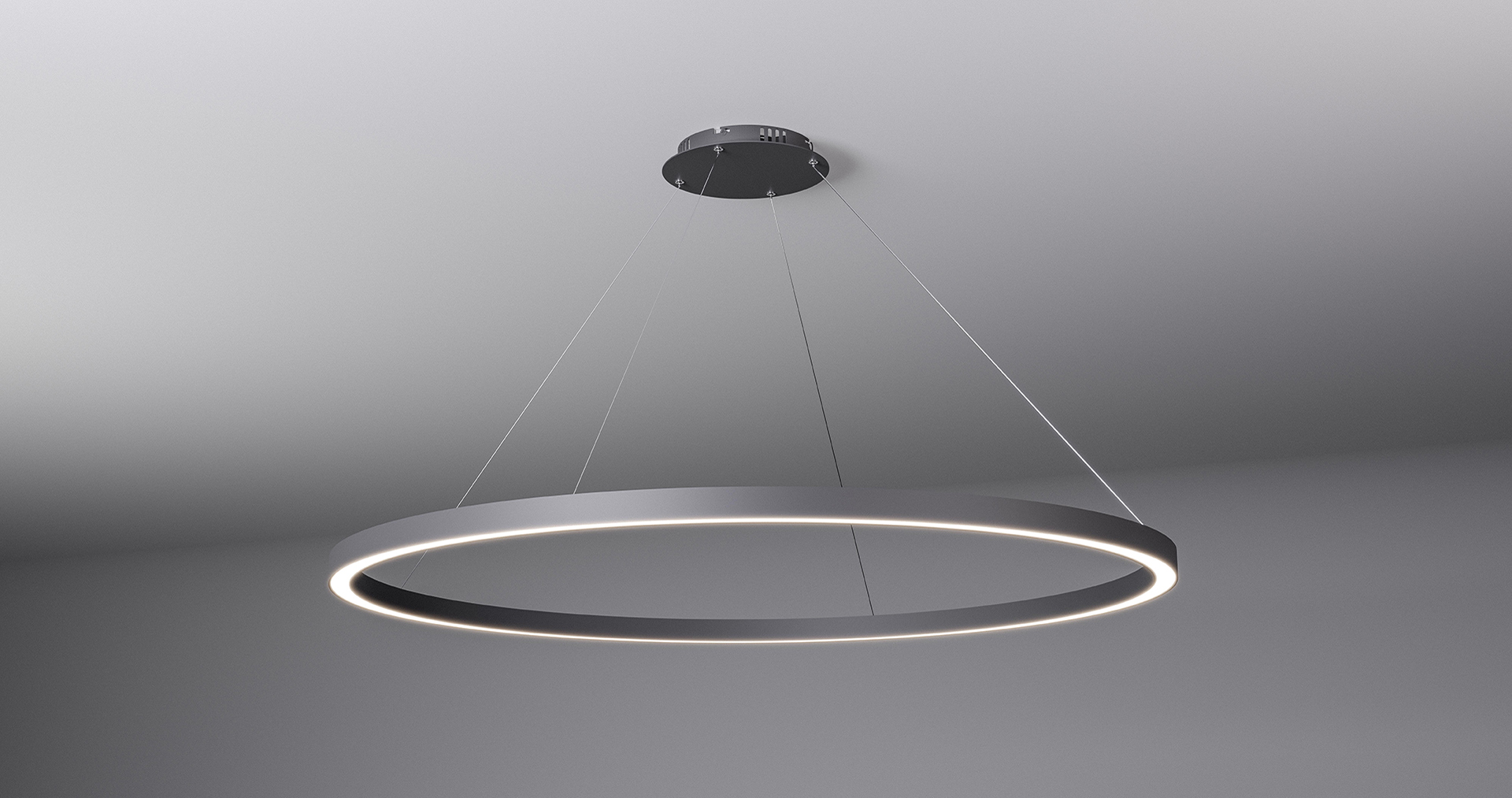

HALO SERIES - DIRECT/INDIRECT
Download
IES files
TECHOLED-HALO-DI.zipCut sheets
TechoLED-HALO-SERIES-DIRECT-INDIRECT.pdfRevit file(s)
HALO SERIES - DIRECT-INDIRECT.rfaThe TechoLED HALO series features sleek, round LED luminaires made with slim, high-grade aluminum extrusion. With diameters ranging from 2 feet to almost 17 feet (or custom sizes of your choice), these luminaires can be surface mounted or pendant-style. Additionally, the HALO series offers the flexibility of multiple fixtures hanging from a single canopy. A superb lighting solution for modern interiors.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct illumination, 120° beam angle
Construction: Damp location listed. High grade aluminum extrusion, PC diffuser, remote driver (inside canopy), powder coat finish, custom finishes available
| MODEL | Diameter | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-HALO-DI-23-LO-30 | 23.6'' | Low | 3000K | 40W | 2125Lm | 1275Lm |
| TECHOLED-HALO-DI-23-ME-30 | 23.6'' | Medium | 3000K | 65W | 3825Lm | 1700Lm |
| TECHOLED-HALO-DI-23-HI-30 | 23.6'' | High | 3000K | 100W | 5950Lm | 2550Lm |
| TECHOLED-HALO-DI-35-LO-30 | 35.4'' | Low | 3000K | 50W | 2975Lm | 1275Lm |
| TECHOLED-HALO-DI-35-ME-30 | 35.4'' | Medium | 3000K | 80W | 4760Lm | 2040Lm |
| TECHOLED-HALO-DI-35-HI-30 | 35.4'' | High | 3000K | 120W | 6800Lm | 3400Lm |
| TECHOLED-HALO-DI-47-LO-30 | 47.2'' | Low | 3000K | 65W | 3425Lm | 2100Lm |
| TECHOLED-HALO-DI-47-ME-30 | 47.2'' | Medium | 3000K | 120W | 7140Lm | 3060Lm |
| TECHOLED-HALO-DI-47-HI-30 | 47.2'' | High | 3000K | 180W | 10200Lm | 5100Lm |
| TECHOLED-HALO-DI-59-LO-30 | 59.1'' | Low | 3000K | 75W | 4250Lm | 2125Lm |
| TECHOLED-HALO-DI-59-ME-30 | 59.1'' | Medium | 3000K | 135W | 7650Lm | 3825Lm |
| TECHOLED-HALO-DI-59-HI-30 | 59.1'' | High | 3000K | 200W | 11500Lm | 5500Lm |
| TECHOLED-HALO-DI-78-LO-30 | 78.76'' | Low | 3000K | 105W | 5950Lm | 2975Lm |
| TECHOLED-HALO-DI-78-ME-30 | 78.76'' | Medium | 3000K | 150W | 8925Lm | 3825Lm |
| TECHOLED-HALO-DI-78-HI-30 | 78.76'' | High | 3000K | 220W | 12750Lm | 5950Lm |
| TECHOLED-HALO-DI-95-LO-30 | 94.5'' | Low | 3000K | 125W | 6950Lm | 3695Lm |
| TECHOLED-HALO-DI-95-ME-30 | 94.5'' | Medium | 3000K | 200W | 11900Lm | 5100Lm |
| TECHOLED-HALO-DI-95-HI-30 | 94.5'' | High | 3000K | 300W | 17000Lm | 8500Lm |
| TECHOLED-HALO-DI-118-LO-30 | 118.1'' | Low | 3000K | 200W | 11050Lm | 5950Lm |
| TECHOLED-HALO-DI-118-ME-30 | 118.1'' | Medium | 3000K | 300W | 17850Lm | 7650Lm |
| TECHOLED-HALO-DI-118-HI-30 | 118.1'' | High | 3000K | 450W | 25500Lm | 12750Lm |
| TECHOLED-HALO-DI-196-LO-30 | 196.9'' | Low | 3000K | 240W | 13600Lm | 6800Lm |
| TECHOLED-HALO-DI-196-ME-30 | 196.9'' | Medium | 3000K | 480W | 28560Lm | 12240Lm |
| TECHOLED-HALO-DI-196-HI-30 | 196.9'' | High | 3000K | 640W | 37400Lm | 17000Lm |

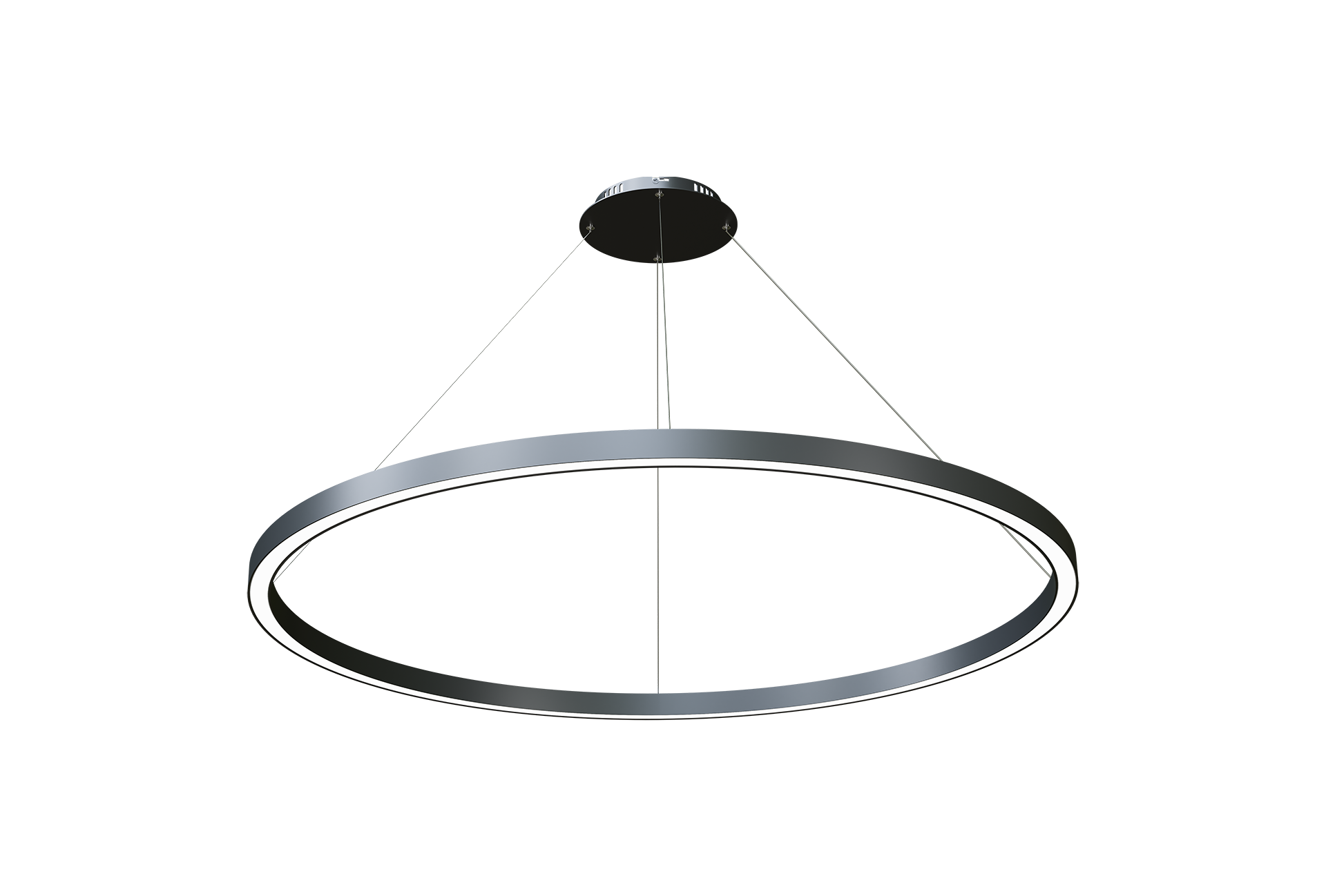

HALO SERIES - DIRECT
Download
IES files
TECHOLED-HALO-D.zipCut sheets
TechoLED-HALO-SERIES-DIRECT.pdfThe TechoLED HALO series features sleek, round LED luminaires made with slim, high-grade aluminum extrusion. With diameters ranging from 2 feet to almost 17 feet (or custom sizes of your choice), these luminaires can be surface mounted or pendant-style. Additionally, the HALO series offers the flexibility of multiple fixtures hanging from a single canopy. A superb lighting solution for modern interiors.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct illumination, 120° beam angle
Construction: Damp location listed. High grade aluminum extrusion, PC diffuser, remote driver (inside canopy), powder coat finish, custom finishes available
| MODEL | Diameter | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-HALO-D-23-LO-30 | 23.6'' | Low | 3000K | 25W | 2125Lm |
| TECHOLED-HALO-D-23-ME-30 | 23.6'' | Medium | 3000K | 40W | 3400Lm |
| TECHOLED-HALO-D-23-HI-30 | 23.6'' | High | 3000K | 60W | 5100Lm |
| TECHOLED-HALO-D-35-LO-30 | 35.4'' | Low | 3000K | 30W | 2550Lm |
| TECHOLED-HALO-D-35-ME-30 | 35.4'' | Medium | 3000K | 50W | 4250Lm |
| TECHOLED-HALO-D-35-HI-30 | 35.4'' | High | 3000K | 80W | 6800Lm |
| TECHOLED-HALO-D-47-LO-30 | 47.2'' | Low | 3000K | 40W | 3400Lm |
| TECHOLED-HALO-D-47-ME-30 | 47.2'' | Medium | 3000K | 80W | 6800Lm |
| TECHOLED-HALO-D-47-HI-30 | 47.2'' | High | 3000K | 120W | 10200Lm |
| TECHOLED-HALO-D-59-LO-30 | 59.1'' | Low | 3000K | 50W | 4250Lm |
| TECHOLED-HALO-D-59-ME-30 | 59.1'' | Medium | 3000K | 100W | 8500Lm |
| TECHOLED-HALO-D-59-HI-30 | 59.1'' | High | 3000K | 160W | 13600Lm |
| TECHOLED-HALO-D-78-LO-30 | 78.76'' | Low | 3000K | 60W | 5100Lm |
| TECHOLED-HALO-D-78-ME-30 | 78.76'' | Medium | 3000K | 120W | 10200Lm |
| TECHOLED-HALO-D-78-HI-30 | 78.76'' | High | 3000K | 180W | 15300Lm |
| TECHOLED-HALO-D-95-LO-30 | 94.5'' | Low | 3000K | 90W | 7650Lm |
| TECHOLED-HALO-D-95-ME-30 | 94.5'' | Medium | 3000K | 160W | 13600Lm |
| TECHOLED-HALO-D-95-HI-30 | 94.5'' | High | 3000K | 240W | 20400Lm |
| TECHOLED-HALO-D-118-LO-30 | 118.1'' | Low | 3000K | 100W | 8500Lm |
| TECHOLED-HALO-D-118-ME-30 | 118.1'' | Medium | 3000K | 200W | 17000Lm |
| TECHOLED-HALO-D-118-HI-30 | 118.1'' | High | 3000K | 300W | 25500Lm |
| TECHOLED-HALO-D-196-LO-30 | 196.9'' | Low | 3000K | 200W | 17000Lm |
| TECHOLED-HALO-D-196-ME-30 | 196.9'' | Medium | 3000K | 400W | 34000Lm |
| TECHOLED-HALO-D-196-HI-30 | 196.9'' | High | 3000K | 500W | 42500Lm |
