Concave Series
CONCAVE SERIES
Download
Cut sheets

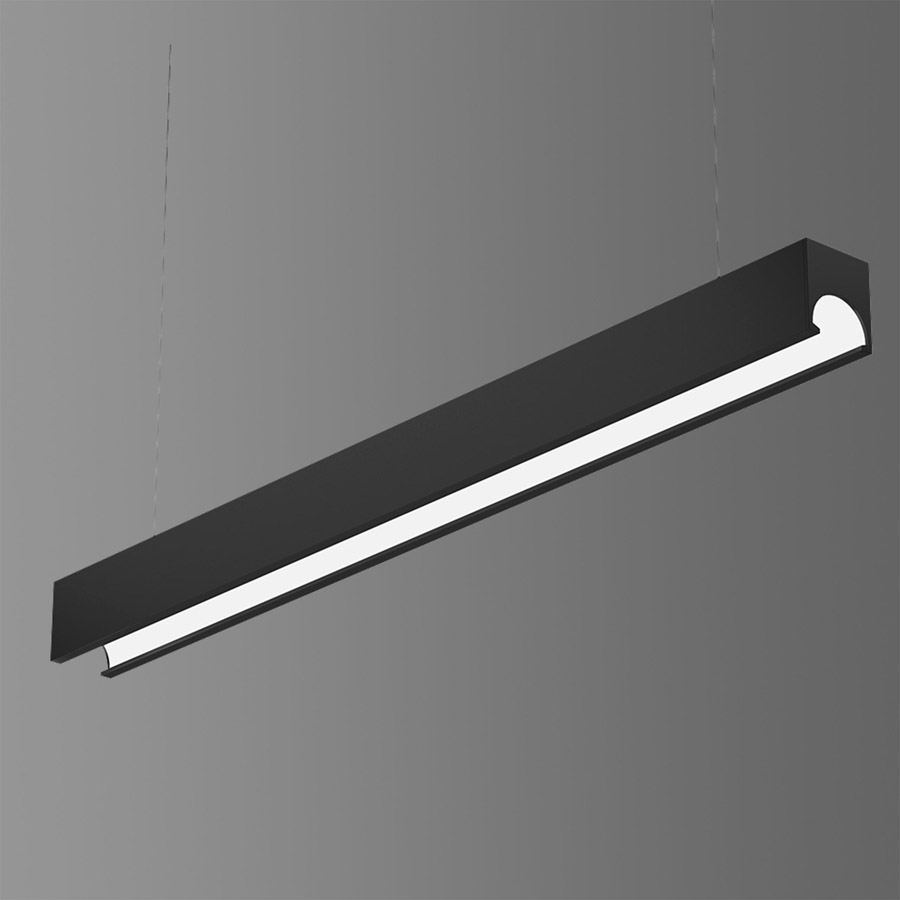

TechoLED-CONCAVE SERIES.pdfIndoor Architectural LED Fixture. Concave Shape with Concealed Illumination, Anti-glare Nano Technology Reflector. Pendant, Surface Mount and Recessed Installation. 50,000 hour rated lifespan @L80.
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)
Optical: Direct & Direct/Indirect Configurations, 121° Beam Angle, UGR<19
Construction: High Grade Aluminum Extrusion, Die Cast End Caps, Nano-Technology Reflector, Integral Driver, Powder Coat Finish. Seamless Continuous Linear Runs Available, Damp Location.
| Model # | Length | Wattage | Distribution | Lumen Output (standard colors) |
|---|---|---|---|---|
| TechoLED-C-D-4-34-30-U-W-P-D | 4' |
34W |
Direct |
3400Lm |
TechoLED-C-D-8-68-30-U-W-P-D |
8' |
68W |
Direct |
6800Lm |
TechoLED-C-DI-4-45-30-U-W-P-D |
4' |
45W |
Direct / Indirect |
3400Lm down/1100Lm up |
| TechoLED-C-DI-8-90-30-U-W-P-D | 8' | 90W | Direct / Indirect | 6700Lm down/2300Lm up |
