BX 4 Series
| Download |
|---|
| Cut Sheet |
| IES File (4ft) |

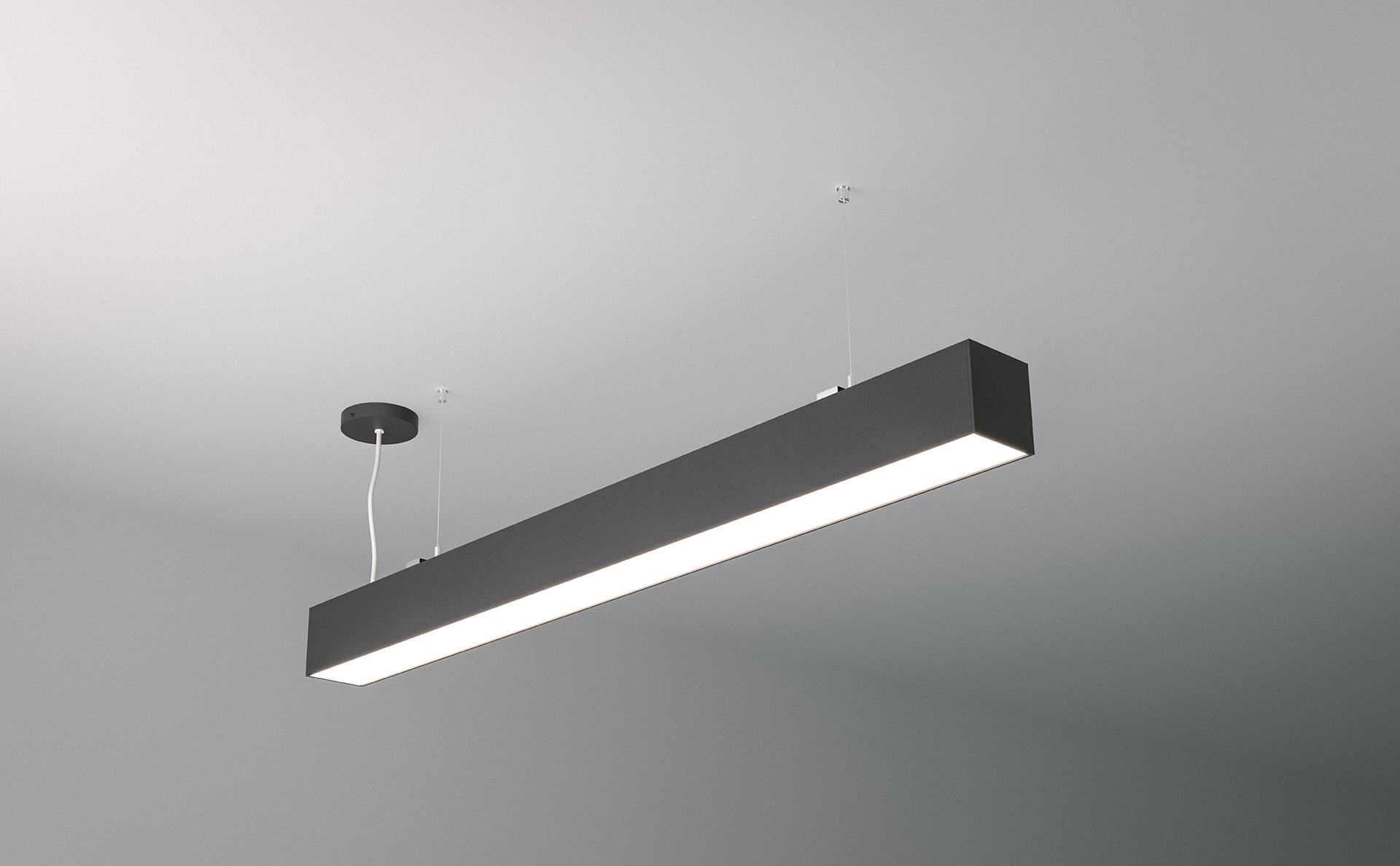

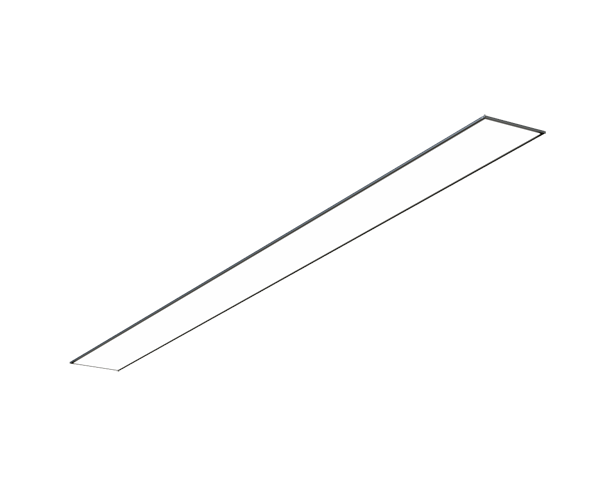

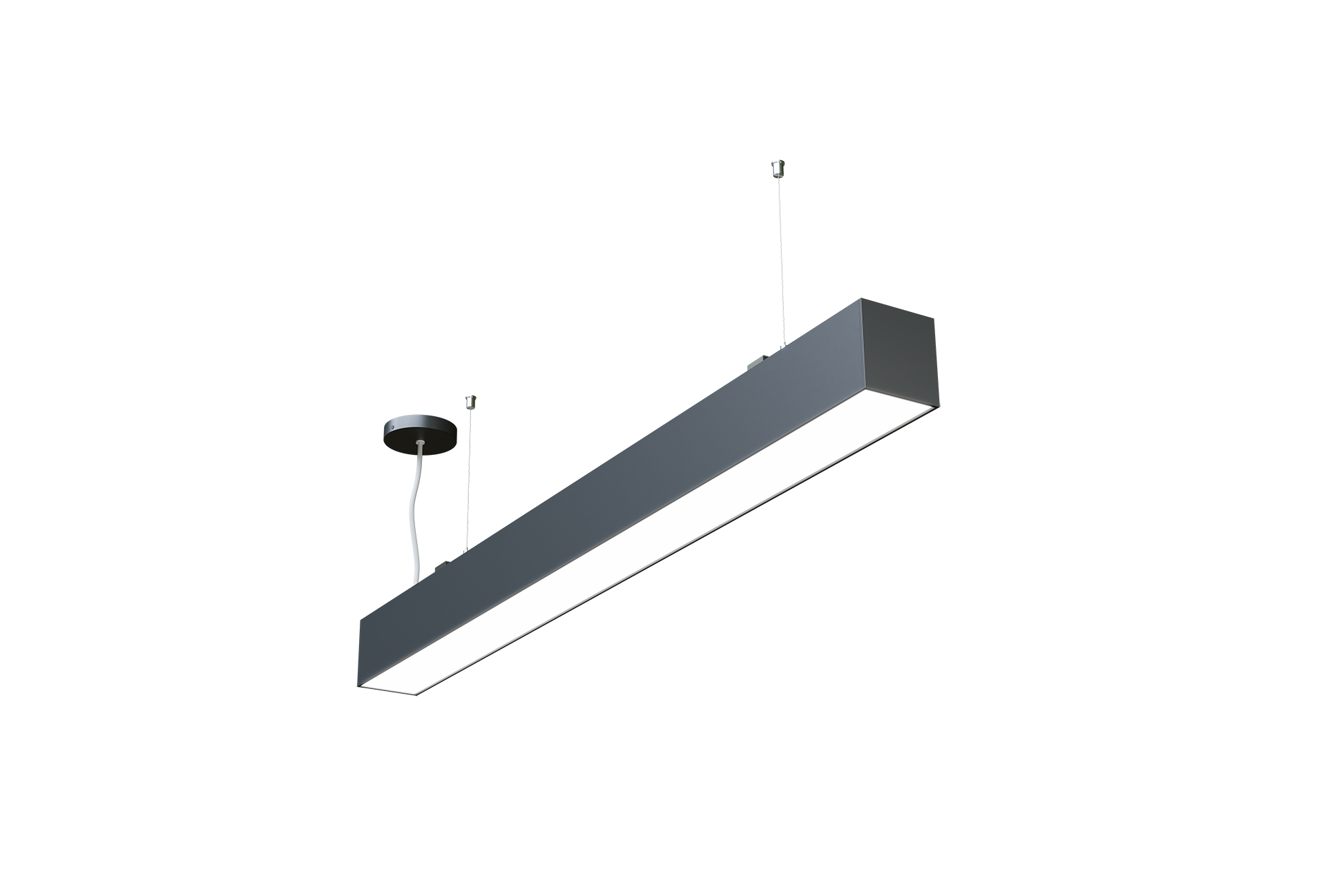

GENERAL: Indoor Architectural LED Fixture. Pendant, Surface Mount, Recessed and Wall Mounted installation.
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)
OPTICAL: Direct & Direct/Indirect Configurations, 110° Beam Angle
CONSTRUCTION: High Grade Aluminum Extrusion 3.7 x 3.9”, Die Cast End Caps, PMMA Diffuser, Intergral Driver, Powder Coat Finish. X, T, L Lit Corners Available for Smooth, Seamless Patterns.
* 5-year warranty, 50,000 hour rated lifespan, IP40 (indoor). Custom size, lumen output and color temperature available.
BX 4 Series Connectors & Accessories
| Item | Description |
|---|---|
| BX-4-L | L shape connector (lit) |
| BX-4-T | T shape connector (lit) |
| BX-4-X | X shape connector (lit) |
| BX-4-C | Continuous linear run connector |
| BX-4-AC | Pendant hangin kit (aircraft cable) |
| BX-4-WM | Wall mounting hardware |
| BX-4-FK | Flange Kit with mud plate for recessed installation |
| BX-4-RG001 | T Grid Ceiling Accessory |
