BX 3S Series
| Download |
|---|
| Cut Sheet |
| IES File ( request via email ) |

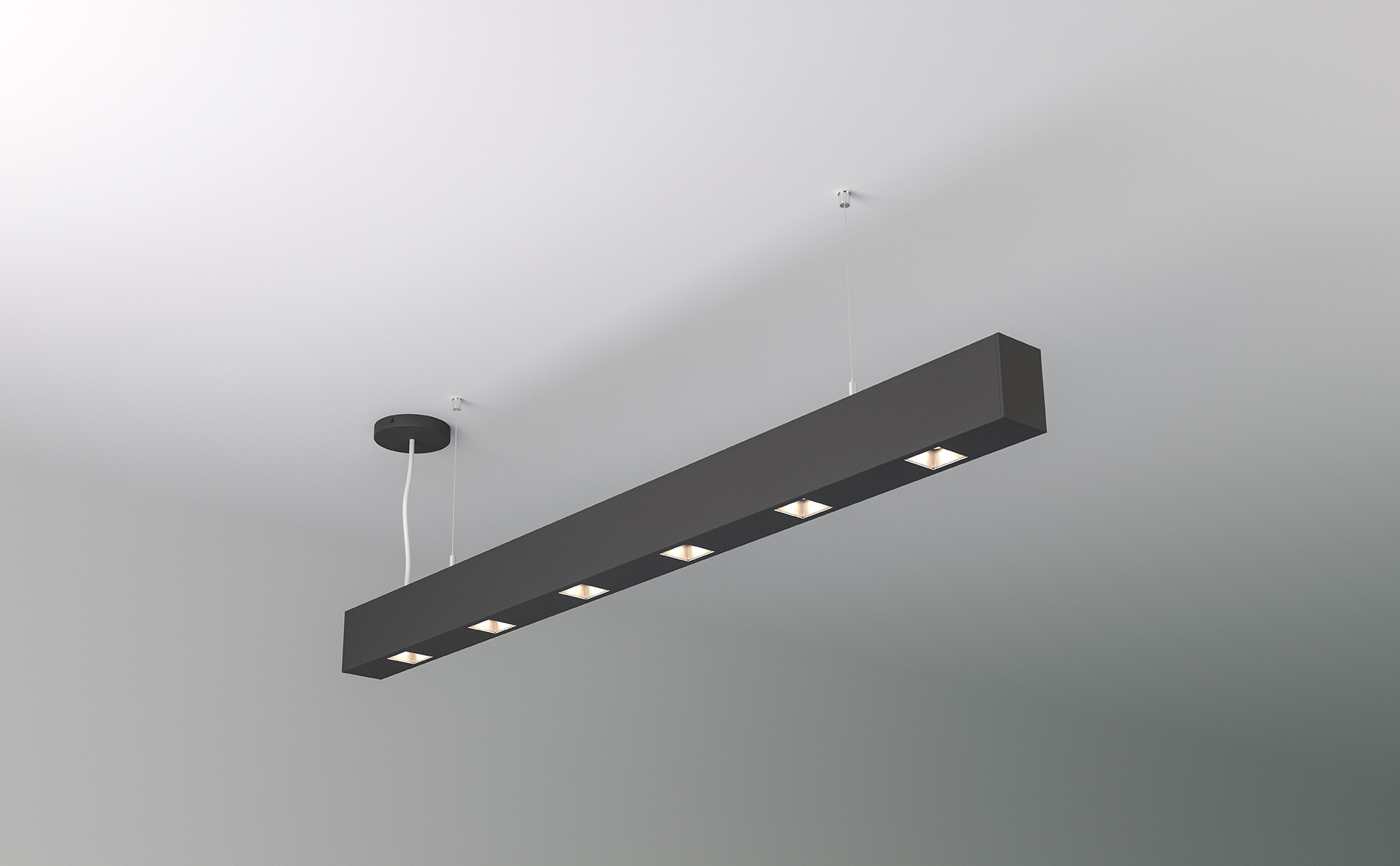

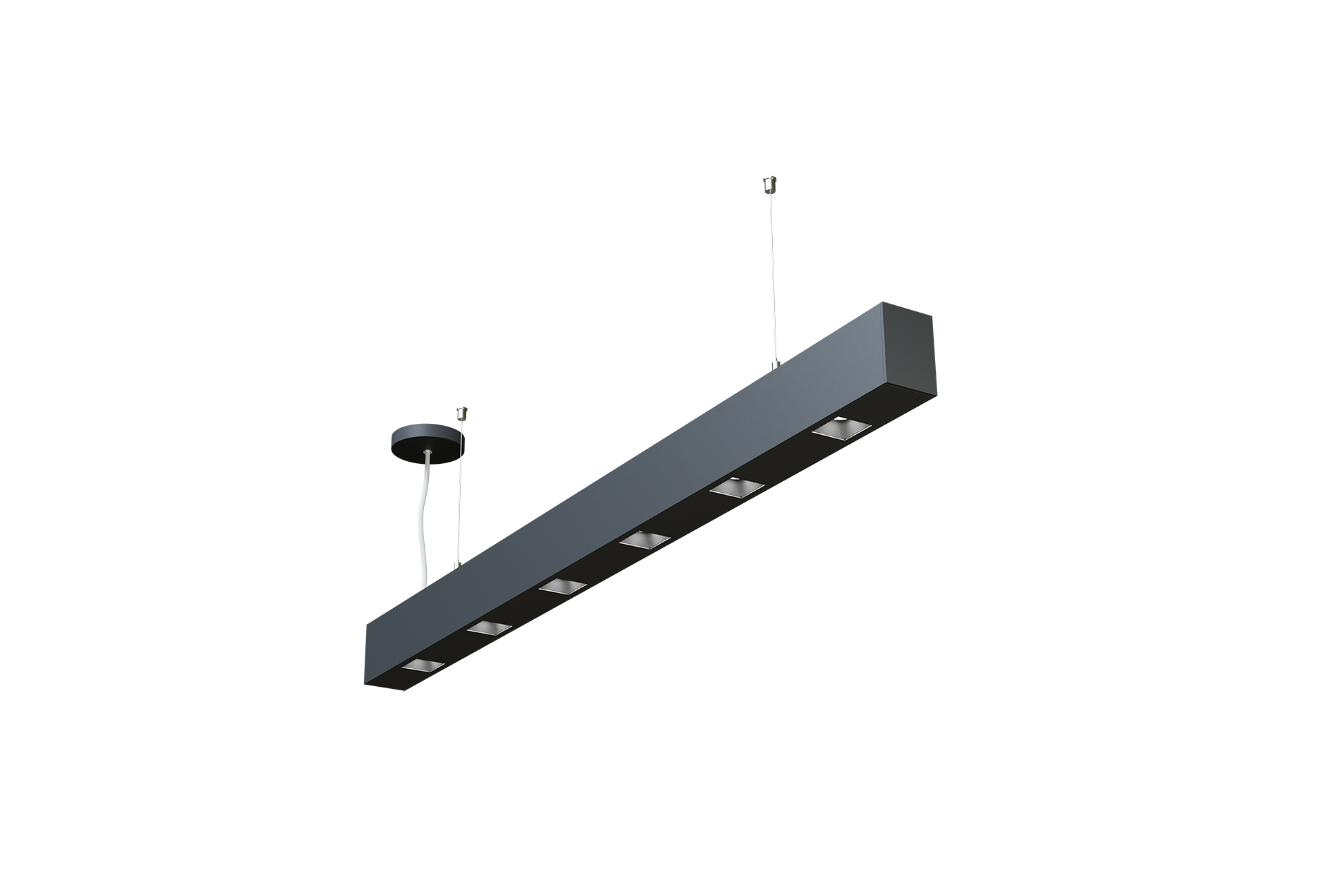

GENERAL: Pendant Indoor Architectural LED Fixture
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW
Available, 80CRI (90 optional)
OPTICAL: Direct Illumination, 15°, 30°, 45° Beam Angle Options
CONSTRUCTION: High Grade Aluminum Extrusion 2.6×3.5” with array of square 2×2” 3W Spotlights, Die Cast End Caps, PMMA Diffuser, Intergral Driver, Powder Coat Finish.
* 5-year warranty, 50,000 hour rated lifespan, IP40 (indoor). Custom size, lumen output and color temperature available.
| Model # | Length | Wattage | Distribution | Lumen Output |
|---|---|---|---|---|
| TechoLED-BX-3S-D-2-15-30-U-M | 2ft | 15W | Direct | 1425lm |
| TechoLED-BX-3S-D-4-18-30-U-M | 4ft | 18W | Direct | 1710lm |
| TechoLED-BX-3S-D-6-24-30-U-M | 6ft | 24W | Direct | 2280lm |
| TechoLED-BX-3S-D-8-30-30-U-M | 8ft | 30W | Direct | 2850lm |
BX 3S Accessories
| Item | Description |
|---|---|
| BX-3S-AC | Pendant hanging kit (aircraft cable) |
