BX 3L Series
| Download |
|---|
| Cut Sheet |
| IES File (request file via email ) |

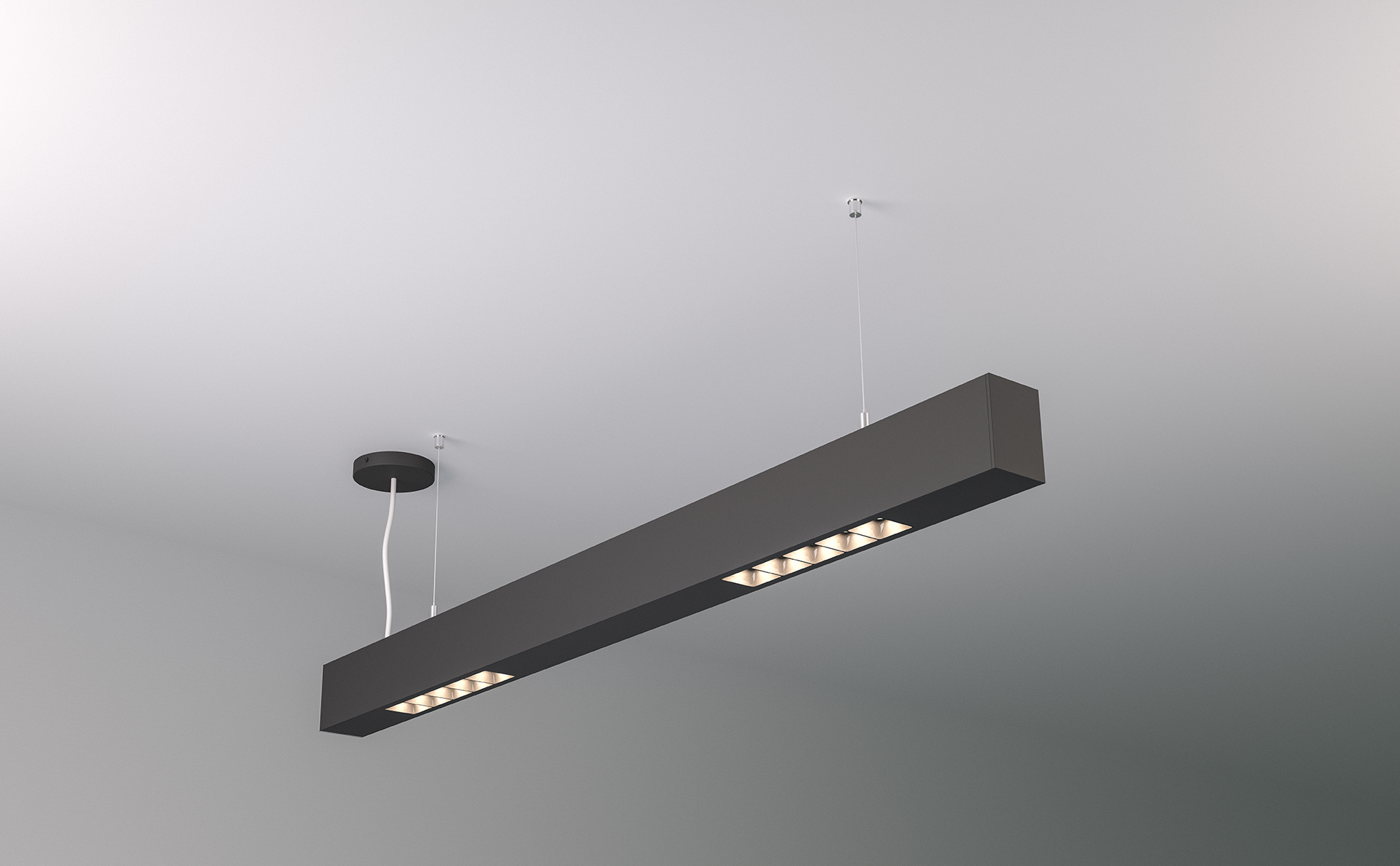

GENERAL: Pendant Indoor Architectural LED Fixture
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW
Available, 80CRI (90 optional)
OPTICAL: Direct Illumination, 15°, 30°, 45° Beam Angle Options
CONSTRUCTION: High Grade Aluminum Extrusion 2.6×3.5” with Arrayed Louvre Diffuser, Die Cast End Caps, PMMA Diffuser, Intergral Driver, Powder Coat Finish.
* 5-year warranty, 50,000 hour rated lifespan, IP40 (indoor). Custom size, lumen output and color temperature available.
| Model # | Length | Wattage | Distribution | Lumen Output |
|---|---|---|---|---|
| TechoLED-BX-3L-D-2-20-30-U-D | 2ft | 20W | Direct | 1900lm |
| TechoLED-BX-3L-D-4-20-30-U-D | 4ft | 20W | Direct | 1900lm |
| TechoLED-BX-3L-D-6-30-30-U-D | 6ft | 30W | Direct | 2850lm |
| TechoLED-BX-3L-D-8-60-30-U-D | 8ft | 60W | Direct | 5700lm |
| Item | Description |
|---|---|
| BX-3L-AC | Pendant hanging kit (aircraft cable) |
