BX 3C Series
| Download |
|---|
| Cut Sheet |
| IES File ( request via email ) |

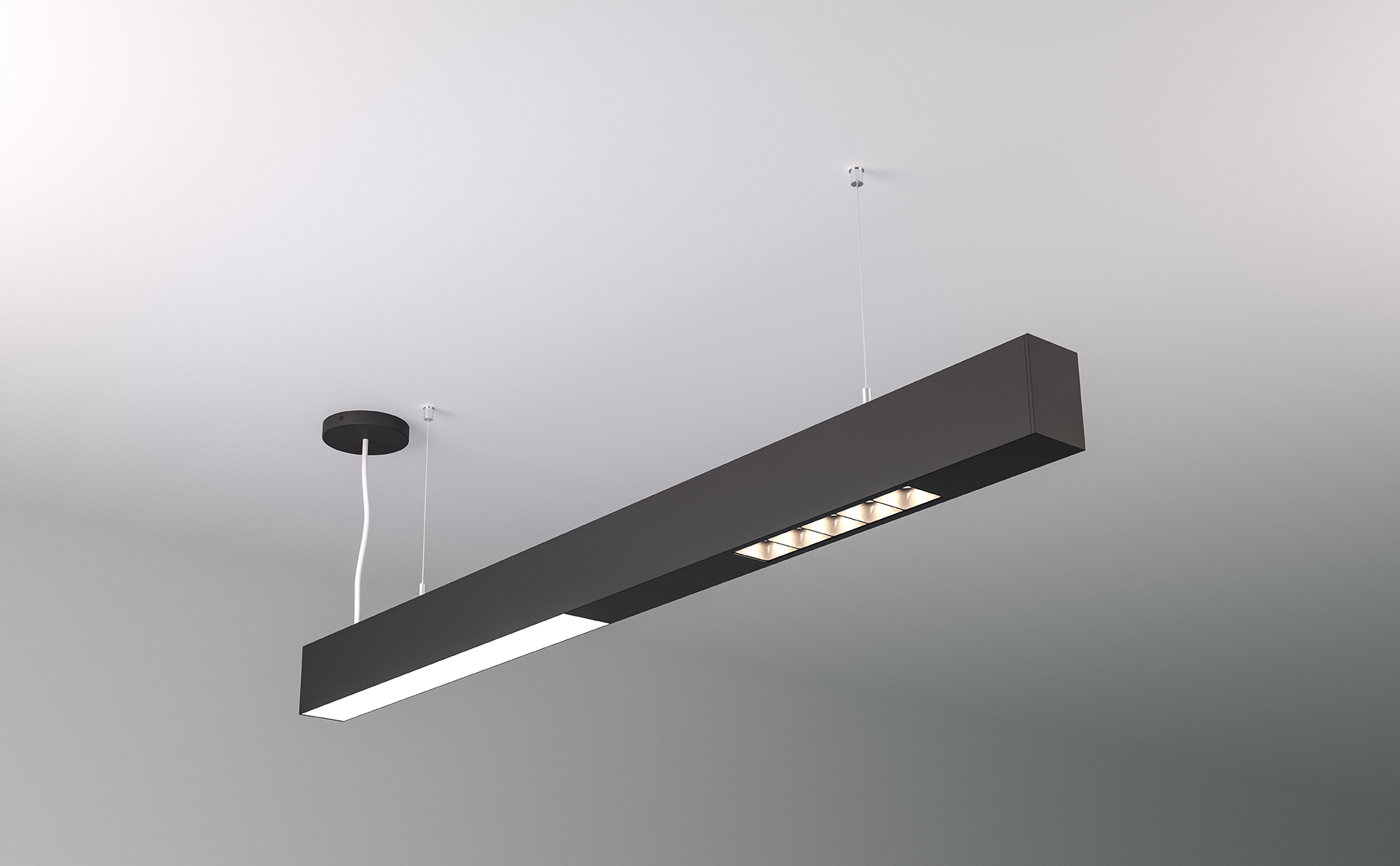

GENERAL: Pendant Indoor Architectural LED Fixture
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)
OPTICAL: Direct Illumination, 15°, 30°, 45° Beam Angle Options
CONSTRUCTION: High Grade Aluminum Extrusion 2.6×3.5″ with Arrayed Louvre/Solid Diffuser Combination, Die Cast end Caps, PMMA Diffuser, Integral Driver. Powder Coat Finish.
* 5-year warranty, 50,000 hour rated lifespan, IP40 (indoor). Custom size, lumen output and color temperature available.
| Model # | Length | Wattage | Distribution | Lumen Output |
|---|---|---|---|---|
| TechoLED-BX-3C-D-4-25-30-U-D | 4ft | 25W | Direct | 2400lm |
| TechoLED-BX-3C-D-6-40-30-U-D | 6ft | 40W | Direct | 3600lm |
| TechoLED-BX-3C-D-8-60-30-U-D | 8ft | 60W | Direct | 5700lm |
| Item | Description |
|---|---|
| BX-3LC-AC | Pendant hanging kit (aircraft cable) |
