BX 2 Series

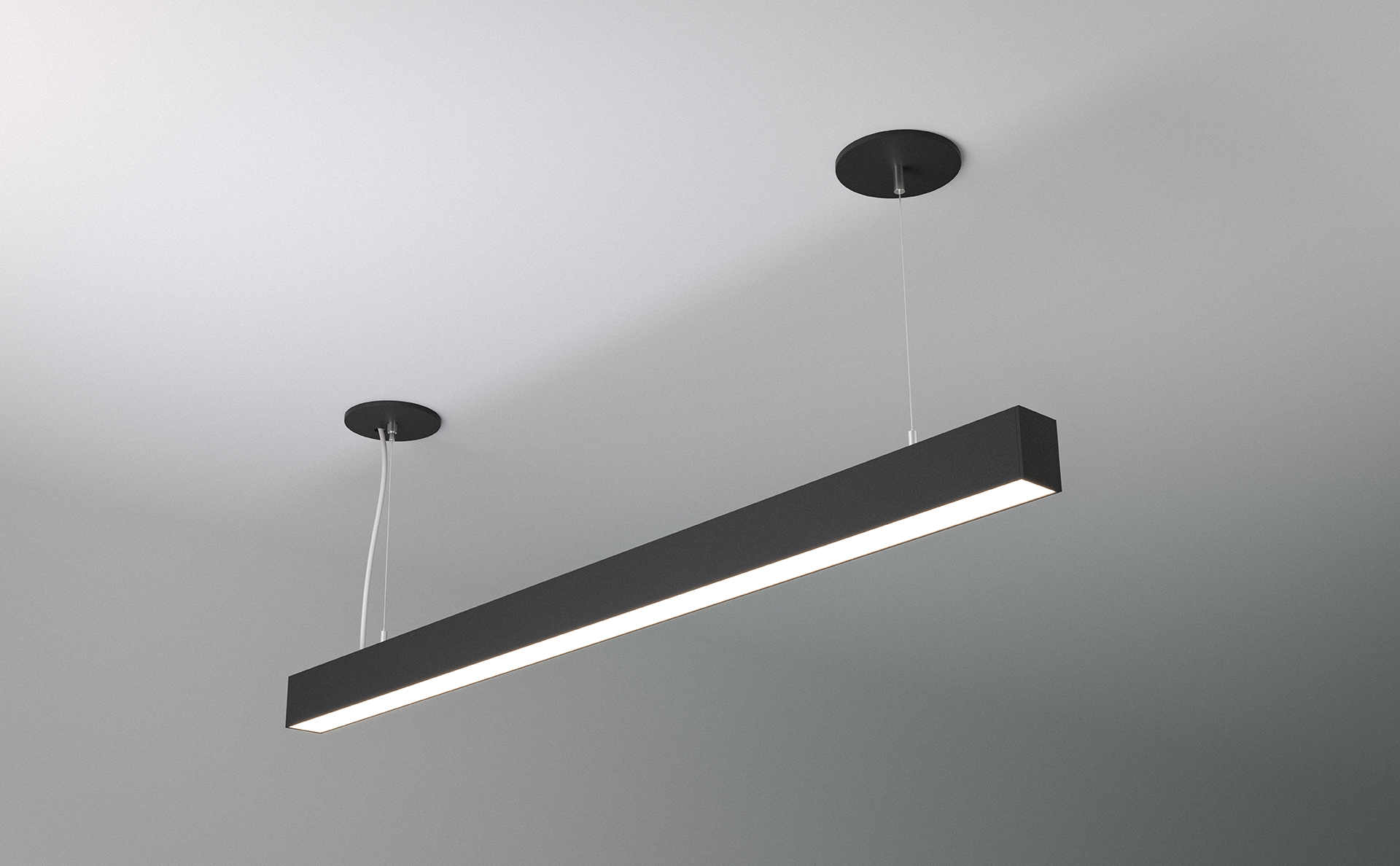

GENERAL: Indoor Architectural LED Fixture. Pendant, Surface Mount, and Wall Mounted installation.
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)
OPTICAL: Direct & Direct/Indirect Configurations, 110° Beam Angle

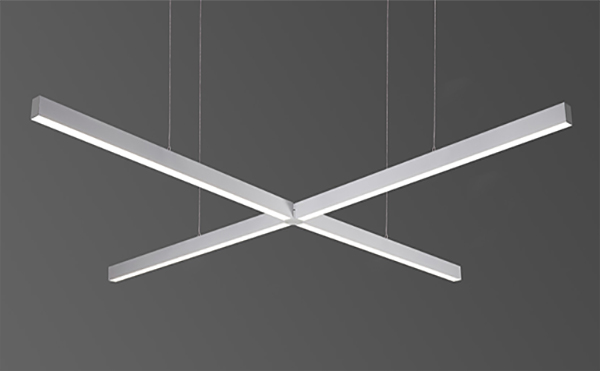

CONSTRUCTION: High Grade Aluminum Extrusion, Die Cast End Caps, PMMA Diffuser, Integral Driver, Powder Coat Finish. X, T, L Lit Corners Available for Smooth, Seamless Patterns, Damp Location.
* 5-year warranty, 50,000 hour rated lifespan. Custom size, lumen output and color temperature available. Grid spacing to avoid gaps is up to the contractor.
| Model # | Length | Wattage | Distribution | Lumen Output |
|---|---|---|---|---|
| TechoLED-BX-2-D-2-18-30-U-D | 2' | 18W | Direct | 1800Lm |
| TechoLED-BX-2-D-4-31-30-U-D | 4' | 31W | Direct | 3100Lm |
| TechoLED-BX-2-D-6-46-30-U-D | 6' | 46W | Direct | 4600Lm |
| TechoLED-BX-2-D-8-61-30-U-D | 8' | 61W | Direct | 6100Lm |
| TechoLED-BX-2-DI-2-22-30-U-D | 2' | 22W | Direct/Indirect | 1800Lm down/400Lm up |
| TechoLED-BX-2-DI-4-44-30-U-D | 4' | 44W | Direct/Indirect | 3100Lm down/1300Lm up |
| TechoLED-BX-2-DI-6-66-30-U-D | 6' | 66W | Direct/Indirect | 4600Lm down/2000Lm up |
| TechoLED-BX-2-DI-8-89-30-U-D | 8' | 89W | Direct/Indirect | 6100Lm down/2800Lm up |
BX 2 Series Accessories and Connectors
| Item | Description |
|---|---|
| BX-2-L | L shape connector (lit) |
| BX-2-T | T shape connector (lit) |
| BX-2-X | X shape connector (lit) |
| BX-2-C | Continuous linear run connector |
| BX-2-AC | Pendant hanging kit (aircraft cable) |
| BX-2-WM | Wall mounting hardware |
| BX-2-RG001 | T Grid Ceiling Accessory |
